Description

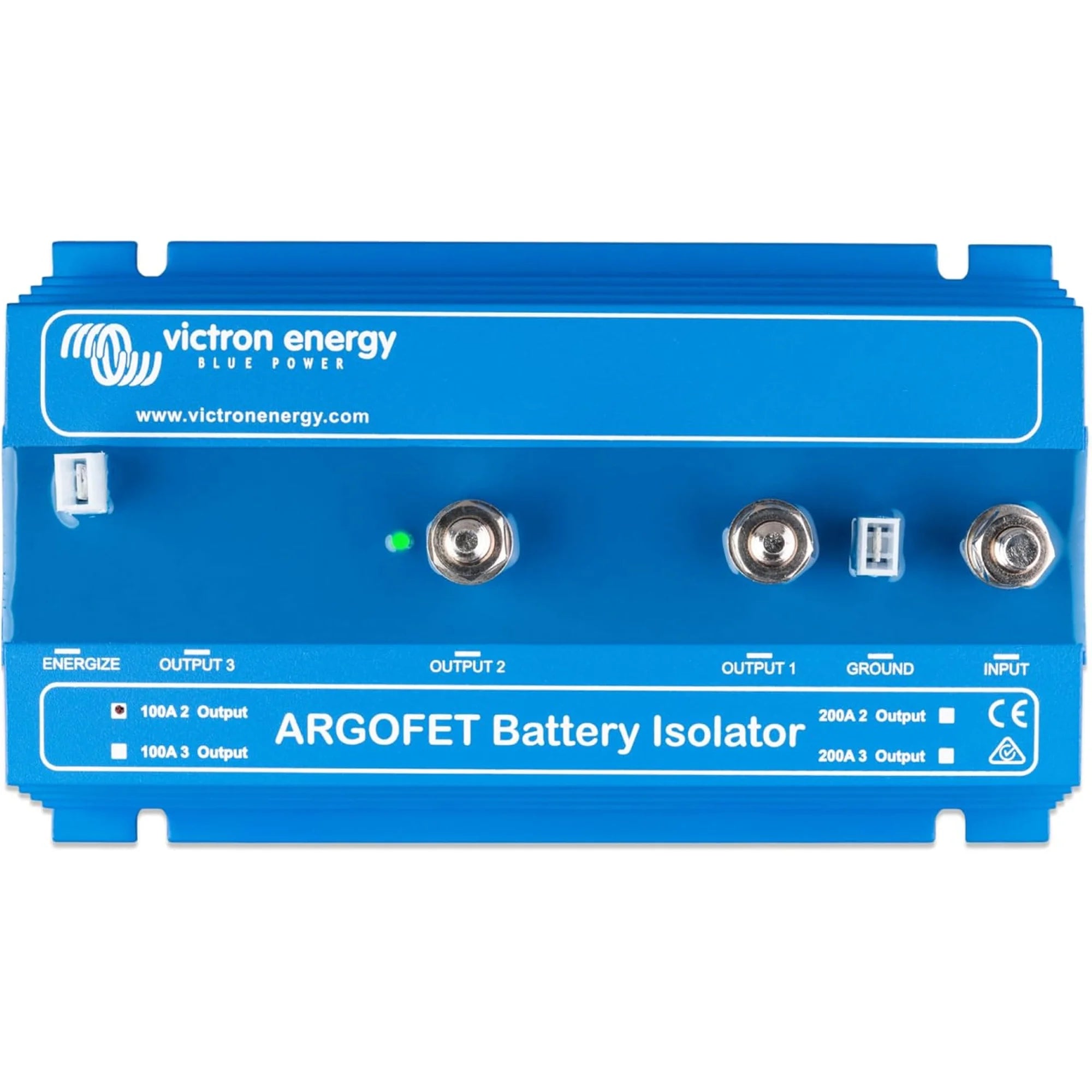

xVictron Argofet 100-2 Two Battery FET Isolator 100A
The Victron Argofet 100-2 is a FET-based battery isolator designed to charge two separate battery banks simultaneously from a single alternator or charger, with no voltage drop across the isolator. It is suited to marine, vehicle and off-grid applications where independent battery banks must be kept isolated from one another during discharge while still being charged together.
Key Features
- Charges two independent battery banks from one input source without cross-discharge between banks.
- FET (Field Effect Transistor) technology eliminates the 0.6V to 0.7V voltage drop associated with traditional diode-based isolators, ensuring batteries receive the full charge voltage.
- 100A continuous current rating across both output banks.
- Automatic operation with no manual switching required during normal use.
- Compact and lightweight at 0.91 kg, suitable for installation in confined spaces.
- Compatible with standard alternators and battery chargers without requiring alternator modification.
Product Overview
Traditional diode isolators introduce a voltage drop of around 0.6V to 0.7V between the charging source and the battery. Over a charge cycle, this means batteries consistently receive less than the target charge voltage, leading to chronic undercharging. The Argofet 100-2 uses MOSFET technology to eliminate this drop, so the voltage at the battery terminals matches the output of the alternator or charger directly.
The isolator works by allowing current to flow freely from the input to both battery banks during charging, while blocking reverse current flow between the banks. If one battery bank is heavily discharged, it cannot draw down the other bank through the isolator. This makes it particularly useful in dual-bank setups where a starter battery and a service or leisure battery must remain independent during use but be charged from the same source.
The unit requires no external control signal or relay logic for basic operation. It is a passive device in normal use, which keeps installation straightforward and reduces potential points of failure.
Specifications
- SKU: ARG100201020
- Number of battery outputs: 2
- Maximum continuous current: 100A
- Technology: FET (MOSFET) isolator
- Weight: 0.91 kg
- GTIN: 8719076019015
Applications
- Marine vessels with separate starter and service battery banks charged from a single alternator.
- Campervans, motorhomes and HGVs requiring split-charge functionality without voltage loss.
- Off-grid systems where a charger must feed two isolated battery banks.
- Commercial vehicles with auxiliary power requirements independent of the starter battery.
What Is Included
- 1x Victron Argofet 100-2 FET battery isolator
Installation Notes
Installation should be carried out by a qualified electrician or competent marine/vehicle electrician familiar with high-current DC systems. Ensure the input and output cabling is rated for at least 100A continuous and that appropriate fusing is fitted on the input side close to the source. The unit should be mounted in a ventilated location as it will generate some heat under sustained high-current operation. Verify compatibility with your alternator output voltage and battery chemistry before installation.
