Description

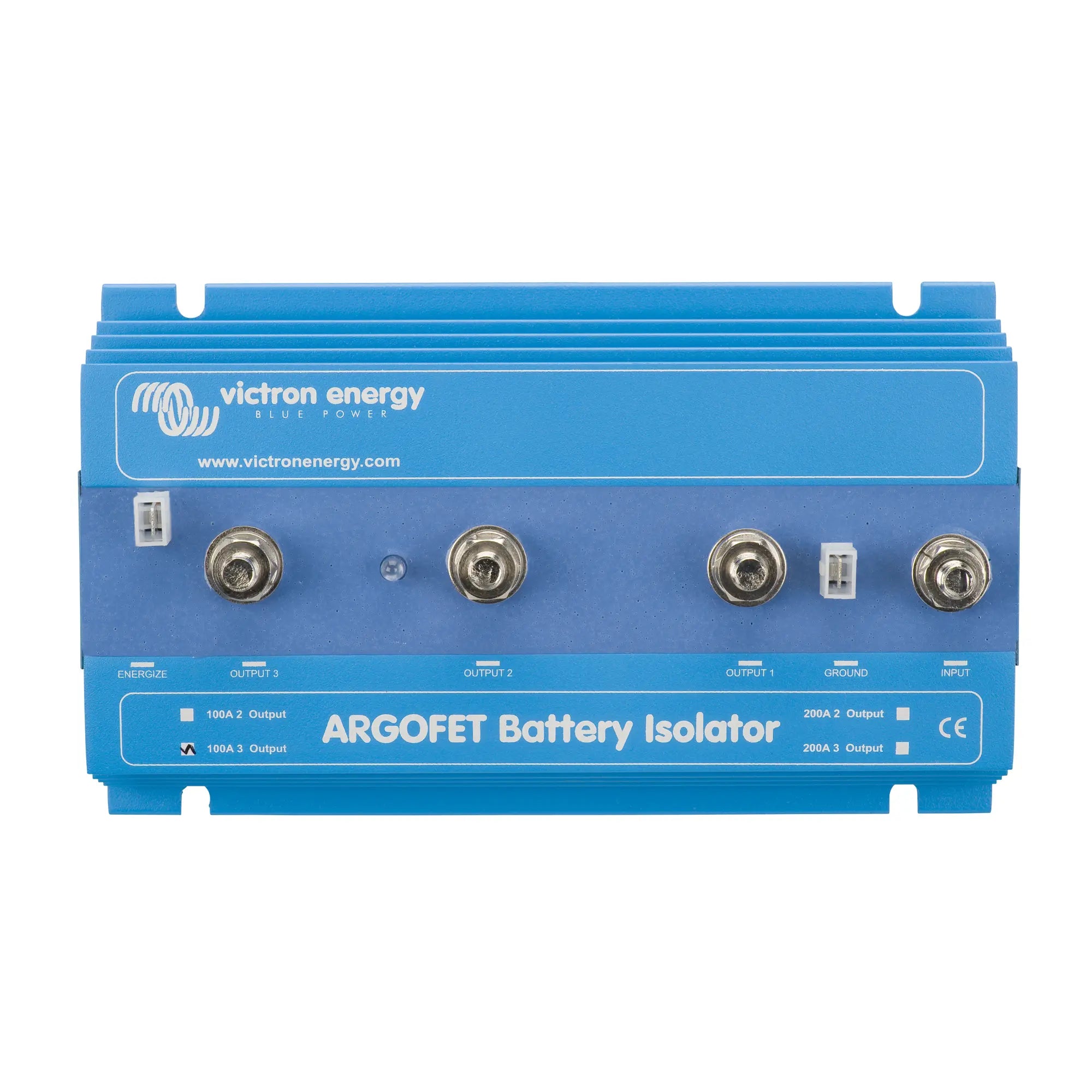

xVictron Argofet 100-3 Battery Isolator, Three Batteries, 100A
The Victron Argofet 100-3 is a FET-based battery isolator designed to charge up to three separate battery banks simultaneously from a single alternator or charger, with no voltage drop penalty. It is suited to marine, vehicle and off-grid installations where independent battery banks must be kept isolated from one another while sharing a common charge source.
Key Features
- Charges three independent battery banks from a single input, with full isolation between banks so a discharged bank cannot draw from another.
- FET (Field Effect Transistor) technology eliminates the 0.6V to 0.7V voltage drop associated with traditional diode-based isolators, preserving full charge voltage to each bank.
- 100A continuous current rating across the combined output.
- Alternator protection circuit prevents voltage spikes if the unit is disconnected under load.
- Compact, robust aluminium housing suitable for installation in engine bays and confined spaces.
- Compatible with standard 12V and 24V systems.
- SKU: ARG100301020 | Weight: 1.462 kg
Product Overview
Traditional diode isolators introduce a voltage drop of around 0.6V to 0.7V on every charge path. Over a long charge cycle, this means battery banks never reach their full charge voltage, which shortens battery life and reduces usable capacity. The Argofet 100-3 uses MOSFET technology to eliminate this drop, so each connected bank receives the full output voltage from the alternator or charger.
The unit supports three output banks from a single input, making it well suited to installations with a starter battery, a domestic or auxiliary bank, and a third bank for a bow thruster, generator start, or additional load. Each output is fully isolated, meaning a deeply discharged bank cannot pull down the voltage on the others. The built-in alternator protection circuit is an important practical detail: disconnecting a battery from a running alternator can cause a damaging voltage spike, and this circuit suppresses that risk.
At 100A, the Argofet 100-3 covers the majority of single-alternator marine and vehicle installations. The aluminium housing dissipates heat effectively and is compact enough to fit in tight engine compartments. No external cooling fan is required under normal operating conditions.
Specifications
- Model: Argofet 100-3
- SKU: ARG100301020
- Number of battery outputs: 3
- Maximum continuous current: 100A
- Compatible system voltages: 12V and 24V
- Technology: MOSFET FET isolator (near-zero voltage drop)
- Weight: 1.462 kg
- GTIN: 8719076019053
Applications
- Marine vessels with separate starter, domestic and thruster battery banks charged from a single alternator.
- Motorhomes and campervans requiring isolation between the vehicle starter battery and one or more leisure banks.
- Off-grid vehicles or plant equipment with multiple battery banks serving different loads.
- Any installation where a single charger or alternator must feed three banks without cross-discharge between them.
What Is Included
- 1 x Victron Argofet 100-3 FET battery isolator
Installation Notes
Installation should be carried out by a qualified auto-electrician or marine electrician familiar with high-current DC systems. Ensure all connections are correctly torqued and that appropriate fusing is fitted on each output cable close to the battery terminals. The unit must be mounted to a surface that allows adequate heat dissipation. Do not disconnect battery banks from the unit while the alternator is running, even though the built-in protection circuit reduces spike risk. Verify system voltage compatibility (12V or 24V) before installation.
