Description

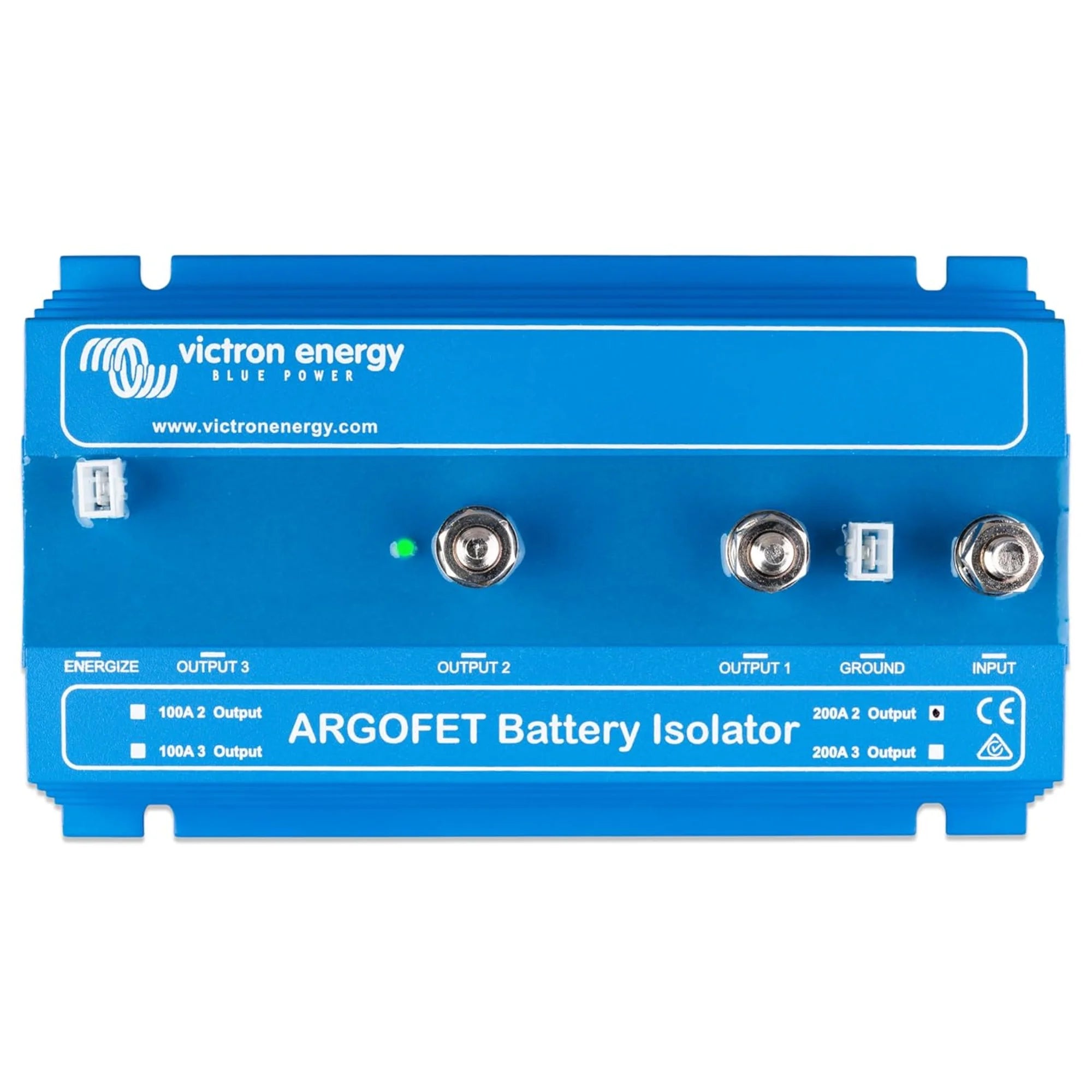

xVictron Argofet 200-2 Two Battery FET Isolator 200A
The Victron Argofet 200-2 is a FET-based battery isolator designed to charge two separate battery banks simultaneously from a single alternator or charger, with no voltage drop across the isolator. It is suited to marine, vehicle and off-grid applications where independent battery banks must be kept isolated from one another during discharge while still being charged from a common source.
Key Features
- 200A continuous current rating supports high-capacity alternators and charging systems.
- FET (Field Effect Transistor) technology eliminates the 0.6V to 0.7V voltage drop associated with traditional diode-based isolators, ensuring batteries receive the full charge voltage.
- Charges two independent battery banks from a single input source without cross-discharge between banks.
- Negligible power loss compared to diode isolators, reducing heat generation and improving overall system efficiency.
- Compact and robust aluminium housing suitable for installation in engine bays and confined spaces.
- Compatible with standard alternators and battery chargers without requiring modifications to the charging source.
Product Overview
Traditional diode-based battery isolators introduce a voltage drop of around 0.6V to 0.7V between the charging source and the battery. In practice, this means batteries never receive the full charge voltage, leading to chronic undercharging over time. The Argofet 200-2 uses MOSFET technology to eliminate this drop, so the voltage at each battery terminal matches the output of the alternator or charger directly.
The isolator works by allowing current to flow freely from the input to each battery bank during charging, while blocking reverse current flow between the two banks. This means a discharged starter battery cannot drain the leisure or auxiliary bank, and vice versa. The 200A rating makes it appropriate for systems with high-output alternators or where multiple large batteries are being charged simultaneously.
The unit requires no external control wiring in most standard installations. It is a passive device that responds automatically to the presence of a charging voltage, making integration straightforward for experienced installers.
Specifications
- SKU: ARG200201020R
- Maximum continuous current: 200A
- Number of battery outputs: 2
- Technology: FET (MOSFET) isolator
- Voltage drop: Negligible (no diode drop)
- Weight: 1.3 kg
- GTIN: 8719076019145
Applications
- Marine vessels with separate starter and domestic battery banks charged from a single alternator.
- Motorhomes and campervans requiring isolation between the vehicle starter battery and the habitation bank.
- Off-grid vehicles and 4x4 expedition builds with dual battery setups.
- Commercial vehicles where auxiliary equipment batteries must be kept independent from the engine start battery.
- Any system where a single alternator or charger must feed two battery banks without cross-discharge risk.
What Is Included
- 1 x Victron Argofet 200-2 FET battery isolator
Installation Notes
Installation should be carried out by a qualified electrician or experienced marine/vehicle electrical installer. Ensure all connections are correctly rated for 200A continuous current and that appropriate fusing is fitted on the input cable as close to the source as practicable. The unit should be mounted in a ventilated location away from direct water ingress. Although the Argofet 200-2 produces significantly less heat than a diode isolator, adequate airflow around the unit is still recommended. Verify compatibility with your alternator output and battery chemistry before installation.
