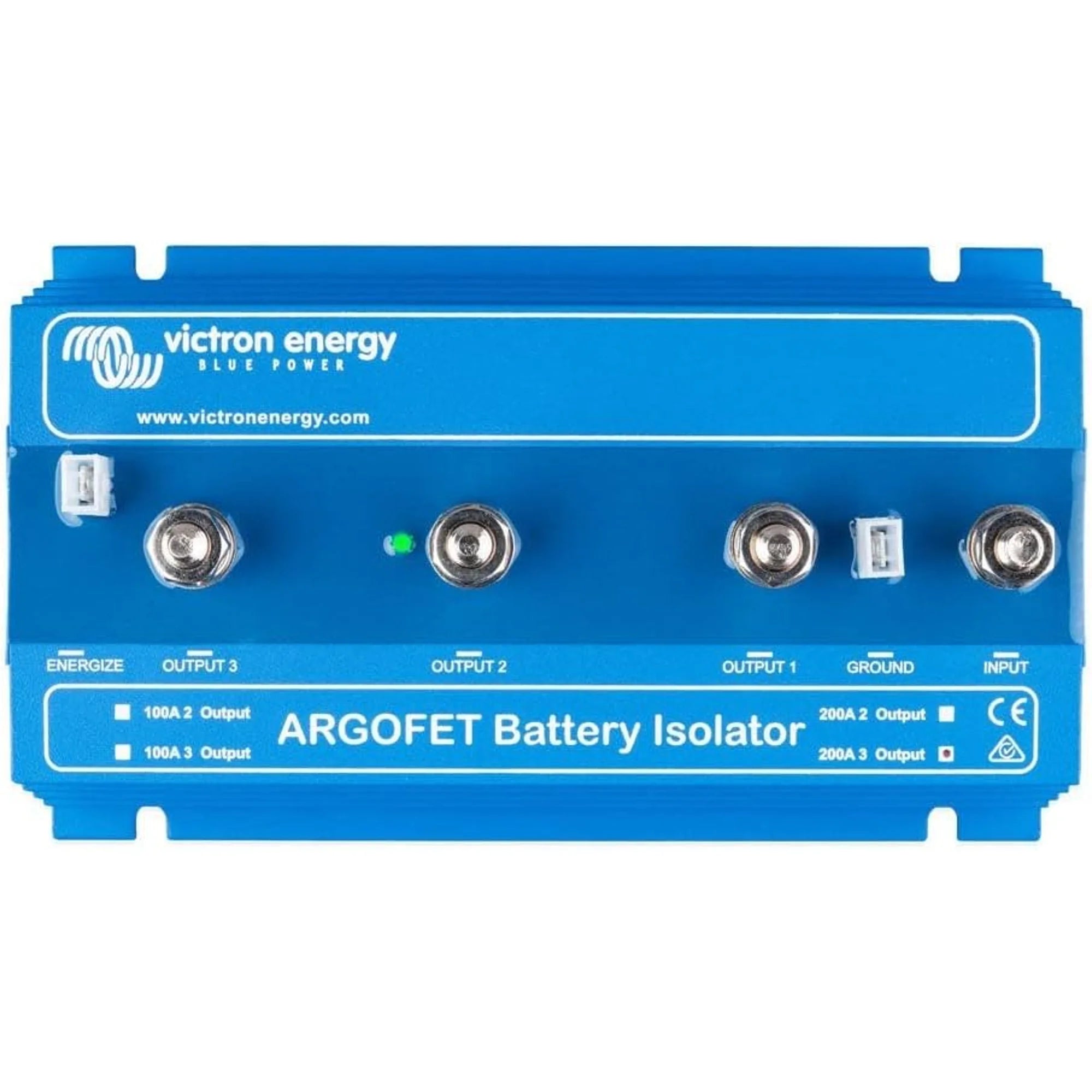

xVictron Argofet 200-3 Battery Isolator, Three Batteries, 200A
The Victron Argofet 200-3 is a FET-based battery isolator designed to charge up to three separate battery banks simultaneously from a single alternator or charger, with no voltage drop penalty. It is suited to marine, vehicle and off-grid installations where independent battery banks must be charged in parallel without risk of cross-discharge.
Key Features
- Charges three independent battery banks from a single input source at up to 200A continuous current.
- MOSFET technology eliminates the 0.6V to 0.7V voltage drop associated with conventional diode isolators, so batteries receive the full alternator or charger output voltage.
- Integrated voltage equalisation circuit ensures the alternator regulator senses the correct battery voltage, preventing undercharging.
- Compact, aluminium heatsink construction dissipates heat without requiring a fan or active cooling.
- Each output is fully isolated, preventing discharge from one battery bank to another when the input source is disconnected.
- Suitable for 12V, 24V and 48V battery systems.
- Weight: 1.37 kg. Suitable for permanent, fixed installation.
Product Overview
Conventional diode-based battery isolators introduce a voltage drop of around 0.6V to 0.7V on every output. In practice, this means batteries are chronically undercharged unless the alternator regulator is manually adjusted. The Argofet 200-3 uses MOSFET field-effect transistors instead of diodes. The voltage drop across a MOSFET in conduction is negligible, so the full charge voltage reaches each battery bank without modification to the charging source.
The unit includes a dedicated voltage sensing wire that feeds the actual battery voltage back to the alternator regulator. This is important in systems where the regulator would otherwise sense voltage at the alternator output rather than at the battery terminals. Without this correction, even a low-drop isolator can result in inaccurate charge termination. The Argofet handles this automatically, making it straightforward to integrate into existing alternator charging circuits.
With a 200A continuous rating across three outputs, the Argofet 200-3 covers the majority of marine and commercial vehicle applications. The aluminium body acts as a passive heatsink and should be mounted on a flat, thermally conductive surface for best performance at high sustained currents.
Technical Specifications
| Parameter | Value |
| SKU | ARG200301020R |
| Maximum Input Current | 200A |
| Number of Outputs | 3 |
| Isolator Type | MOSFET (FET) |
| Compatible Voltages | 12V, 24V, 48V |
| Weight | 1.37 kg |
| GTIN | 8719076019169 |
Applications
- Marine vessels with separate starter, domestic and bow thruster battery banks.
- Motorhomes and campervans requiring isolation between the vehicle starter battery and one or more leisure battery banks.
- Commercial vehicles with auxiliary battery systems for refrigeration, tail lifts or other equipment.
- Off-grid cabins or vehicles where a single alternator or DC charger must serve multiple battery banks independently.
- Retrofit installations replacing diode isolators where voltage drop has caused persistent undercharging.
What Is Included
- Victron Argofet 200-3 FET battery isolator unit
Installation Notes
The Argofet 200-3 should be installed by a qualified electrician or marine electrical engineer familiar with high-current DC systems. Mount the unit on a clean, flat metal surface to ensure adequate heat dissipation at sustained high currents. Connect the voltage sensing wire to the alternator regulator as described in the Victron installation guide to ensure correct charge voltage regulation. All cabling must be rated for the full 200A load and protected with appropriately sized fusing at the source. Ensure the installation complies with any applicable marine or vehicle wiring standards for your application.
