Description

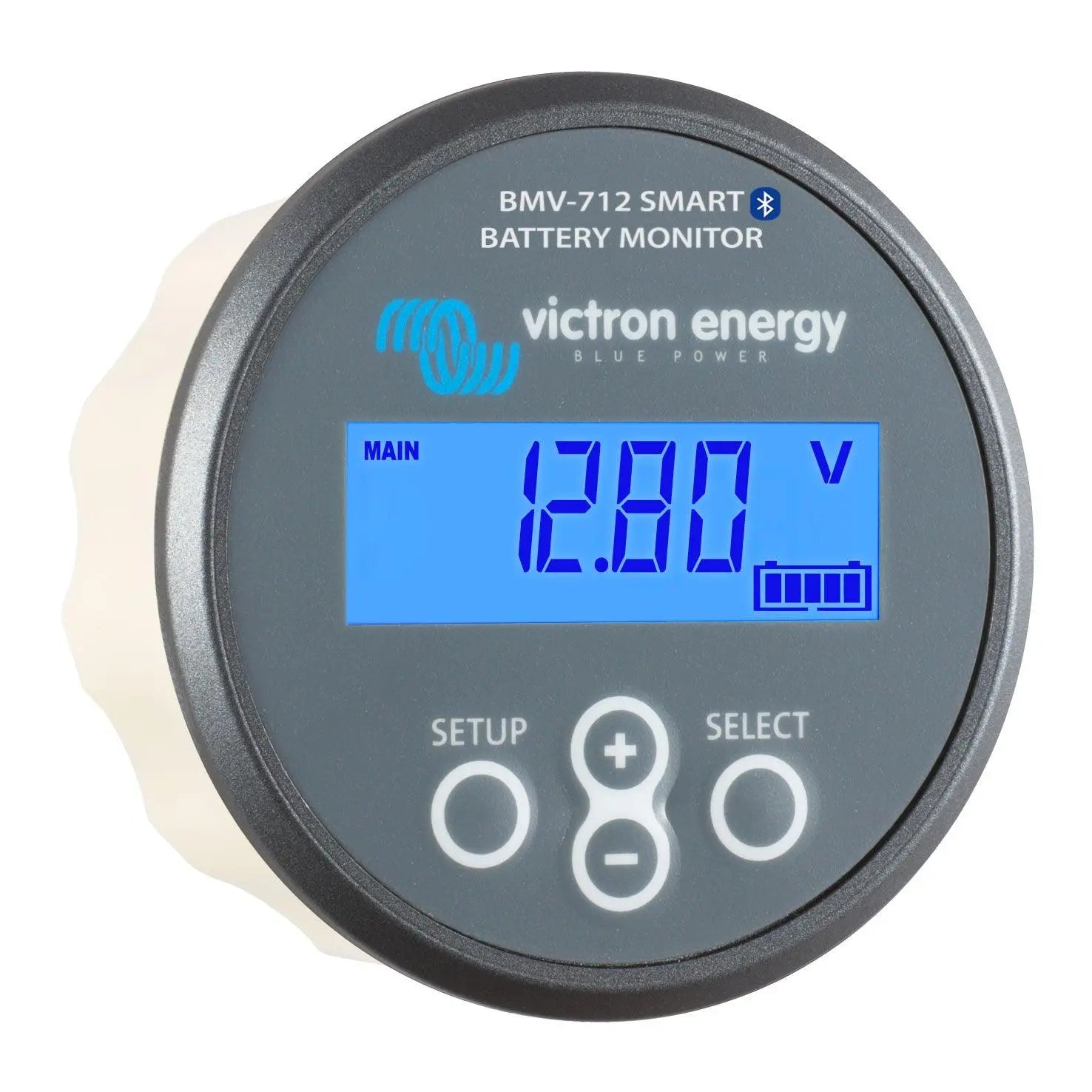

xThe high-tech Smart BMV712 battery monitor comes with Bluetooth built-in and is ready for your IoT (Internet of Things) project. Wireless communication between products will simplify your system installation, enhance performance and will allow you to monitor your system at a glance.
Bluetooth inside
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
Download the Victron Bluetooth app
Use a smartphone or other Bluetooth-enabled device to
- customize settings,
- monitor all important data on a single screen,
- View historical data, and to
- update the software when new features become available.
Easy to install
All electrical connections are to the quick-connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.
Also included is a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.
Option - Battery Temperature Sensor
This temperature sensor can be used with the auxiliary port of the Victron BMV-702 or BMV-712 to monitor battery temperature. Overheating a battery can drastically shorten it's life, and monitoring your battery's temperature can let you take action to extend it's useful lifespan. It can also alert you to equipment failures, or the failure of the battery itself. An audible alarm can be activated when the temperature reaches a threshold that you set.
Midpoint voltage monitoring
One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information.
We recommend our Battery Balancer (BMS012201000) to maximize the service life of series-connected lead-acid batteries.
Very low current draw from the battery
Current consumption: 0,7Ah per month (1mA) @12V and 0,6Ah per month (0,8mA) @ 24V
Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown.
After shutdown due to low cell voltage, the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery. A residual current of 10mA for example may damage a 200Ah battery if the system is left in a discharged state during more than 8 days.
Bi-stable alarm relay
Prevents increased current draw in case of an alarm.
The BMV-702 and BMV-712 support either a secondary voltage input or the temperature sensor, but not both.
All Victron products come with a 5 year worldwide warranty, supported by an international network of service points and dealers.
Specifications
x- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non-critical loads or to run a generator when needed 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10.000 Amps
- VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health - Wide input voltage range: 6,5 – 70V
- High current measurement resolution: 10 mA (0,01A)
- Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings
