Description

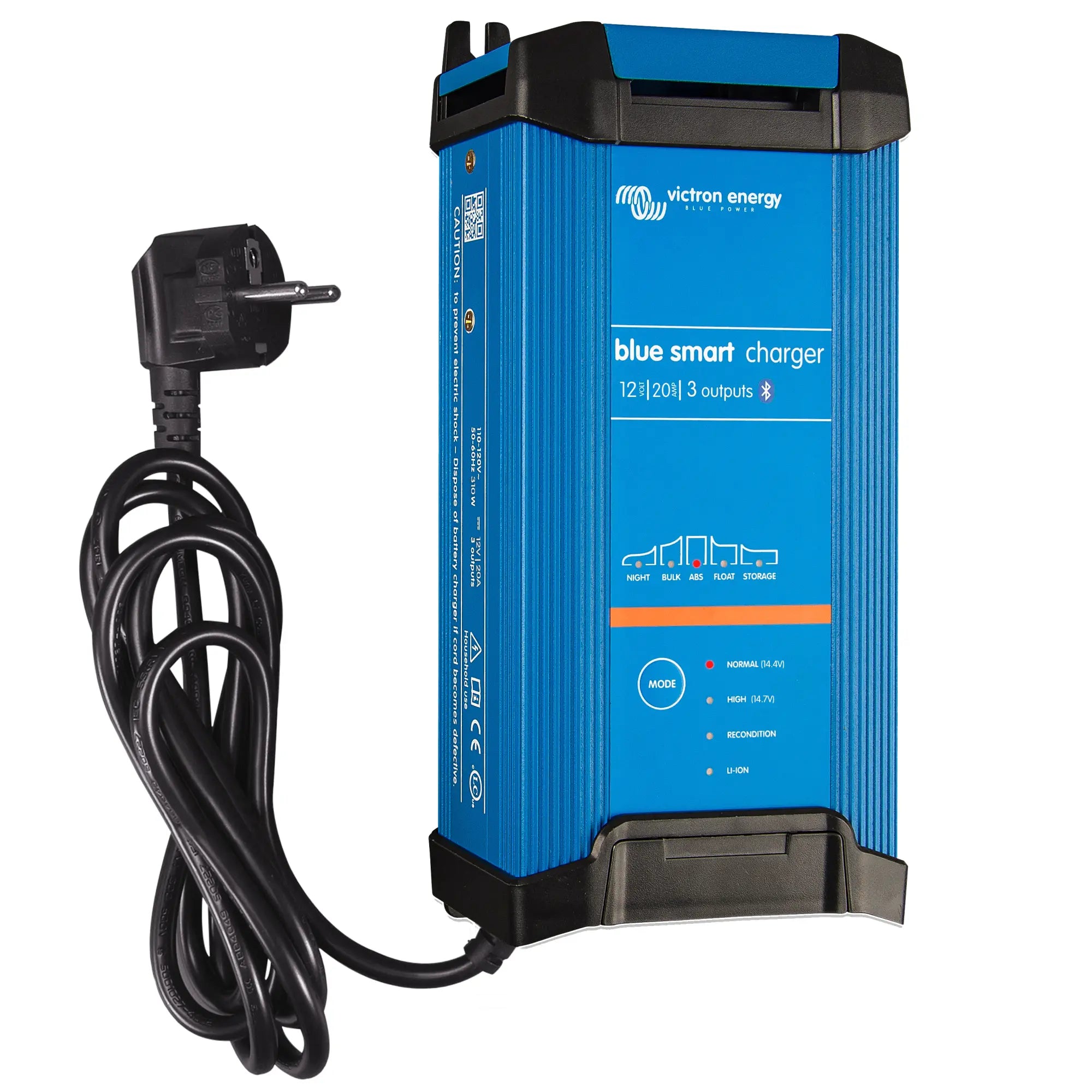

xVictron Blue Smart IP22 Charger 12V 20A (3 Outputs) 230V CEE 7/7
The Victron Blue Smart IP22 12/20(3) is a mains-powered battery charger delivering 20A across three simultaneous outputs on a 12V system. It is aimed at professional installers, marine and vehicle outfitters, and anyone managing multiple battery banks from a single charger. Built-in Bluetooth allows full monitoring and configuration without a separate interface.
Key Features
- 20A charge current across a 12V system with three independent output connections, allowing up to three battery banks to be charged simultaneously.
- Bluetooth built in as standard, with full control and monitoring via the free VictronConnect app on iOS and Android.
- IP22 ingress protection rating, suitable for use in sheltered outdoor locations, engine bays and marine environments where moisture is present.
- Adaptive seven-stage charge algorithm covering bulk, absorption, float, storage, equalisation and recondition phases.
- Compatible with lead-acid battery types including GEL, AGM, AGM Spiral, enhanced flooded (EFB) and conventional flooded batteries, as well as lithium iron phosphate (LiFePO4).
- CEE 7/7 Schuko mains plug fitted as standard, compatible with standard European and UK Schuko sockets.
- Storage mode automatically reduces float voltage after 24 hours to minimise battery degradation during long-term storage.
- Temperature-compensated charging via optional external temperature sensor input.
Product Overview
The Blue Smart IP22 12/20(3) connects to a standard 230V mains supply and delivers up to 20A of charge current. The three-output version distributes that current across up to three battery banks, making it well suited to installations where a vehicle, boat or off-grid setup carries separate service, starter and auxiliary batteries. Each output shares the total available current, so the charger manages distribution automatically rather than requiring separate units for each bank.
Bluetooth connectivity is integrated directly into the charger. Using the VictronConnect app, an installer or end user can view real-time charge status, adjust charge algorithm settings, select battery type and capacity, and review historical data. No additional hardware or dongles are required. This makes commissioning and fault-finding considerably more straightforward on installed systems where the charger may not be easily accessible.
The adaptive charge algorithm adjusts absorption time based on the actual condition of the battery rather than running a fixed timed cycle. This means a deeply discharged battery receives a full recovery charge, while a battery in good condition moves through to float more quickly. The recondition phase can be used periodically to recover stratified or sulphated flooded lead-acid batteries.
Specifications
- SKU: BPC122044002
- System voltage: 12V
- Charge current: 20A
- Number of outputs: 3
- Input voltage: 230V AC
- Mains plug: CEE 7/7 (Schuko)
- Ingress protection: IP22
- Weight: 1.3 kg
- GTIN: 8719076037446
Applications
- Marine installations with separate starter, service and bow thruster battery banks.
- Motorhomes and campervans with multiple battery systems requiring simultaneous charging from shore power.
- Off-grid cabins and outbuildings with mains hook-up where battery maintenance is required during periods of low solar generation.
- Commercial vehicle fleets where batteries are maintained overnight from a mains supply.
- Workshop or storage environments where multiple lead-acid or LiFePO4 batteries are kept on long-term maintenance charge.
What Is Included
- Victron Blue Smart IP22 12/20(3) charger with CEE 7/7 mains plug
- DC output cables with ring terminals
Installation Notes
This charger connects to a standard 230V AC mains supply via the fitted CEE 7/7 Schuko plug. Ensure the mains circuit is adequately rated and protected by an appropriate fuse or circuit breaker. DC connections should be made to the battery terminals with correct polarity and appropriate DC fusing on each output circuit. For LiFePO4 batteries, confirm the battery BMS is compatible with the charger's lithium charge profile before use. Installation in locations exposed to direct rain or submersion is not appropriate for an IP22-rated unit. Where the charger is being integrated into a permanent marine or vehicle electrical system, installation by a qualified electrician or accredited marine electrician is recommended.
