Description

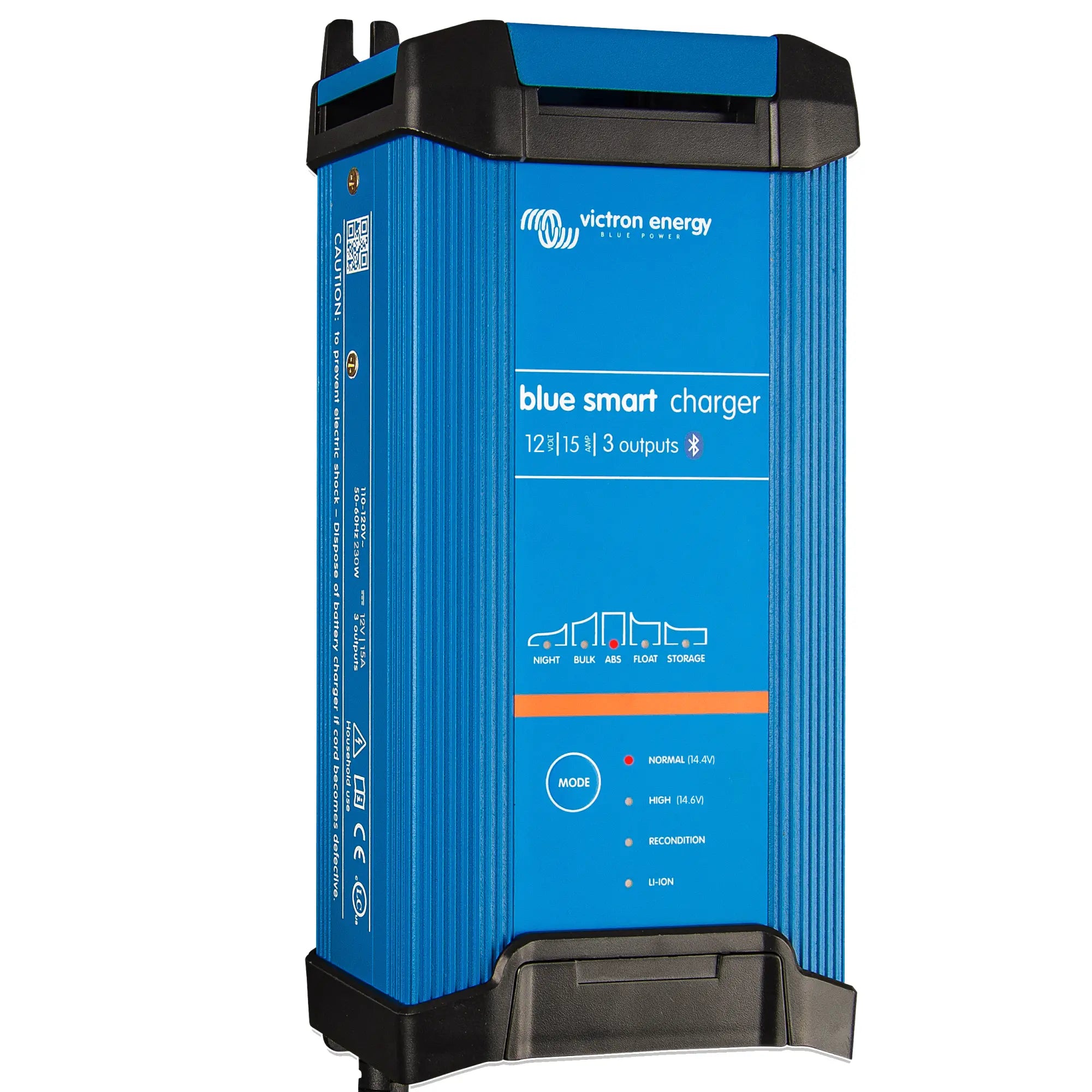

xVictron Blue Smart IP22 Charger 12V 15A (3 Outputs) 230V CEE 7/7
The Victron Blue Smart IP22 12/15(3) is a mains-powered battery charger designed for professional and trade use. It delivers 15A of charge current to 12V battery banks across three simultaneous outputs, with Bluetooth connectivity for monitoring and configuration via the VictronConnect app. Suited to workshops, vehicle fleets, marine installations and off-grid setups where multiple batteries need charging from a single unit.
Key Features
- 15A charge current at 12V across three independent output connections, allowing up to three batteries to be charged simultaneously.
- Built-in Bluetooth for wireless monitoring and configuration using the free VictronConnect app on iOS and Android.
- IP22 ingress protection rating, suitable for use in sheltered indoor environments and enclosed spaces.
- CEE 7/7 mains plug (Schuko/French standard) for direct connection to 230V AC supplies across the UK and EU.
- Adaptive multi-stage charging algorithm adjusts automatically to battery condition, covering bulk, absorption and float stages.
- Compatible with a wide range of 12V battery chemistries including flooded, gel, AGM and lithium (LiFePO4) with appropriate configuration.
- Storage mode reduces float voltage to minimise battery degradation during long-term standby periods.
- Temperature-compensated charging when used with an optional temperature sensor, protecting batteries in variable ambient conditions.
Product Overview
The Blue Smart IP22 12/15(3) uses a multi-stage adaptive charging process. During bulk charge, it delivers the full 15A to bring the battery up to voltage quickly. The absorption stage then holds voltage constant while current tapers off, ensuring a full charge without overcharging. Float mode maintains the battery at a safe standby voltage. This process is managed automatically, but can be adjusted via Bluetooth using VictronConnect if a specific battery profile is required.
The three-output version shares the 15A total charge current across whichever outputs are connected. This makes it practical for workshop environments where multiple vehicles or battery banks need attention at the same time, without requiring separate chargers for each. The Bluetooth interface gives a live view of charge state, voltage, current and any fault conditions, which is useful for diagnostics and commissioning.
The IP22 rating means the unit is protected against solid objects greater than 12.5mm and against direct water spray from any direction. It is not waterproof and should not be exposed to rain or submersion. The CEE 7/7 plug is the standard two-pin earthed plug used across continental Europe and is also widely used in the UK with appropriate adaptors or sockets.
Specifications
- SKU: BPC121544002
- Charge voltage: 12V
- Charge current: 15A
- Number of outputs: 3
- Input voltage: 230V AC
- Mains plug: CEE 7/7 (Schuko/French)
- Ingress protection: IP22
- Connectivity: Bluetooth (VictronConnect)
- Weight: 1.3 kg
- GTIN: 8719076037422
Applications
- Workshop or fleet charging where multiple 12V batteries need to be maintained simultaneously.
- Marine and motorhome installations requiring a reliable shore-power charger for service batteries.
- Off-grid cabins and outbuildings with mains or generator supply needing battery top-up.
- Seasonal storage charging for leisure vehicles, motorcycles and boats left on standby for extended periods.
- Trade and commercial settings where Bluetooth diagnostics and charge monitoring are required on-site.
What Is Included
- Victron Blue Smart IP22 12/15(3) charger unit with CEE 7/7 mains plug
- DC output leads (3 outputs)
Installation Notes
This charger connects directly to a 230V AC mains supply via the supplied CEE 7/7 plug. Ensure the mains socket and circuit are rated appropriately for continuous use. The unit should be installed in a dry, ventilated location away from direct moisture. When charging lithium (LiFePO4) batteries, verify the correct battery profile is selected in VictronConnect before use. For permanent installation in a vehicle, marine vessel or off-grid system, connection by a qualified electrician is recommended. Do not use this charger in locations exposed to rain or standing water.
