Description

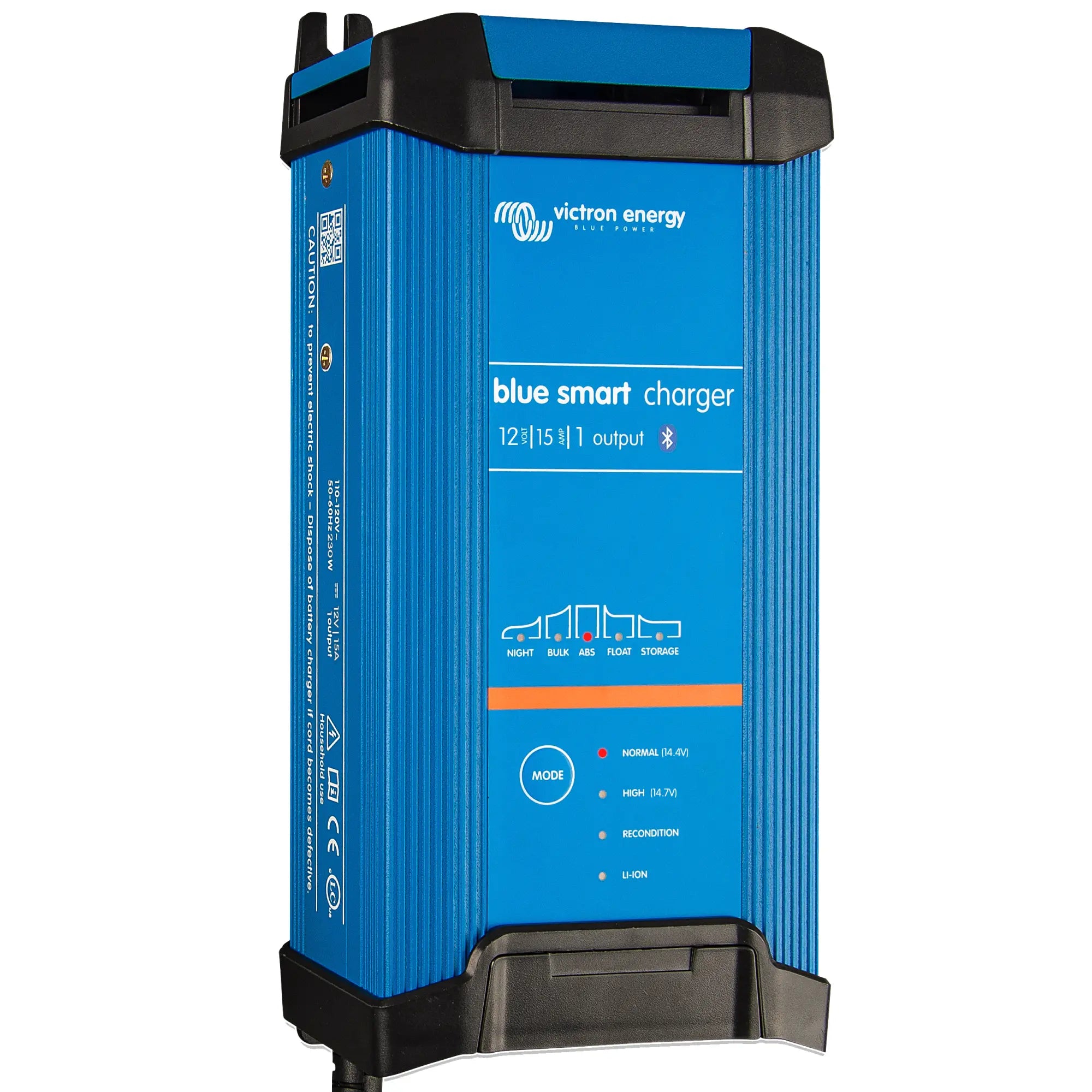

xVictron Blue Smart IP22 Charger 12V 15A Single Output 230V UK
The Victron Blue Smart IP22 12/15(1) is a single-output 15A battery charger for 12V lead-acid and lithium batteries, designed for professional and trade use. It connects via a standard UK BS 1363 plug and is controlled and monitored through the VictronConnect app over Bluetooth. Suited to workshop, vehicle, marine and off-grid battery maintenance applications.
Key Features
- 15A charge current for 12V battery banks, suitable for batteries from around 30Ah to 300Ah depending on chemistry and condition.
- Built-in Bluetooth allows full configuration and real-time monitoring via the free VictronConnect app on iOS and Android, with no additional dongle required.
- IP22 ingress protection rating: protected against solid objects greater than 12.5mm and against direct water spray, making it suitable for sheltered outdoor or marine environments.
- Compatible with a wide range of battery chemistries including GEL, AGM, flooded lead-acid, and lithium iron phosphate (LiFePO4) with selectable charge algorithms.
- Seven-stage adaptive charging algorithm with battery conditioning, bulk, absorption, float, storage, and equalisation modes.
- Single output (1 bank) configuration, with a UK BS 1363 mains plug fitted as standard.
- Storage mode automatically reduces float voltage after 24 hours to minimise battery degradation during long-term storage.
- Temperature-compensated charging when used with an optional temperature sensor, adjusting charge voltage to ambient conditions.
Product Overview
The Blue Smart IP22 12/15(1) uses a seven-stage adaptive charging process that adjusts to the actual condition of the battery rather than following a fixed time-based cycle. This matters in practice because batteries presented to a charger in varying states of charge or age will receive an appropriate charge profile rather than a generic one. The equalisation stage, available for flooded lead-acid batteries, helps recover stratified or sulphated cells when applied periodically.
Bluetooth connectivity is built directly into the charger. Using VictronConnect, an installer or end user can select the correct charge algorithm for the battery chemistry, set absorption time, enable or disable equalisation, and monitor charge state in real time from a phone or tablet. No separate interface cable or hardware is needed. This makes commissioning and fault-finding straightforward on site.
The IP22 rating means the unit is suitable for use in engine bays, boat bilge areas, garages and similar sheltered locations where some moisture exposure is possible, but it should not be mounted in a position where it is directly rained on or submerged. The single-output version charges one battery bank at a time.
Specifications
- SKU: BPC121542022
- Battery voltage: 12V
- Charge current: 15A
- Number of outputs: 1 (single bank)
- Input voltage: 230V AC
- Mains plug: UK BS 1363
- Ingress protection: IP22
- Weight: 1.3kg
- GTIN: 8719076041047
Applications
- Charging and maintaining 12V starter or leisure batteries in motorhomes, campervans and caravans.
- Workshop battery charging for automotive, agricultural and plant equipment batteries.
- Marine battery maintenance on boats and narrowboats in sheltered berths or engine compartments.
- Off-grid and backup battery systems requiring a reliable mains-powered charge source.
- Long-term battery storage maintenance where the storage mode prevents overcharging during extended periods of inactivity.
What Is Included
- Victron Blue Smart IP22 12/15(1) charger with UK BS 1363 mains plug
- DC output leads with ring terminals
Installation Notes
This charger connects to a standard 230V UK mains socket and does not require hardwired installation. Ensure the DC output leads are connected with correct polarity and that the battery terminals are clean and secure before use. Select the appropriate charge algorithm for your battery chemistry via VictronConnect before first use. For installation into fixed vehicle, marine or off-grid systems, connection to battery busbars or distribution should be carried out by a competent electrician or qualified marine engineer. Do not install in locations exposed to direct rainfall or standing water.
