Description

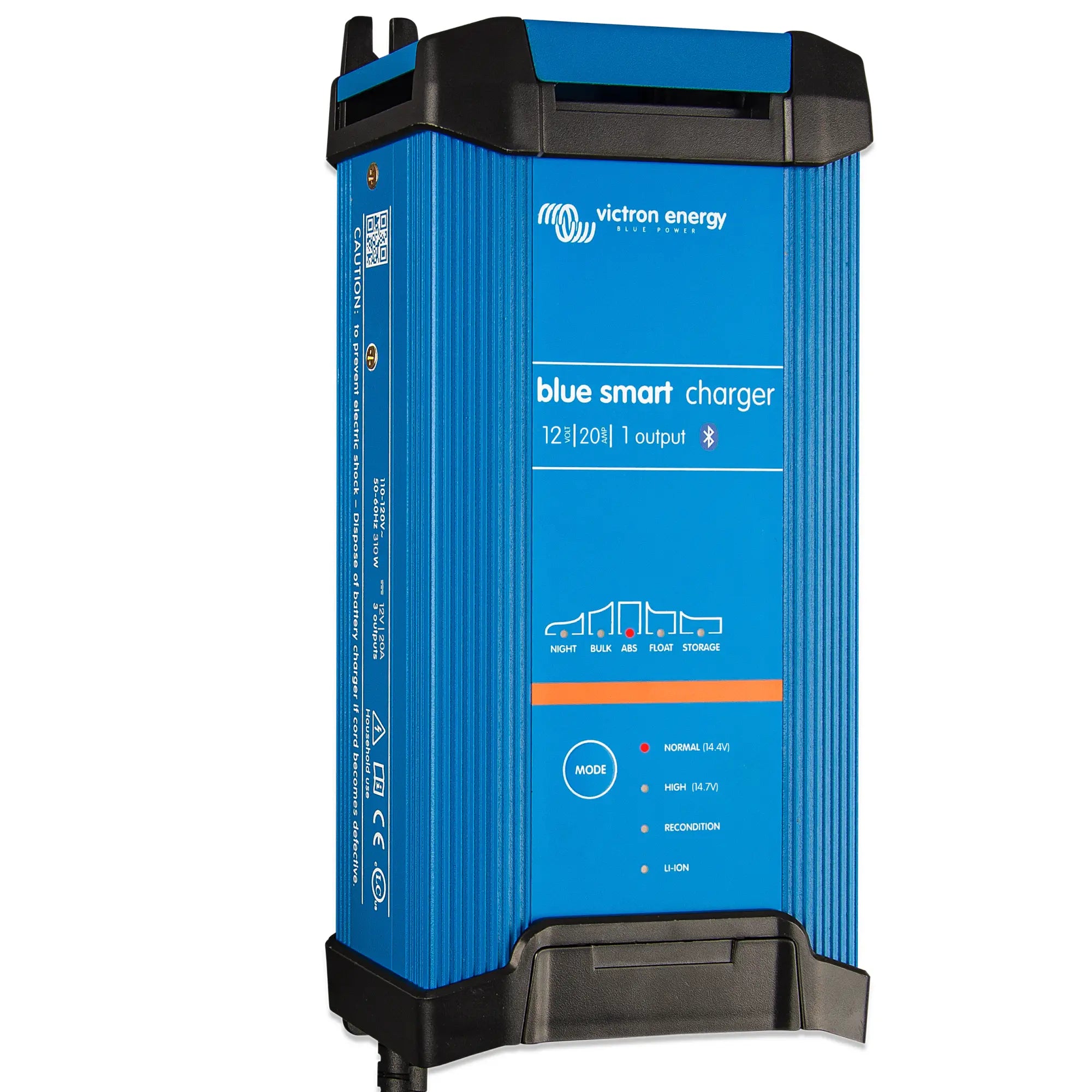

xVictron Blue Smart IP22 Charger 12V 20A (1 Output) 230V UK
The Victron Blue Smart IP22 12/20 is a single-output, mains-powered battery charger designed for 12V lead-acid and lithium battery banks. It connects via a standard UK BS 1363 plug and includes Bluetooth built in, allowing full monitoring and control through the Victron Connect app. It suits professional installers, vehicle converters, marine engineers and anyone who needs a reliable, programmable charger for a fixed or mobile 12V system.
Key Features
- 20A charge current for 12V battery banks, delivered through a single output
- Built-in Bluetooth for monitoring and configuration via the free VictronConnect app on iOS and Android
- IP22 rated enclosure, suitable for use in engine bays, vans, boats and other sheltered but potentially damp environments
- Compatible with a wide range of 12V battery chemistries including AGM, Gel, flooded lead-acid and lithium (LiFePO4) with selectable charge profiles
- Seven-stage adaptive charging algorithm with battery conditioning and storage mode
- Supplied with a UK BS 1363 mains plug, ready to connect to a standard 230V socket
- Compact and lightweight at 1.3 kg, making it practical for permanent installation or portable use
Product Overview
The Blue Smart IP22 12/20 uses a seven-stage adaptive charging process that adjusts to the condition of the battery. This includes bulk, absorption and float stages, plus a storage mode that maintains the battery at an optimal state of charge without overcharging. A battery conditioning pulse is applied periodically to help recover stratified or lightly sulphated lead-acid cells. For lithium batteries, a dedicated LiFePO4 profile is selectable via the app.
Bluetooth connectivity is built directly into the charger, not added via an external dongle. Through VictronConnect, an installer or end user can view real-time charge status, adjust the charge profile, set charge current limits and review historical data. This is particularly useful for installations where the charger is mounted in an enclosed space and physical access is limited.
The IP22 rating means the unit is protected against solid objects greater than 12.5mm and against direct water spray. It is not waterproof and should not be mounted where it will be exposed to rain or submersion, but it is well suited to engine compartments, under-seat battery boxes and similar sheltered locations on vehicles and vessels.
Specifications
- SKU: BPC122042022
- Battery voltage: 12V
- Charge current: 20A
- Number of outputs: 1
- Input voltage: 230V AC
- Mains plug: UK BS 1363
- IP rating: IP22
- Weight: 1.3 kg
- GTIN: 8719076041061
Applications
- Charging and maintaining 12V leisure batteries in campervans, motorhomes and caravans
- Marine battery charging on boats and narrowboats with shore power connections
- Workshop or garage battery maintenance for vehicles in storage
- Fixed installation in off-grid cabins or outbuildings with a 230V mains supply
- Charging 12V lithium (LiFePO4) battery banks in mobile or static installations
What Is Included
- Victron Blue Smart IP22 12/20 charger (1 output)
- UK BS 1363 mains plug (factory fitted)
Installation Notes
This charger connects to a standard 230V UK mains socket via the supplied BS 1363 plug. Ensure the battery connections are correctly rated for 20A continuous current and that the installation location meets the IP22 protection requirements (sheltered from direct rain and submersion). For lithium battery installations, confirm that the battery management system (BMS) is compatible with external chargers before connecting. While this unit does not require a certified electrician for basic plug-in use, any fixed wiring or integration into a vehicle or vessel electrical system should be carried out by a qualified electrician or competent marine engineer.
