Description

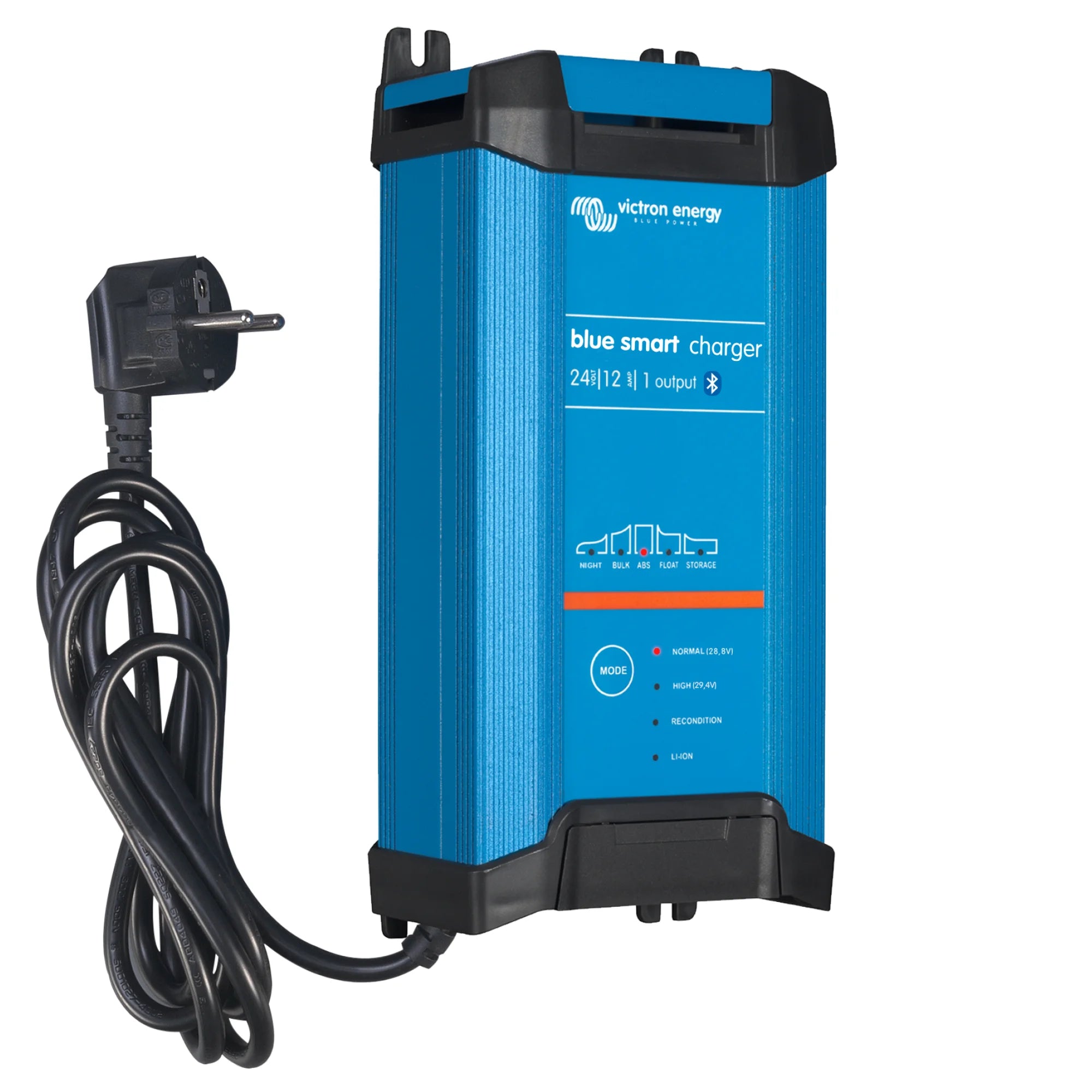

xVictron Blue Smart IP22 Charger 24V/12A (1 Output) 230V CEE 7/7
The Victron Blue Smart IP22 24/12 is a single-output, 230V mains-powered battery charger rated at 12 amps for 24V battery banks. It is aimed at professional installers, marine and vehicle electricians, and off-grid system integrators who need a reliable, Bluetooth-enabled charger for lead-acid and lithium battery chemistries.
Key Features
- 12A charge current for 24V battery banks, suitable for a wide range of lead-acid and lithium (LiFePO4) battery types.
- Built-in Bluetooth connectivity allows full monitoring and configuration via the free VictronConnect app on iOS and Android, with no additional dongle required.
- IP22 ingress protection rating: protected against solid objects greater than 12.5mm and against dripping water, making it suitable for engine rooms, lockers and sheltered outdoor installations.
- Single output (1 bank) with a CEE 7/7 (Schuko/French) mains plug for direct connection to a 230V supply.
- Multi-stage adaptive charging algorithm automatically adjusts charge profile based on battery condition, reducing charge time and extending battery life.
- Storage mode maintains batteries at optimal voltage during long periods of inactivity without overcharging.
- Temperature-compensated charging when used with an optional temperature sensor, correcting charge voltage for ambient conditions.
Product Overview
The Blue Smart IP22 range uses a microprocessor-controlled, multi-stage charge algorithm. For lead-acid batteries (including AGM, gel and flooded), the charger progresses through bulk, absorption and float stages, with an automatic recondition cycle available for deeply discharged or sulphated batteries. For lithium iron phosphate (LiFePO4) batteries, a dedicated charge profile is selectable via VictronConnect, ensuring the correct absorption voltage and charge termination behaviour.
Bluetooth is integrated directly into the unit. Using VictronConnect, an installer can read real-time charge current, voltage and state of charge, adjust the charge algorithm, set battery capacity, and review historical charge data. This removes the need for a separate interface cable or display panel during commissioning and fault-finding. The CEE 7/7 plug is the standard two-pin-with-earth format used across continental Europe and is widely accepted in UK installations via an adaptor or on compatible sockets.
At 0.9kg, the unit is compact enough for installation in tight spaces. The IP22 rating is appropriate for protected indoor locations and enclosed compartments where occasional moisture exposure is possible, but it is not rated for direct outdoor exposure to rain.
Specifications
- SKU: BPC241242002
- Charge voltage: 24V
- Charge current: 12A
- Number of outputs: 1
- Mains input: 230V AC, CEE 7/7 plug
- Ingress protection: IP22
- Weight: 0.9kg
- GTIN: 8719076037682
Applications
- Charging 24V lead-acid or LiFePO4 battery banks in motorhomes, caravans and campervans.
- Marine installations: charging 24V service or starter batteries in engine rooms or battery lockers.
- Off-grid cabins and shelters with a 230V mains or generator supply.
- Workshop and fleet maintenance charging for 24V vehicle and equipment batteries.
- Battery maintenance and storage conditioning for seasonal or infrequently used vehicles.
What Is Included
- 1x Victron Blue Smart IP22 24/12 charger with integrated CEE 7/7 mains plug
Installation Notes
Ensure the battery voltage (24V) and chemistry match the charger settings before connecting. Battery type and charge profile should be confirmed and set via VictronConnect prior to first use. The CEE 7/7 plug is compatible with Schuko and French standard sockets; a plug adaptor is required for standard UK BS 1363 sockets. Install in a ventilated, protected location away from direct water ingress. The IP22 rating does not permit direct outdoor or rain-exposed mounting. For LiFePO4 batteries, verify that the battery BMS is compatible with the charger's charge termination behaviour. Qualified installation is recommended for permanent fixed wiring or integration into a larger DC system.
