Description

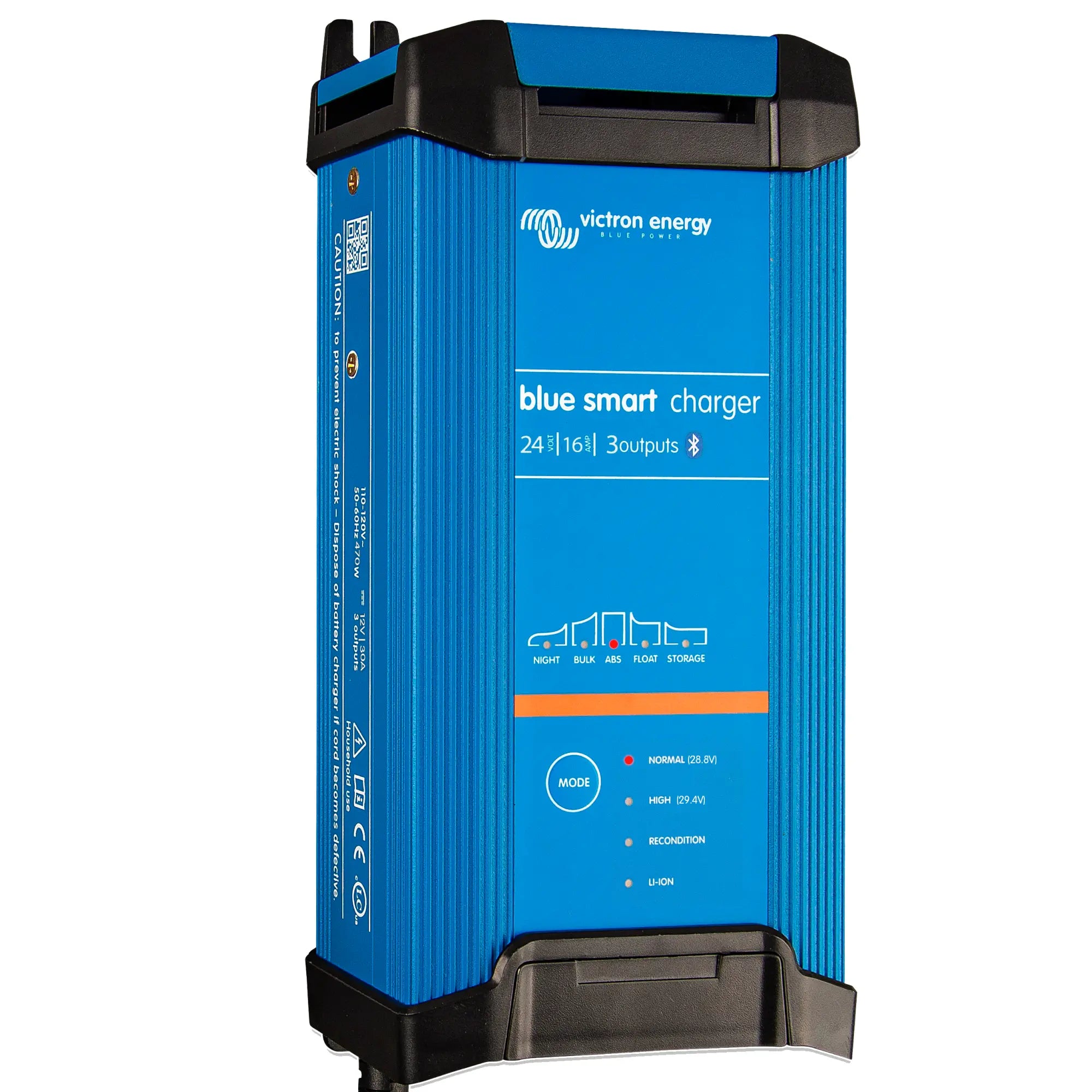

xVictron Blue Smart IP22 Charger 24V 16A (3 Outputs) 230V CEE 7/7
The Victron Blue Smart IP22 24/16(3) is a mains-powered battery charger designed for 24V battery banks. It delivers up to 16A of charge current across three output connections, making it suited to workshop, vehicle, marine and off-grid applications where multiple batteries need charging from a single unit. Built-in Bluetooth allows full monitoring and configuration via the Victron Connect app without additional hardware.
Key Features
- 16A maximum charge current for 24V battery systems, with three independent output connections on a single unit.
- Bluetooth built-in as standard: configure charge algorithms and monitor status directly from the VictronConnect app on iOS or Android.
- IP22 ingress protection rating: suitable for use in sheltered indoor environments where some moisture exposure is possible.
- CEE 7/7 mains plug fitted as standard, compatible with standard European and UK (via adaptor) sockets at 230V AC.
- Supports multiple battery chemistries including flooded, gel, AGM and lithium (LiFePO4), with selectable charge profiles.
- Adaptive charge algorithm with automatic temperature compensation when used with an optional temperature sensor.
- Storage mode maintains battery health during long periods of inactivity without overcharging.
Product Overview
The Blue Smart IP22 24/16(3) uses a multi-stage adaptive charge algorithm. This means the charger adjusts its behaviour based on the actual condition of the battery rather than following a fixed time-based cycle. In practice, a deeply discharged battery receives a controlled bulk charge, followed by absorption at the correct voltage, and then a float phase to hold the battery at full capacity without damage. This approach extends battery service life compared to simpler constant-voltage chargers.
The three-output configuration allows one charger to serve multiple batteries simultaneously, which is particularly useful in dual-battery vehicle installations or small battery banks where individual batteries benefit from being charged in parallel. All three outputs share the total 16A capacity, so the current is distributed across whichever batteries are connected.
Bluetooth connectivity is built directly into the unit. There is no need for a separate dongle or interface. Through VictronConnect, an installer or end user can select the battery type, adjust charge voltage, view real-time charge status and review historical data. This makes commissioning straightforward and gives ongoing visibility of battery condition without physical access to the charger.
Specifications
- SKU: BPC241648002
- Charge voltage: 24V
- Maximum charge current: 16A
- Number of outputs: 3
- Input voltage: 230V AC
- Mains plug: CEE 7/7
- Ingress protection: IP22
- Weight: 0.9 kg
- GTIN: 8719076052517
Applications
- Charging 24V battery banks in campervans, motorhomes and commercial vehicles with dual or split battery systems.
- Workshop battery maintenance for 24V lead-acid or lithium battery packs.
- Off-grid cabins and small installations where mains power is available for periodic battery top-up.
- Marine applications in sheltered or below-deck locations where IP22 protection is sufficient.
- Seasonal storage charging for boats, plant equipment and backup power systems.
What Is Included
- Victron Blue Smart IP22 24/16(3) battery charger with CEE 7/7 mains plug
Installation Notes
This charger connects to a standard 230V AC mains supply via the fitted CEE 7/7 plug. Ensure the mains circuit is correctly rated and protected with an appropriate fuse or MCB. The DC output connections should be made to the battery terminals with correctly rated cable and inline fusing on the positive lead. Verify the battery chemistry and voltage match the selected charge profile before use. For installations in vehicles or marine craft, ensure adequate ventilation around the unit and that the IP22 rating is appropriate for the installation environment. If in doubt about any aspect of the electrical installation, consult a qualified electrician or auto-electrician.
