Description

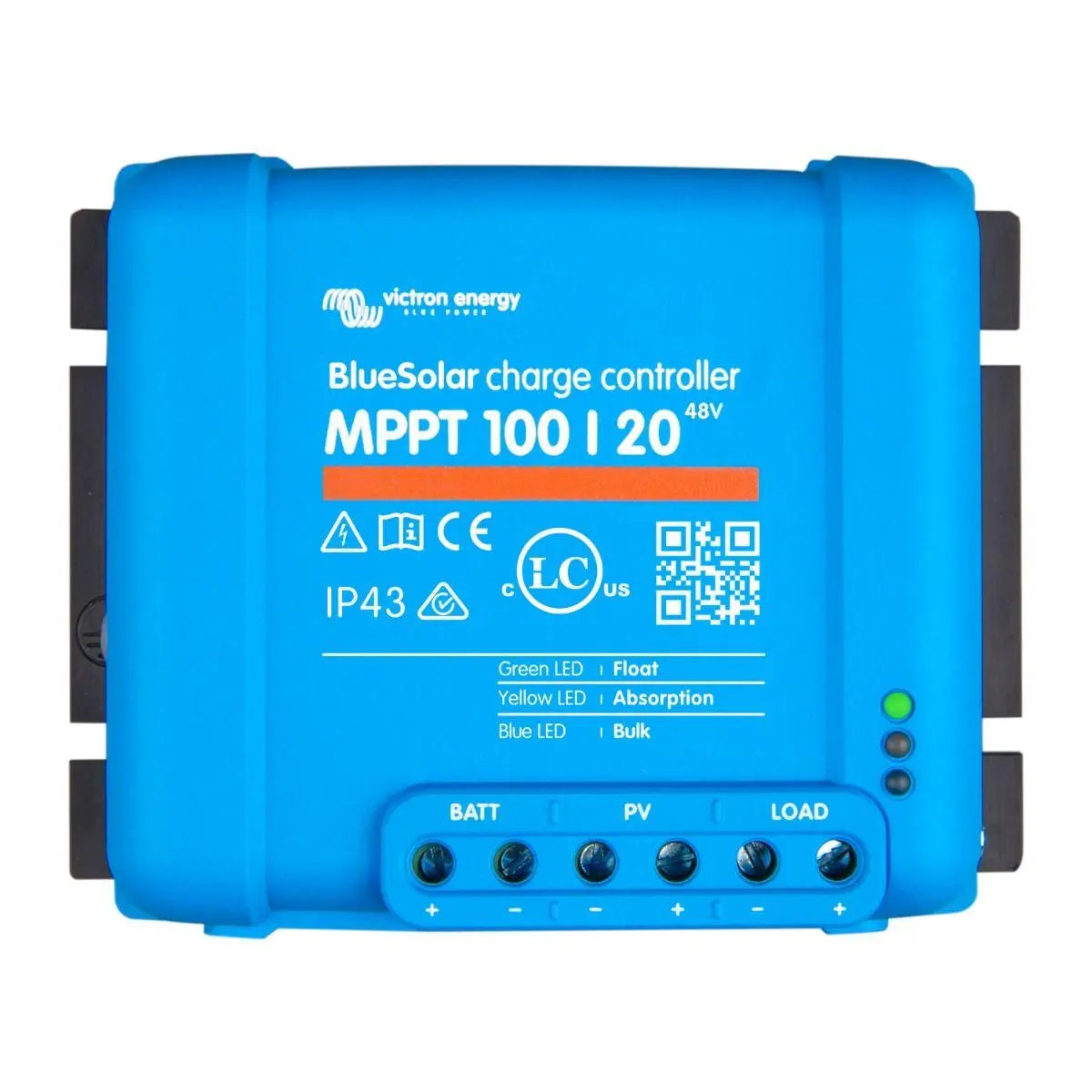

xA solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Quick find code: SCC110020170R
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Load output
The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which BlueSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: BlueSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains health, and extends the life of your battery.
Battery Life: intelligent battery managementWhen a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programming, real-time data and history display options- Colour Control GX or other GX devices: see the Venus documents on our website.
- A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.
Specifications
x| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
SCC110020170R |
| Battery Voltage |
12/24/48V |
| Rated Charge Current |
20A |
| Nominal PV Power, 12V |
290W |
| Nominal PV Power, 24V |
580W |
| Nominal PV Power, 48V |
1160W |
| Max. PV Short Circuit Current |
20A |
| Maximum PV Open Circuit Voltage |
100V |
| Efficiency |
98% |
| Charge Algorithm |
Multi-stage adaptive |
| Data Communication Port |
VE.Direct |
| IP Rating |
IP43 (electronic components), IP22 (connection area) |
| Dimensions |
H100 x W113 x D60mm |
