Description

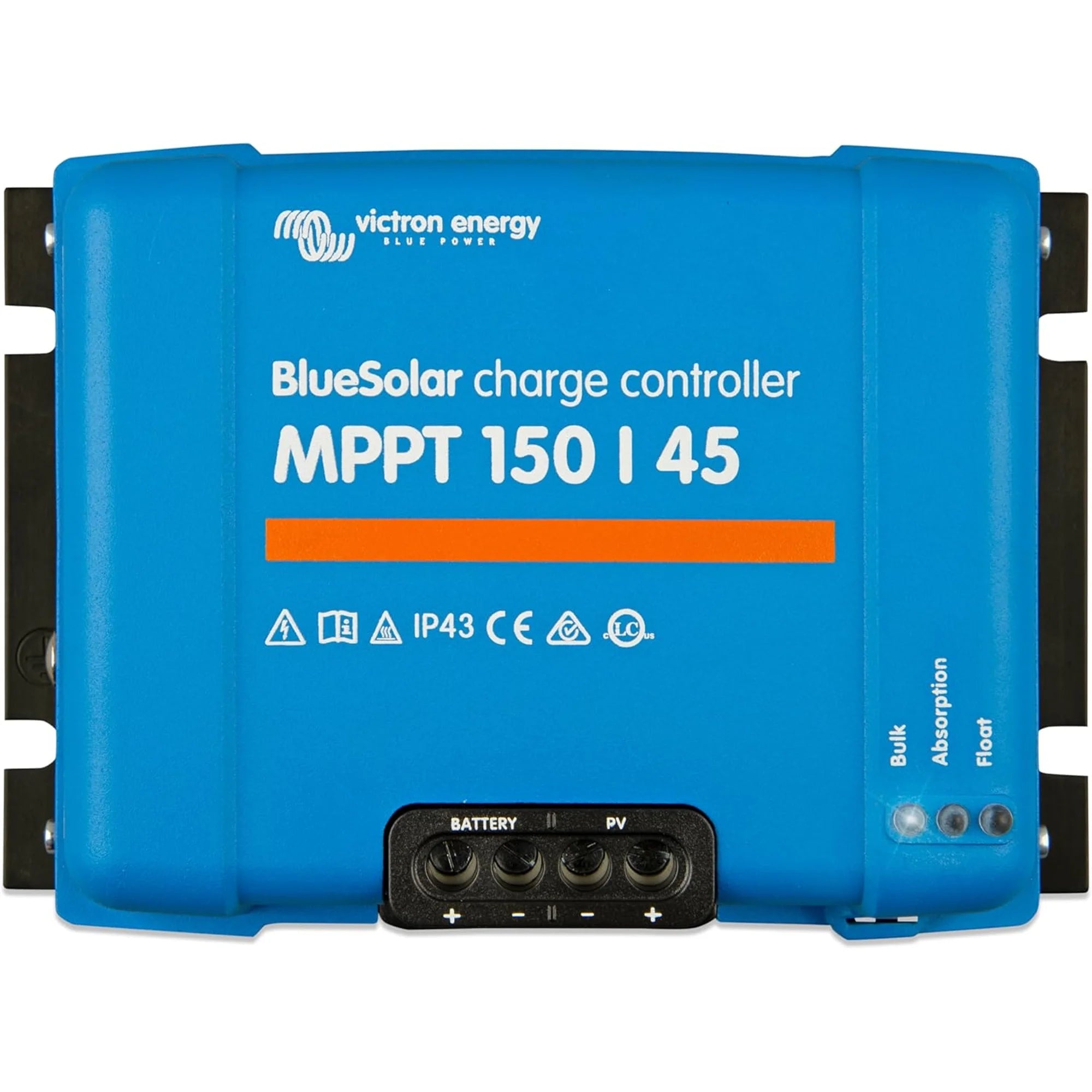

xVictron BlueSolar MPPT 150/45 Charge Controller
The Victron BlueSolar MPPT 150/45 is a solar charge controller designed for off-grid and battery-based solar systems. It accepts a maximum PV open-circuit voltage of 150V and delivers up to 45A of charge current, making it suitable for medium to large battery banks in professional installations. It is aimed at solar installers, system integrators and off-grid specialists who need a reliable, standalone MPPT controller without Bluetooth built in.
Key Features
- Maximum PV open-circuit voltage of 150V, compatible with higher-voltage series-connected panel strings.
- 45A maximum charge current, suitable for charging 12V, 24V and 48V battery banks.
- True MPPT tracking algorithm for fast and accurate maximum power point tracking, even under variable irradiance conditions.
- Supports multiple battery chemistries including lead-acid (AGM, gel, flooded) and lithium-ion where configured correctly.
- Load output with street lighting and timer functions for direct DC load management.
- Programmable charge algorithm with user-defined voltage and current settings via the VictronConnect app (using optional VE.Direct Bluetooth Smart dongle).
- VE.Direct communication port for integration with Victron GX devices, MPPT Control display and data logging.
- Compact and lightweight at 1.4kg, suitable for panel or wall mounting in a range of enclosures.
Product Overview
The BlueSolar MPPT 150/45 sits in Victron's established BlueSolar range, which differs from the SmartSolar range in that it does not include built-in Bluetooth. All other core functionality is identical. The 150V input ceiling allows the use of two or three panels in series depending on panel Voc, which reduces cable losses and increases flexibility in string design. The 45A output is sufficient to charge a 48V battery bank from a PV array of up to approximately 2,400W, or a 24V bank from up to around 1,200W.
MPPT tracking on this unit operates continuously and re-sweeps the IV curve when conditions change, which is particularly useful in partially shaded or overcast conditions where the power point shifts. The load output supports programmable lighting control functions, including dusk-to-dawn and timer-based switching, which removes the need for a separate load controller in smaller systems.
The VE.Direct port allows connection to Victron's Color Control GX, Cerbo GX or other GX devices for system monitoring and data logging. It also supports the MPPT Control display accessory for local readout without a GX device. For Bluetooth access, the optional VE.Direct Bluetooth Smart dongle enables configuration and monitoring via the VictronConnect app on iOS or Android.
Technical Specifications
| Parameter | Value |
| SKU | SCC115045222 |
| Maximum PV Open-Circuit Voltage | 150V |
| Maximum Charge Current | 45A |
| Compatible Battery Voltages | 12V, 24V, 48V |
| Communication Port | VE.Direct |
| Bluetooth | Not built-in (optional VE.Direct Bluetooth Smart dongle) |
| Weight | 1.4 kg |
| GTIN | 8719076053033 |
Applications
- Off-grid cabins, lodges and rural properties with medium to large battery banks.
- Marine and narrowboat solar charging systems requiring a higher-voltage PV input.
- Mobile and vehicle-based installations such as motorhomes and expedition vehicles with 24V or 48V systems.
- Agricultural and remote monitoring installations where DC load control is required.
- Victron-based off-grid systems integrated with GX monitoring devices.
What Is Included
- Victron BlueSolar MPPT 150/45 charge controller
Installation Notes
Installation should be carried out by a qualified electrician or accredited solar installer. The PV input must not exceed 150V open-circuit under any temperature condition, including cold-start Voc. Ensure the battery voltage is correctly set before connecting PV. For lithium battery compatibility, verify the charge profile settings match the battery manufacturer's requirements. The VE.Direct port is for low-voltage signal use only and must not be used for power connections. Where this controller forms part of a grid-connected or hybrid system, relevant G98 or G99 notification requirements apply to the wider installation.
