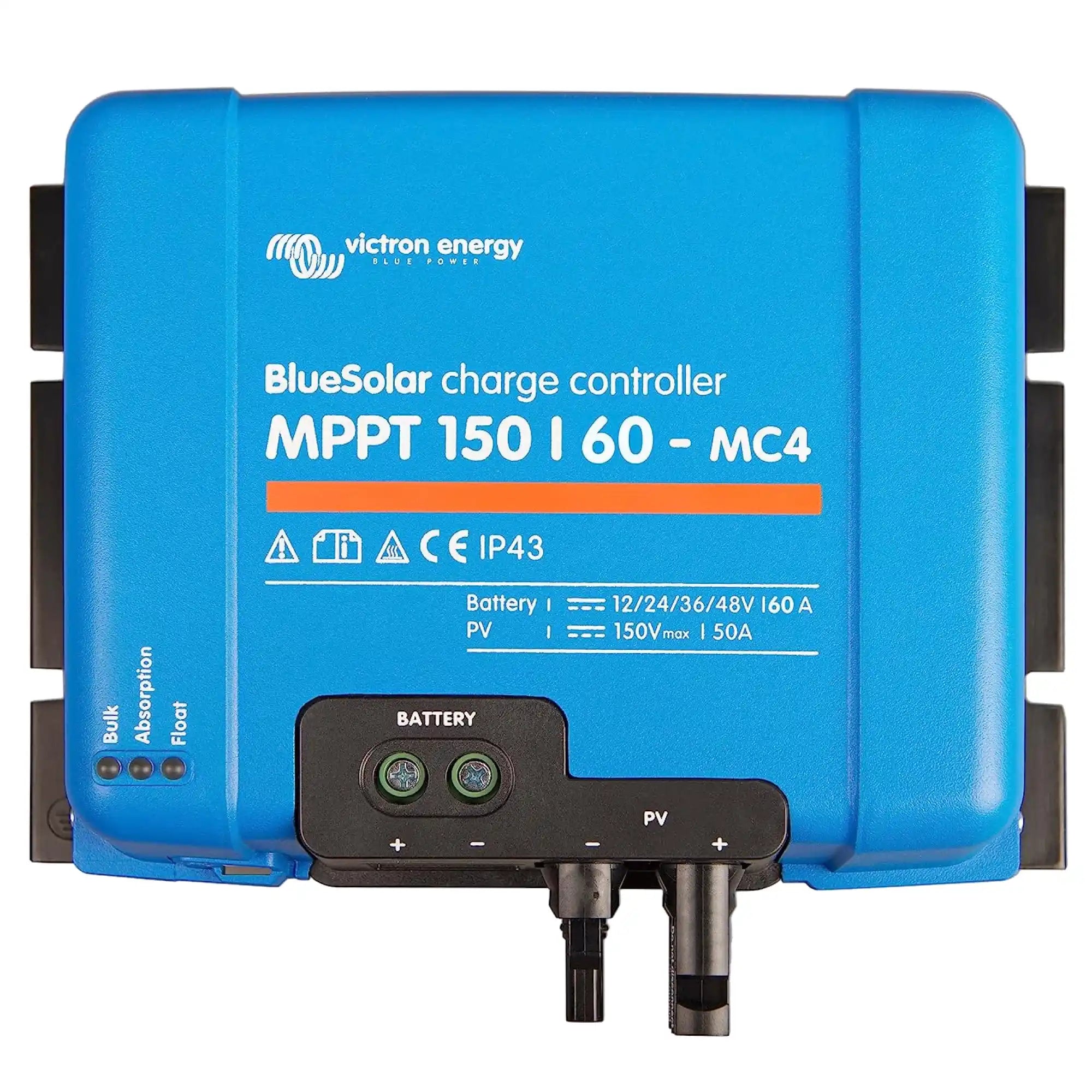

xVictron BlueSolar MPPT 150/60-MC4 Solar Charge Controller
The Victron BlueSolar MPPT 150/60-MC4 is a solar charge controller designed for off-grid and battery-based solar installations. It accepts a maximum PV open-circuit voltage of 150V and delivers up to 60A of charge current, with integrated MC4 connectors for direct panel connection. Suited to professional installers working on residential, commercial and mobile off-grid systems.
Key Features
- Maximum PV open-circuit voltage of 150V, supporting series-connected panel strings.
- 60A maximum charge current, compatible with 12V, 24V and 48V battery banks.
- Integrated MC4 connectors allow direct connection to standard solar panel cables without additional adaptors.
- True MPPT tracking algorithm responds rapidly to changing irradiance conditions, maintaining optimal power harvest.
- Supports multiple battery chemistries including flooded lead-acid, AGM, gel and lithium (LiFePO4) with programmable charge profiles.
- Built-in Bluetooth via the VictronConnect app for configuration, monitoring and firmware updates from a mobile device.
- Load output function allows direct connection of DC loads with low-voltage disconnect protection.
- Comprehensive protection: reverse polarity, over-temperature, over-current and short-circuit.
Product Overview
The BlueSolar MPPT 150/60-MC4 uses Victron's multi-point power tracking algorithm to extract maximum available power from the connected PV array. Unlike simpler PWM controllers, MPPT technology converts excess panel voltage into additional charge current, which is particularly effective when panel voltage significantly exceeds battery voltage. At 48V battery systems with higher-voltage panel strings, the efficiency gains over PWM are substantial.
The 150V maximum input voltage allows installers to wire panels in series strings of two or three modules depending on panel Voc, which reduces cable losses and simplifies wiring runs. The integrated MC4 connectors remove the need for a separate combiner or adaptor, keeping the installation tidy and reducing potential connection points. The unit is housed in an IP43-rated enclosure suitable for indoor or sheltered outdoor installation.
Configuration and live monitoring are handled through the VictronConnect app over Bluetooth. Charge parameters, battery type, absorption voltage and float voltage are all adjustable without additional hardware. The controller is also compatible with the Victron VE.Direct communication port for integration with a GX device, enabling full system monitoring via the Victron Remote Management (VRM) portal.
Technical Specifications
| Parameter | Value |
| SKU | SCC010060300 |
| Maximum PV Open-Circuit Voltage | 150V |
| Maximum Charge Current | 60A |
| Compatible Battery Voltages | 12V / 24V / 48V (auto-select) |
| PV Connector Type | MC4 (integrated) |
| Communication | VE.Direct, Bluetooth (VictronConnect) |
| Weight | 3.88 kg |
| GTIN | 8719076025481 |
Applications
- Off-grid residential solar systems with 12V, 24V or 48V battery banks.
- Marine and narrowboat installations requiring direct MC4 panel connections.
- Mobile and vehicle-based solar setups where space and wiring simplicity matter.
- Remote telecoms, monitoring stations and rural power systems.
- Hybrid systems integrated with a Victron GX device and VRM monitoring.
What Is Included
- Victron BlueSolar MPPT 150/60-MC4 charge controller
Installation Notes
Installation should be carried out by a qualified electrician or accredited solar installer. The 150V maximum PV input voltage requires careful string design to ensure Voc does not exceed this limit under cold-temperature conditions. Battery connections must be correctly fused and sized to the 60A output current. For grid-tied or MCS-accredited installations, consult the relevant scheme requirements. The VE.Direct port enables integration with Victron GX devices for full system oversight.
