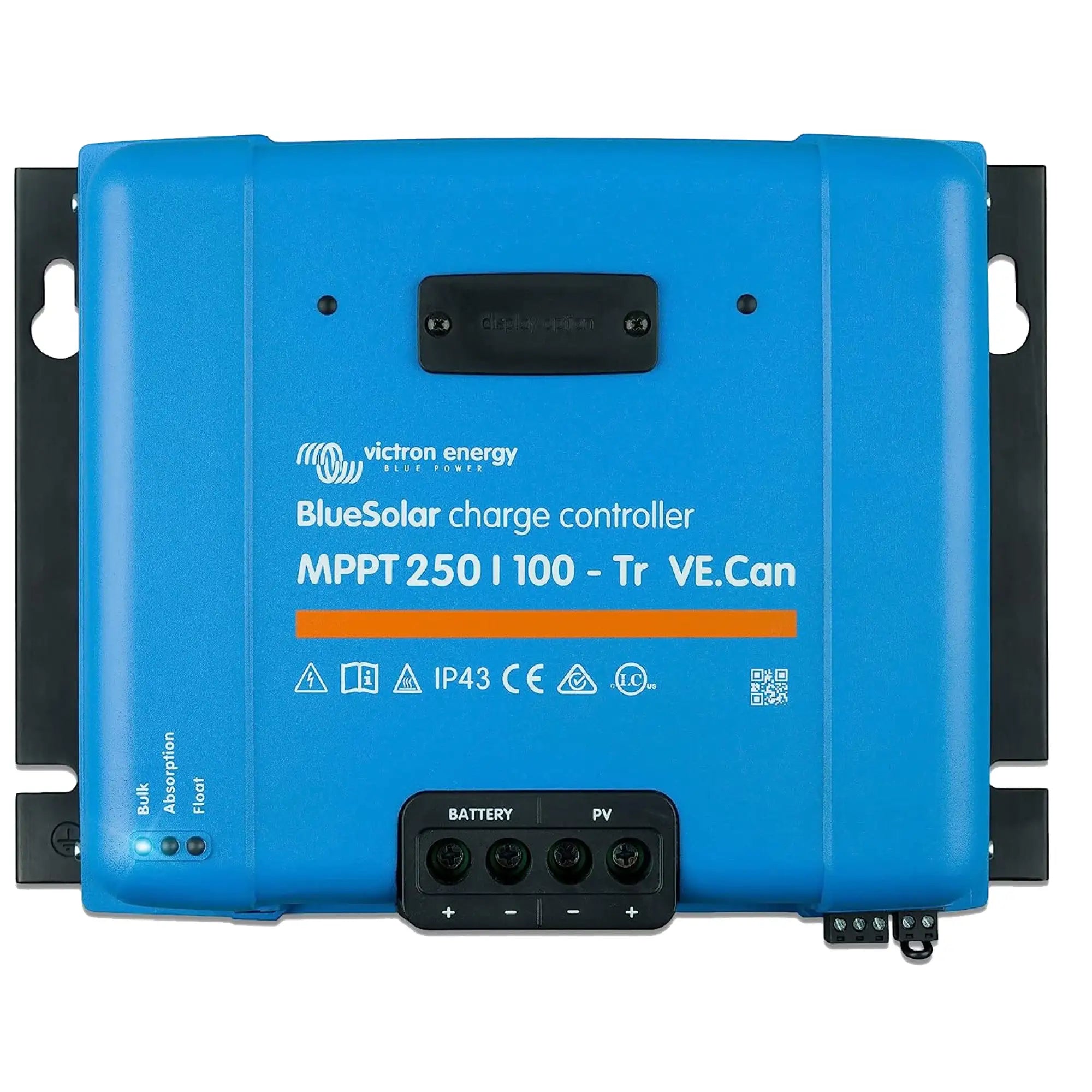

xVictron BlueSolar MPPT 250/100-Tr VE.Can Solar Charge Controller
The Victron BlueSolar MPPT 250/100-Tr VE.Can is a high-capacity solar charge controller designed for large off-grid, marine and commercial solar installations. It accepts a maximum PV open-circuit voltage of 250V and delivers up to 100A of charge current, making it suitable for substantial battery banks where precise, efficient charging is required. The VE.Can interface allows integration into Victron system networks for centralised monitoring and control.
Key Features
- Maximum PV input voltage of 250V open-circuit, supporting large series-connected panel strings.
- 100A maximum charge current output, capable of handling high-capacity battery banks.
- True MPPT (Maximum Power Point Tracking) algorithm continuously extracts maximum available power from the PV array.
- VE.Can interface enables integration with Victron GX devices, Color Control GX, and other VE.Can-compatible equipment for full system monitoring.
- TR (screw terminal) connection type for secure, reliable wiring in permanent installations.
- Compatible with a wide range of battery chemistries including lead-acid (AGM, gel, flooded) and lithium-ion where appropriate settings are applied.
- Rotary switch for battery voltage selection, with additional programmability via VE.Can network.
- Built-in protection against PV reverse polarity, battery reverse polarity, over-temperature and short circuit.
Product Overview
The BlueSolar MPPT 250/100-Tr VE.Can sits at the upper end of Victron's BlueSolar charge controller range. The 250V maximum PV voltage rating allows longer panel strings to be wired in series, which reduces cable losses and simplifies array wiring in larger installations. At 100A output, a single unit can deliver substantial charge current to 12V, 24V or 48V battery banks, with the controller automatically detecting system voltage on first connection.
The VE.Can port distinguishes this model from standard BlueSolar units. It connects directly to Victron's CAN-bus network, allowing the controller to communicate with GX monitoring devices, other VE.Can charge controllers and compatible inverter-chargers. This makes it well suited to multi-controller installations where aggregate PV data, state-of-charge information and charge parameters need to be managed centrally. The controller can also be configured and monitored remotely via the VRM portal when connected through a GX device.
The TR (screw terminal) variant uses robust screw-type terminals rather than MC4 or other connector types, which is the standard choice for fixed, permanent wiring in enclosures or distribution boards. At 5.66kg, the unit is substantial and should be mounted on a solid surface with adequate ventilation to allow thermal management under full load.
Technical Specifications
| Parameter | Value |
| SKU | SCC125110441 |
| Maximum PV Open-Circuit Voltage | 250V |
| Maximum Charge Current | 100A |
| Connection Type | Screw terminal (TR) |
| Communication Interface | VE.Can |
| Weight | 5.66 kg |
| GTIN | 8719076050926 |
Applications
- Large off-grid solar systems with high-capacity battery banks requiring 100A charge current.
- Marine and yacht installations where VE.Can network integration with other Victron equipment is required.
- Commercial and agricultural off-grid sites with multiple charge controllers networked via VE.Can.
- Motorhome and vehicle conversions with substantial solar arrays and 24V or 48V battery systems.
- Telecom and remote monitoring installations requiring centralised data logging via VRM portal.
What Is Included
- 1x Victron BlueSolar MPPT 250/100-Tr VE.Can charge controller
Installation Notes
Installation should be carried out by a qualified electrician or accredited solar installer. The 250V maximum PV input voltage requires careful string design to ensure open-circuit voltage does not exceed this limit under cold-temperature conditions. Ensure the battery bank voltage is correctly set before connecting the PV array. VE.Can network connections require correct termination resistors at each end of the bus. For off-grid systems connected to any grid-tied elements, relevant G98 or G99 compliance requirements must be assessed by the installing engineer.
