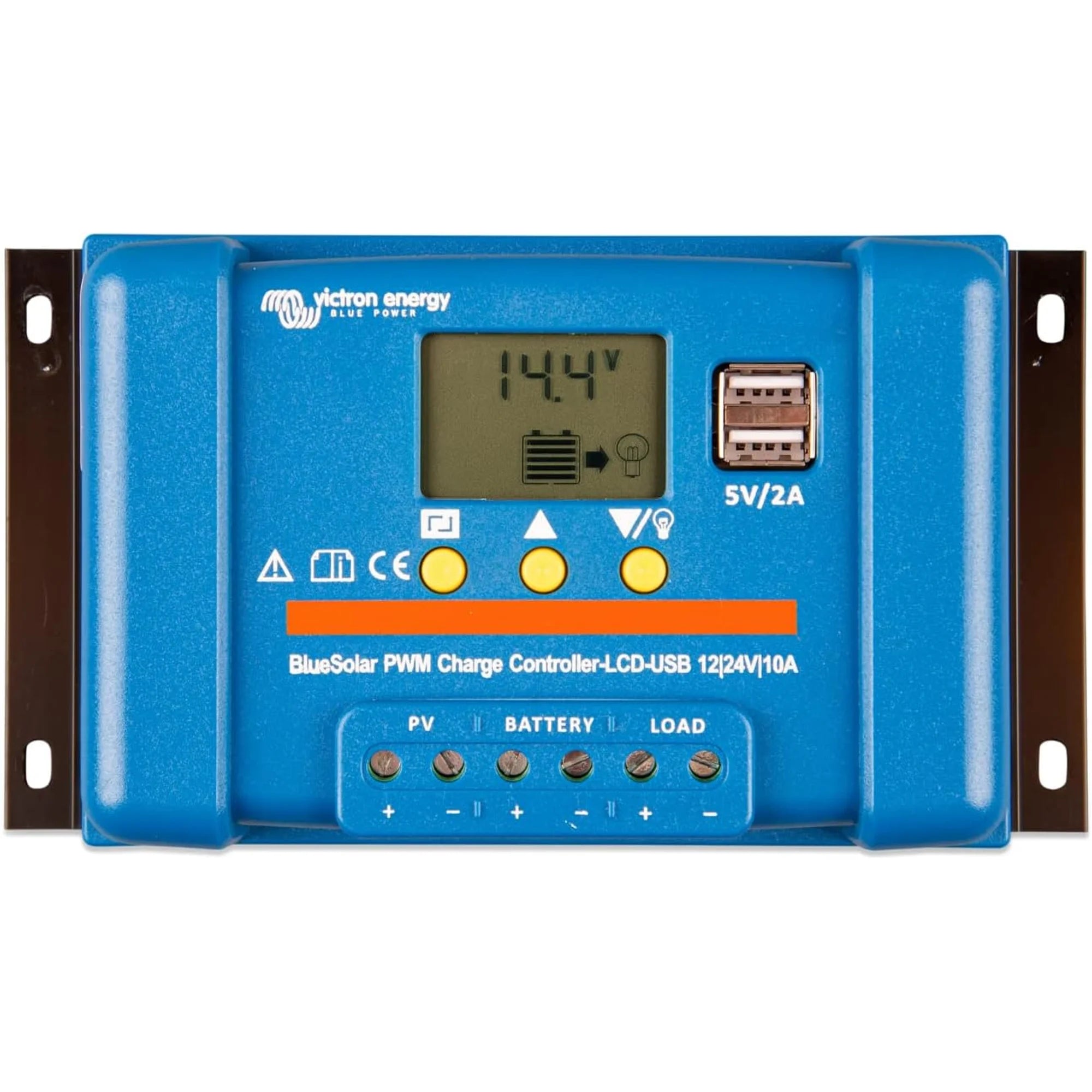

xVictron BlueSolar PWM-LCD & USB 12/24V 10A Charge Controller
The Victron BlueSolar PWM-LCD & USB 12/24V-10A is a pulse-width modulation solar charge controller designed for small 12V and 24V off-grid systems. It suits caravans, campervans, boats, garden buildings and other compact solar installations where a straightforward, reliable charge controller is needed. The built-in LCD display gives real-time system feedback without requiring a separate monitor, and the integrated USB output allows direct device charging from the solar system.
Key Features
- PWM charging algorithm maintains battery health by tapering charge current as the battery approaches full capacity.
- Compatible with 12V and 24V battery systems, automatically detected.
- 10A maximum charge current suits panels up to approximately 130W (12V) or 260W (24V).
- Built-in LCD display shows battery voltage, charge current, and system status at a glance.
- Integrated USB output port for charging phones, tablets or other USB-powered devices directly from the system.
- Compact and lightweight at 0.24 kg, suitable for space-constrained installations.
- Load output with low-voltage disconnect protects the battery from over-discharge.
Product Overview
PWM charge controllers work by connecting the solar panel directly to the battery once the battery reaches a set voltage, then rapidly switching the connection on and off to maintain the correct charge level. This approach is well-suited to smaller systems where the cost and complexity of an MPPT controller are not justified. The BlueSolar PWM range from Victron Energy is built to the same quality standards as their larger product lines, making it a dependable choice for entry-level and budget-conscious installations.
The LCD screen on this model removes the guesswork from system monitoring. Installers and end users can read battery voltage and charge current directly from the unit without needing a smartphone app or additional display hardware. The USB port is a practical addition for mobile and leisure applications, allowing USB devices to be powered without a separate USB charger drawing from the battery.
The load output includes a low-voltage disconnect function, which cuts the connected load when battery voltage drops below a preset threshold. This prevents deep discharge, which is particularly important for lead-acid batteries where repeated deep cycling significantly shortens service life.
Specifications
- SKU: SCC010010050
- System voltage: 12V / 24V (auto-detect)
- Maximum charge current: 10A
- Weight: 0.24 kg
- GTIN: 8719076046189
Applications
- Caravans and motorhomes with a single leisure battery or small battery bank.
- Narrowboats and small sailing vessels with 12V or 24V house battery systems.
- Garden offices, sheds and outbuildings with a small solar panel.
- Remote monitoring stations or security camera installations with modest power requirements.
- Educational and demonstration solar systems.
What Is Included
- 1 x Victron BlueSolar PWM-LCD & USB 12/24V-10A charge controller
Installation Notes
This controller is suitable for installation by a competent person familiar with 12V and 24V DC systems. Ensure the solar panel open-circuit voltage does not exceed the controller's rated input voltage. Connect the battery before connecting the solar panel, and disconnect in reverse order when removing. For installations on boats or vehicles, follow relevant wiring regulations for the application. This unit is not intended for grid-connected systems and does not require G98 or G99 compliance. If in doubt about the suitability of this controller for your system, consult a qualified installer.
