Description

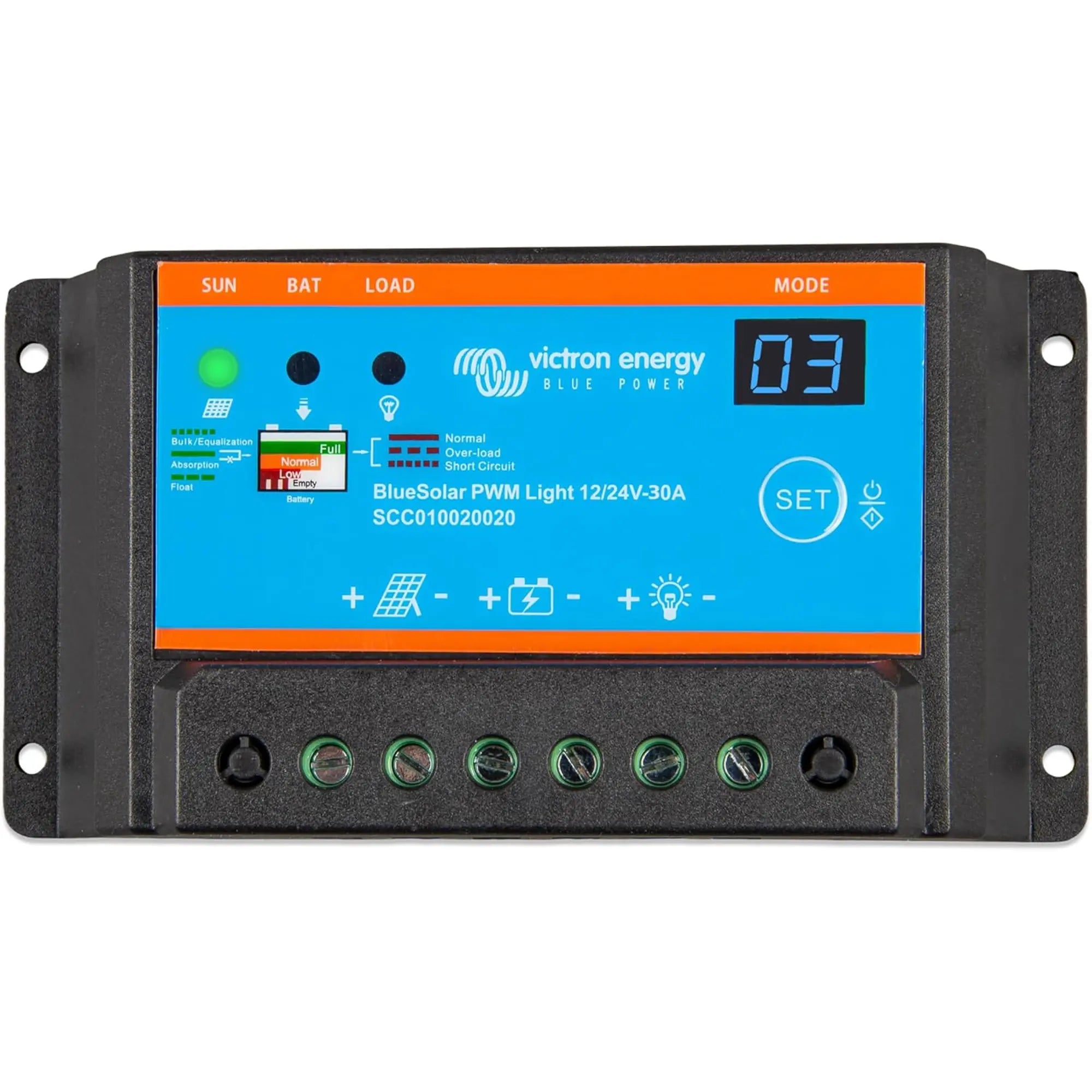

xVictron BlueSolar PWM-Light Charge Controller 12/24V-30A
The Victron BlueSolar PWM-Light 12/24V-30A is a compact, entry-level solar charge controller designed for straightforward off-grid and standalone solar charging applications. It automatically detects 12V or 24V battery systems and regulates charge using pulse width modulation to protect batteries from overcharge. Suited to small solar installations where simplicity and reliability matter more than advanced monitoring.
Key Features
- Automatic 12V or 24V battery voltage detection eliminates manual configuration.
- 30A maximum charge current supports panel arrays up to approximately 400W at 12V or 800W at 24V.
- PWM charge algorithm extends battery life by reducing overcharge stress during the absorption and float phases.
- Compact and lightweight at 0.15kg, making it straightforward to mount in small enclosures or tight spaces.
- LED indicators provide basic status feedback on charging state without requiring additional monitoring hardware.
- Low self-consumption keeps parasitic draw minimal in battery-powered systems.
Product Overview
PWM charge controllers work by connecting the solar panel directly to the battery and switching the connection on and off at high frequency to maintain the battery at the correct voltage. This approach is well-suited to smaller systems where the panel voltage is closely matched to the battery voltage. The BlueSolar PWM-Light range is Victron's stripped-back option: it delivers the core charge control function without the additional communications, load output or programmability found on higher-tier controllers.
At 30A, this controller sits at the upper end of the PWM-Light range and can handle a meaningful panel array for a 12V or 24V system. It is a practical choice for caravans, campervans, small cabins, agricultural equipment, marine auxiliary systems and similar applications where a straightforward, low-cost charge controller is all that is needed. Because PWM controllers do not include an MPPT stage, they are most efficient when the panel's nominal voltage matches the battery bank voltage. For mismatched or higher-voltage panel strings, an MPPT controller would be more appropriate.
The unit auto-detects battery voltage on first connection, so there is no need to set a voltage selector switch. This reduces the risk of incorrect configuration in the field.
Specifications
- SKU: SCC010030020
- Battery voltage: 12V or 24V (auto-detect)
- Maximum charge current: 30A
- Weight: 0.15kg
- GTIN: 8719076025405
Applications
- Campervans and motorhomes with a single leisure battery or small 24V bank.
- Narrowboats and small marine vessels with auxiliary solar panels.
- Off-grid cabins and garden buildings with modest power requirements.
- Agricultural and rural installations such as electric fence energisers and remote monitoring equipment.
- Telecoms and security equipment powered by standalone solar panels.
- Educational and demonstration solar systems.
What Is Included
- 1x Victron BlueSolar PWM-Light Charge Controller 12/24V-30A
Installation Notes
This controller is intended for 12V and 24V nominal battery systems only. Connect the battery terminals before connecting the solar panel, and ensure all wiring is correctly fused in line with the current rating. The controller does not include a load output, so any DC loads must be wired directly to the battery with appropriate overcurrent protection. While this unit is suitable for competent self-installation in low-voltage DC systems, any installation forming part of a larger solar PV system connected to a dwelling should be carried out by a qualified electrician or MCS-accredited installer in accordance with BS 7671 and applicable building regulations.
