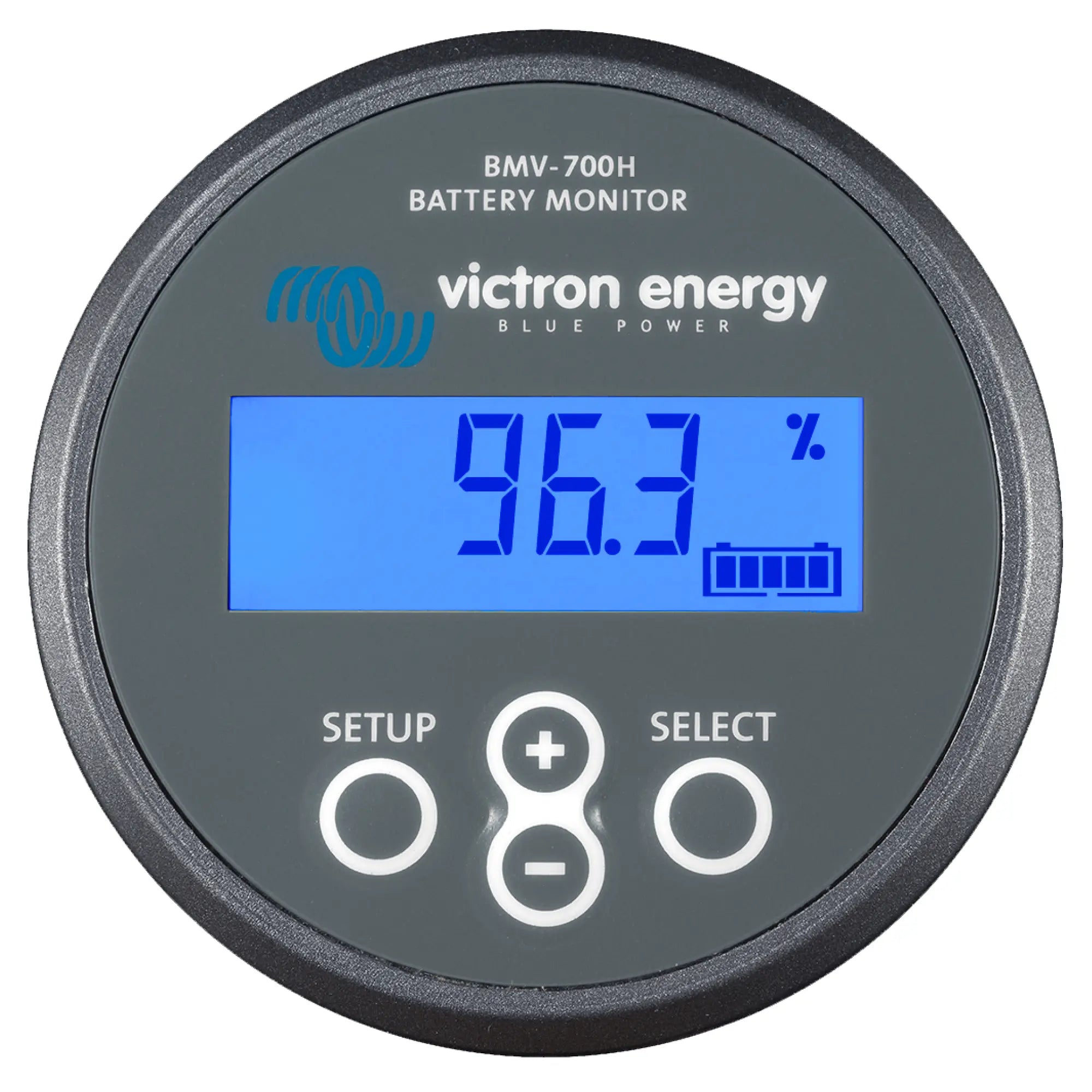

xVictron Energy BMV-700H High Voltage Battery Monitor
The Victron Energy BMV-700H is a high precision battery monitor built specifically for high voltage battery systems operating between 60 and 385 VDC. It measures voltage, current, power, consumed ampere hours and state of charge, giving system operators accurate real time data on battery condition and remaining runtime. Supplied complete with a 500A/50mV shunt in a dedicated high voltage enclosure, connection cabling and mounting hardware, it is ready to install without additional components.
Key Features
- Designed for high voltage battery banks from 60 to 385 VDC.
- Displays battery voltage, current, power, ampere hours consumed and state of charge.
- Calculates remaining time at the current rate of discharge.
- Programmable visual and audible alarm.
- Programmable relay to disconnect non critical loads or start a generator when required.
- 500A quick connect shunt supplied in a purpose built high voltage enclosure.
- Shunt selection capability up to 10,000A for larger installations.
- High current measurement resolution of 10 mA (0.01A).
- Stores detailed historical data for evaluating usage patterns and battery health.
- VE.Direct communication port for connection to Victron GX devices and the VRM online portal.
Product Overview
The BMV-700H tracks the state of charge of a battery bank by integrating the current flowing in and out of the battery through a precision shunt. Rather than simple ampere hour counting, it applies Peukert compensation and charge efficiency factors so that the readings reflect real world battery behaviour under load. In systems where deep discharge shortens battery life and replacement costs are significant, this level of accuracy is what protects the investment in the battery bank.
The "H" designation identifies this as the high voltage member of the BMV-700 family. Where the standard BMV-700 covers conventional 12V, 24V and 48V installations, the BMV-700H is intended for traction battery packs, high voltage industrial banks and other systems operating well above standard low voltage DC. Because of the higher working voltage, the supplied shunt is housed in a dedicated enclosure suitable for the application.
Installation is straightforward. All electrical connections are made to the quick connect PCB on the current shunt, and the shunt connects to the display head with a standard RJ12 cable. The supplied 10 metre RJ12 cable and 2 metre fused battery cable are all that is required, with no additional components needed. The unit ships with both round and square front bezels, a securing ring for rear mounting and screws for front mounting, so it can be fitted neatly into a panel or enclosure in either style.
The VE.Direct port allows the BMV-700H to pass live data to a Victron GX device, making the battery bank visible alongside the rest of the system through the VRM online portal. For remote or unattended sites, this turns local battery data into something that can be monitored and acted on from anywhere.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BMV-700H |
| Manufacturer part number | BAM010700100 |
| GTIN | 8719076020080 |
| Operating voltage range | 60 to 385 VDC |
| Shunt supplied | 500A / 50mV, high voltage enclosure |
| Maximum shunt selection | Up to 10,000A |
| Current measurement resolution | 10 mA (0.01A) |
| Communication port | VE.Direct |
| Shunt to display cable | 10 m UTP RJ12 |
| Power supply cable | 2 m, fused |
| System requirement | Grounded negative systems only, monitor is not isolated from the shunt |
| Weight | 0.74 kg |
Applications
- High voltage battery banks operating between 60 and 385 VDC.
- Traction battery systems in electric vehicles, boats and industrial equipment.
- Large scale off grid and hybrid installations using high voltage DC storage.
- Industrial and commercial backup power systems with high voltage battery strings.
- Remote sites where battery data is monitored off site through a Victron GX device and the VRM portal.
What Is Included
- BMV-700H round head display unit.
- Square bezel overlay for an alternative front appearance.
- Screw ring for rear mounting and screws for front mounting.
- 500A / 50mV shunt in high voltage enclosure with quick connect PCB.
- 10 metre UTP RJ12 cable.
- 2 metre fused battery power supply cable.
- Installation manual.
Installation and Safety Notes
The BMV-700H is intended for high voltage battery systems only, from 60 to 385 VDC. It is not suitable for standard 12V, 24V or 48V installations. For those systems, the BMV-700 or BMV-702 is the correct choice. Please confirm your battery bank voltage before ordering.
The shunt must be installed on the negative conductor of the battery bank, with all negative loads and charge sources connected to the load side of the shunt. Incorrect wiring will produce inaccurate readings. The battery monitor is not isolated from the shunt, so the unit is suitable for systems with a grounded negative only.
High voltage DC systems carry a serious risk of arc flash and electric shock and cannot be safely worked on without the correct training, tools and personal protective equipment. Installation and commissioning must be carried out by a qualified electrician or engineer experienced in high voltage DC battery systems, with correct fusing, isolation, cable sizing and earthing in accordance with local regulations. Where the monitor is connected to a managed lithium battery system, confirm compatibility with the battery management system before connection.
