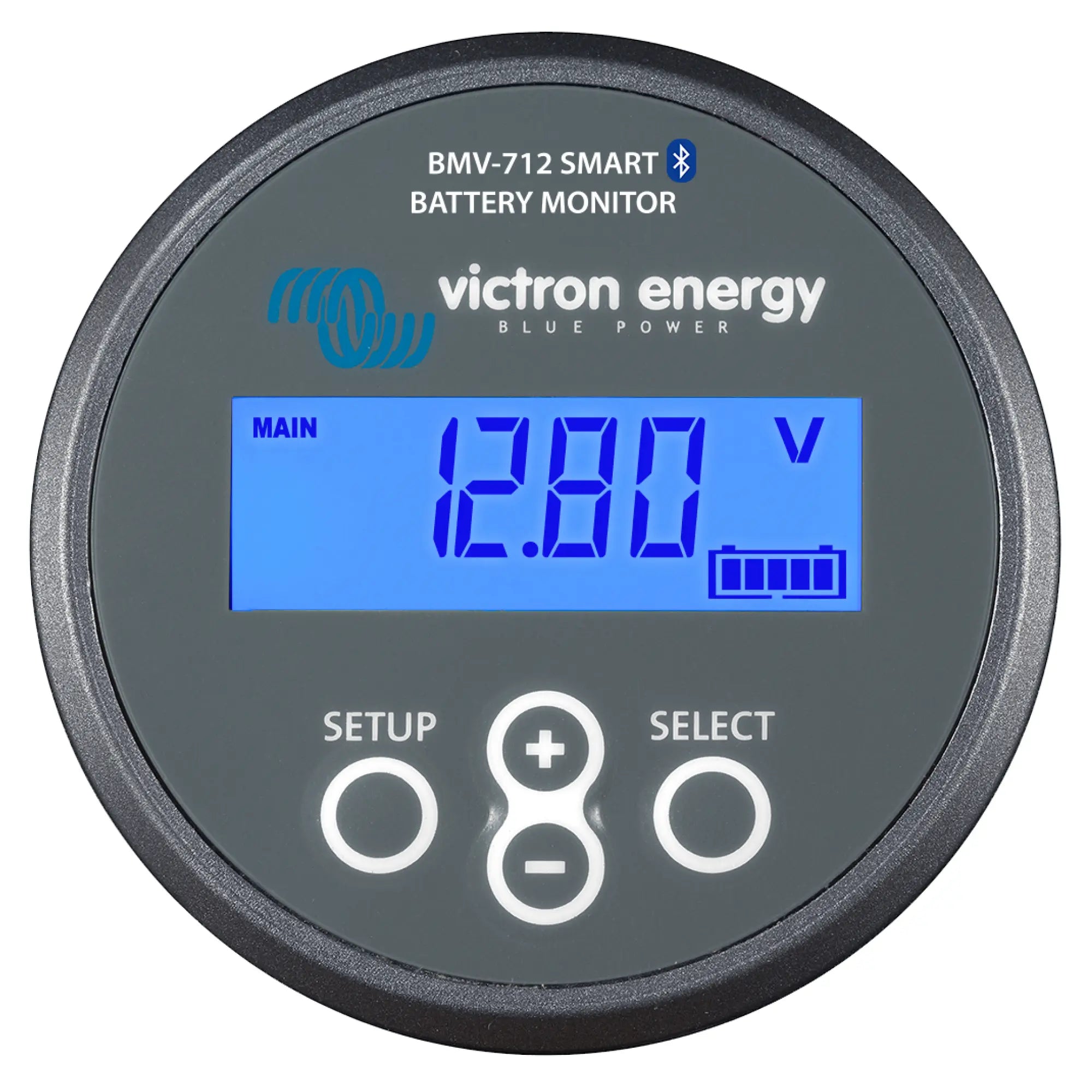

xVictron Energy BMV-712 Smart Battery Monitor
The Victron BMV-712 Smart is a precision battery monitor for 12V, 24V and 48V systems. It measures state of charge, voltage, current, power and consumed amp-hours, and transmits all data wirelessly via Bluetooth to the VictronConnect app. It is suited to professional installers, off-grid system builders and anyone who needs accurate, real-time battery data without relying on a fixed display location.
Key Features
- Built-in Bluetooth for direct connection to the VictronConnect app on iOS and Android, with no additional dongle required.
- Measures state of charge (SOC), voltage, current (up to 500A via included shunt), power in watts, and consumed amp-hours.
- Dual battery voltage monitoring: the second input can monitor an auxiliary battery, starter battery or midpoint voltage on a battery bank.
- Programmable relay output for high/low voltage alarms, SOC thresholds or temperature-triggered switching.
- Backlit display with rotary control for direct readout without a phone or app.
- Compatible with VRM (Victron Remote Management) portal when connected to a GX device, enabling remote monitoring over the internet.
- Synchronises with other Victron devices over VE.Smart Networking, sharing battery data across the system.
Product Overview
The BMV-712 uses a 500A/50mV shunt to measure current flowing in and out of the battery. From this, it calculates state of charge using a coulomb-counting method, which is more accurate than voltage-based estimation, particularly under load or during partial charge cycles. The monitor tracks historical data including the number of charge cycles, deepest discharge, average discharge and time since last full charge, all accessible via the display or VictronConnect.
The integrated Bluetooth module (Bluetooth Smart) allows configuration and monitoring directly from a smartphone. Parameters such as battery capacity, Peukert exponent, charge efficiency factor and tail current can all be set through VictronConnect without opening a panel or using a laptop. This makes commissioning and ongoing adjustment straightforward on installed systems.
The programmable relay is a practical feature for real installations. It can be configured to trigger an alarm, start a generator, or disconnect a load based on SOC, voltage or temperature thresholds. The auxiliary input adds flexibility for dual-battery setups common in marine, vehicle and off-grid applications, where monitoring a starter battery alongside a house bank is a standard requirement.
Specifications
- SKU: BAM030712000R
- GTIN: 8719076037798
- Weight: 0.627 kg
- Shunt rating: 500A / 50mV (included)
- Compatible battery voltages: 12V, 24V, 48V
- Wireless connectivity: Bluetooth Smart (BLE)
- App compatibility: VictronConnect (iOS and Android)
- Display: Backlit LCD with rotary encoder
- Auxiliary input: Second voltage measurement (starter battery, midpoint or temperature with optional sensor)
- Relay output: Programmable, single-pole
Applications
- Off-grid solar systems requiring accurate battery state of charge monitoring.
- Marine installations with dual-battery setups (house bank and starter battery).
- Motorhome and campervan leisure battery monitoring.
- Backup power and UPS systems where battery health tracking is critical.
- Commercial off-grid installations integrated with Victron GX devices and VRM remote monitoring.
What Is Included
- BMV-712 Smart display unit
- 500A / 50mV shunt
- 10 metre connection cable (between shunt and display)
- Temperature sensor connection capability (sensor sold separately)
- Mounting hardware
Installation Notes
The BMV-712 shunt must be installed on the negative conductor between the battery negative terminal and all other negative connections in the system. Incorrect shunt placement will result in inaccurate readings. While the unit itself is low-voltage and does not require a certified electrician for basic installation, it should be fitted as part of a professionally designed system. For off-grid solar or marine installations, a qualified installer familiar with Victron system architecture is recommended. No G98 or G99 grid compliance is applicable to this product.
