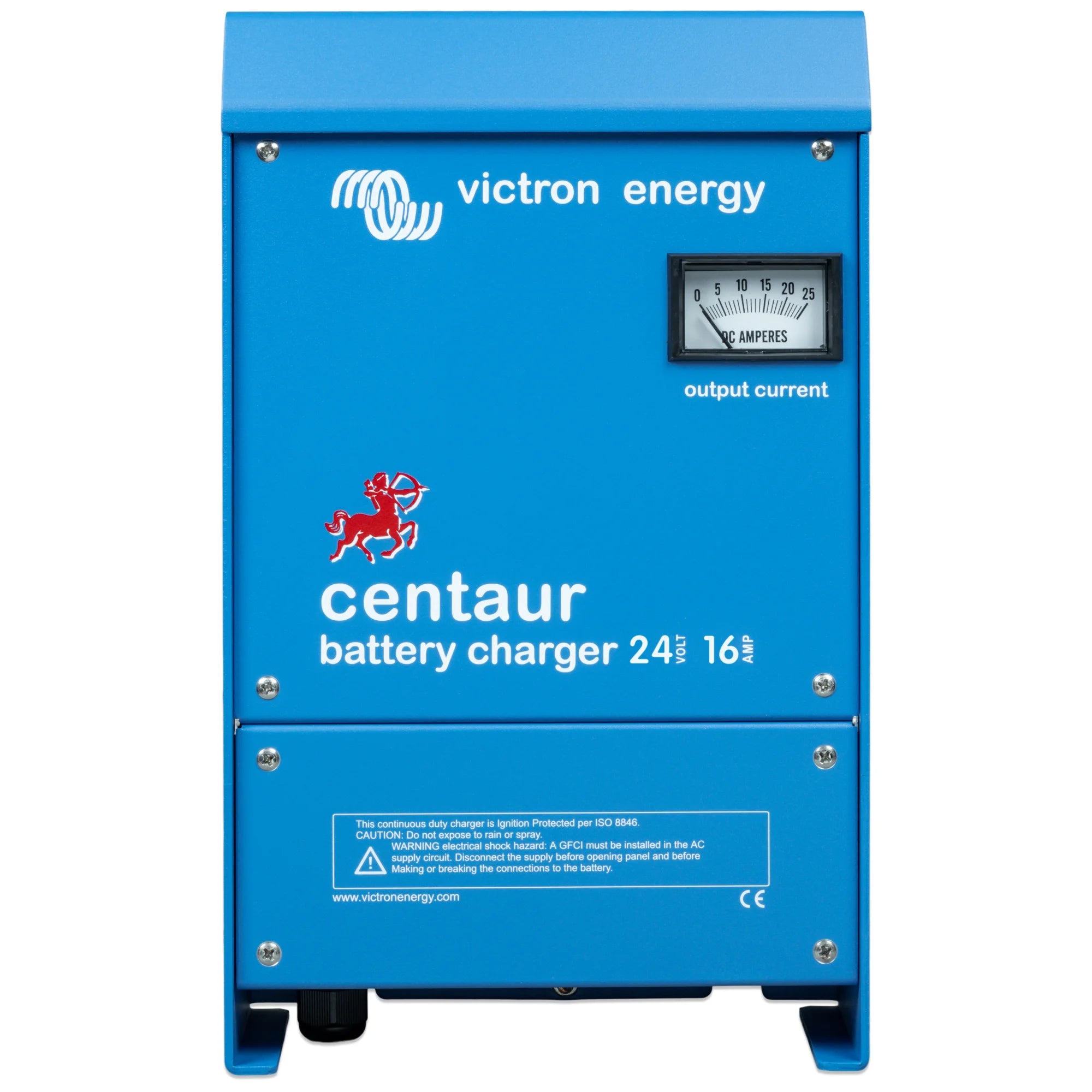

xVictron Centaur Charger 24V/16A (3 Outputs) 120-240V
The Victron Centaur Charger 24/16 is a three-output, mains-powered battery charger designed for professional marine, vehicle and off-grid applications. It delivers 16A of charge current at 24V across three independently managed battery banks, accepting a wide input voltage range of 120 to 240V AC for use in both UK and international installations.
Key Features
- 16A charge current at 24V with three separate output channels for simultaneous multi-bank charging.
- Wide AC input range of 120 to 240V makes it suitable for UK, European and North American supply voltages.
- Four-stage adaptive charging algorithm (bulk, absorption, float, storage) extends battery service life.
- Compatible with gel, AGM, flooded lead-acid and calcium battery types via selectable charge profiles.
- Temperature-compensated charging adjusts output voltage automatically to ambient conditions.
- Compact and lightweight at 4.3 kg, suitable for installation in confined spaces on vessels or vehicles.
- Built-in battery safe mode prevents deep discharge damage when connected to a battery under load.
Product Overview
The Centaur range uses an adaptive four-stage charge cycle. During bulk, the charger delivers full current until the battery reaches the absorption voltage. The absorption phase then holds voltage constant while current tapers, ensuring a full charge without overcharging. Float and storage modes maintain the battery at a safe resting voltage for long-term connection. This approach is particularly important in marine and vehicle environments where batteries may sit unused for extended periods.
Three independent outputs allow the charger to service a main starter battery and one or two auxiliary banks simultaneously, each managed according to its own state of charge. This removes the need for separate chargers or manual switching between banks. The 120 to 240V input tolerance means the same unit can be used at a UK shore power connection, a European marina or a North American supply without modification.
Victron's temperature compensation circuit monitors ambient temperature and adjusts the charge voltage accordingly. In cold conditions, a higher voltage is applied to ensure a full charge; in warm conditions, the voltage is reduced to prevent gassing and electrolyte loss. This is a practical benefit in installations where the charger is mounted in an engine bay or uninsulated compartment subject to wide temperature swings.
Specifications
- SKU: CCH024016000
- Output voltage: 24V
- Charge current: 16A
- Number of outputs: 3
- AC input voltage: 120 to 240V
- Weight: 4.3 kg
- GTIN: 8719076021544
Applications
- Marine vessels with separate starter, bow thruster and domestic battery banks.
- Motorhomes and coaches requiring simultaneous charging of chassis and habitation batteries.
- Off-grid cabins and site offices with shore power or generator supply.
- Commercial vehicles with auxiliary battery systems for refrigeration or tail-lift equipment.
- Installations requiring a single charger to service multiple 24V battery banks.
What Is Included
- Victron Centaur Charger 24/16 (3 outputs) unit
Installation Notes
Installation should be carried out by a qualified electrician or marine electrical engineer. The unit connects to a 120 to 240V AC mains supply and must be wired in accordance with local wiring regulations. In the UK, this means compliance with BS 7671 (IET Wiring Regulations). For marine installations, follow the relevant ISO or NMEA standards for on-board electrical systems. Ensure adequate ventilation around the unit and that DC output cabling is rated for the charge current. Battery type must be correctly selected via the charge profile settings before commissioning.
