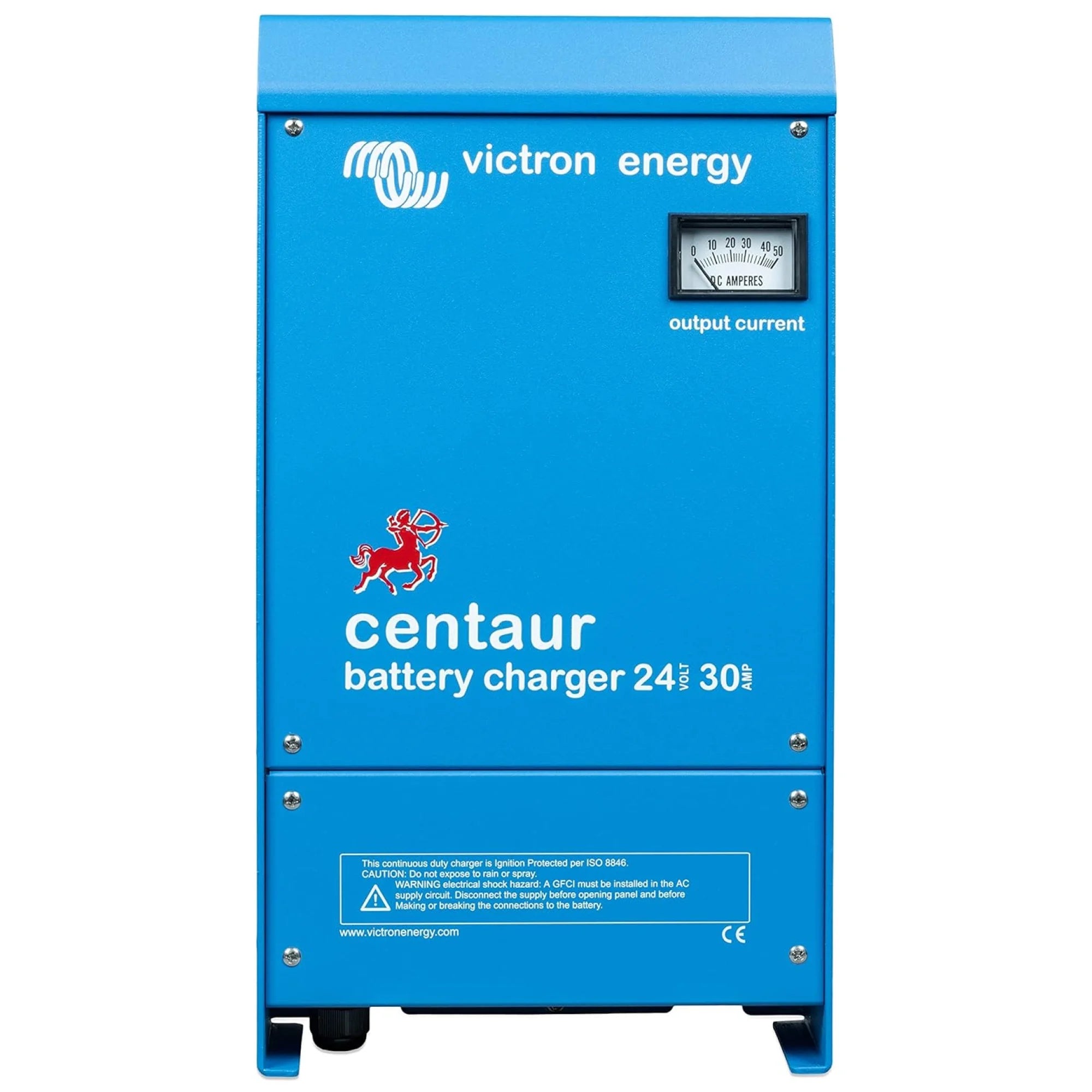

xVictron Centaur Charger 24V/30A (3 Outputs) 120-240V
The Victron Centaur 24/30 is a three-output mains-powered battery charger designed for professional and commercial applications where multiple battery banks need to be charged simultaneously. It accepts a wide input voltage range of 120 to 240V AC, making it suitable for use across the UK, Europe and North America. It is well suited to marine, vehicle, off-grid and industrial installations where reliable, automatic battery charging is required.
Key Features
- 30A total charge output at 24V with three independent output channels for charging separate battery banks.
- Wide AC input range of 120 to 240V accommodates varying mains supply voltages without manual adjustment.
- Automatic adaptive four-stage charging algorithm: bulk, absorption, float and storage.
- Temperature-compensated charging adjusts output voltage based on battery temperature to prevent over or undercharging.
- Compatible with a wide range of lead-acid battery types including flooded, gel and AGM.
- Fully sealed and protected against reverse polarity, short circuit and high temperature.
- Compact and lightweight at 5kg, suitable for permanent installation in confined spaces.
Product Overview
The Centaur charger uses an adaptive charging algorithm that automatically adjusts the absorption time based on the previous charge cycle. If a battery was heavily discharged, the charger extends the absorption phase accordingly. If the battery was only lightly used, absorption is shortened to reduce gassing and heat. This approach extends battery service life compared to fixed-time chargers.
The three-output design allows the charger to maintain a main service battery bank while simultaneously keeping one or two auxiliary banks topped up. Each output is independently managed, so the charger can deliver full current to a depleted bank while maintaining float on a bank that is already charged. This is particularly useful on vessels or vehicles where starter, service and bow thruster batteries must all be kept in good condition.
The 120 to 240V AC input range means the unit operates correctly whether connected to a UK 230V supply, a European 220V supply or a North American 120V shore power connection. No manual voltage selection is required.
Technical Specifications
| Specification | Value |
| SKU | CCH024030000 |
| Output Voltage | 24V |
| Output Current | 30A |
| Number of Outputs | 3 |
| AC Input Voltage Range | 120 to 240V AC |
| Weight | 5 kg |
| GTIN | 8719076021551 |
Applications
- Marine installations requiring simultaneous charging of starter, service and auxiliary battery banks.
- Motorhomes, coaches and commercial vehicles with multiple 24V battery systems.
- Off-grid cabins and remote installations connected to a generator or shore power supply.
- Industrial and telecoms backup power systems requiring automatic battery maintenance.
- Rental fleets and plant equipment where batteries must be kept charged between uses.
What Is Included
- Victron Centaur Charger 24/30 (3 outputs) unit
Installation Notes
Installation should be carried out by a qualified electrician. The unit must be connected to a correctly fused and earthed AC supply. Ensure the battery bank voltage matches the 24V output before connecting. Adequate ventilation around the unit is required to prevent heat build-up during extended charge cycles. For marine installations, follow the relevant BMEA or IEC wiring standards. Do not install in locations exposed to direct water ingress.
