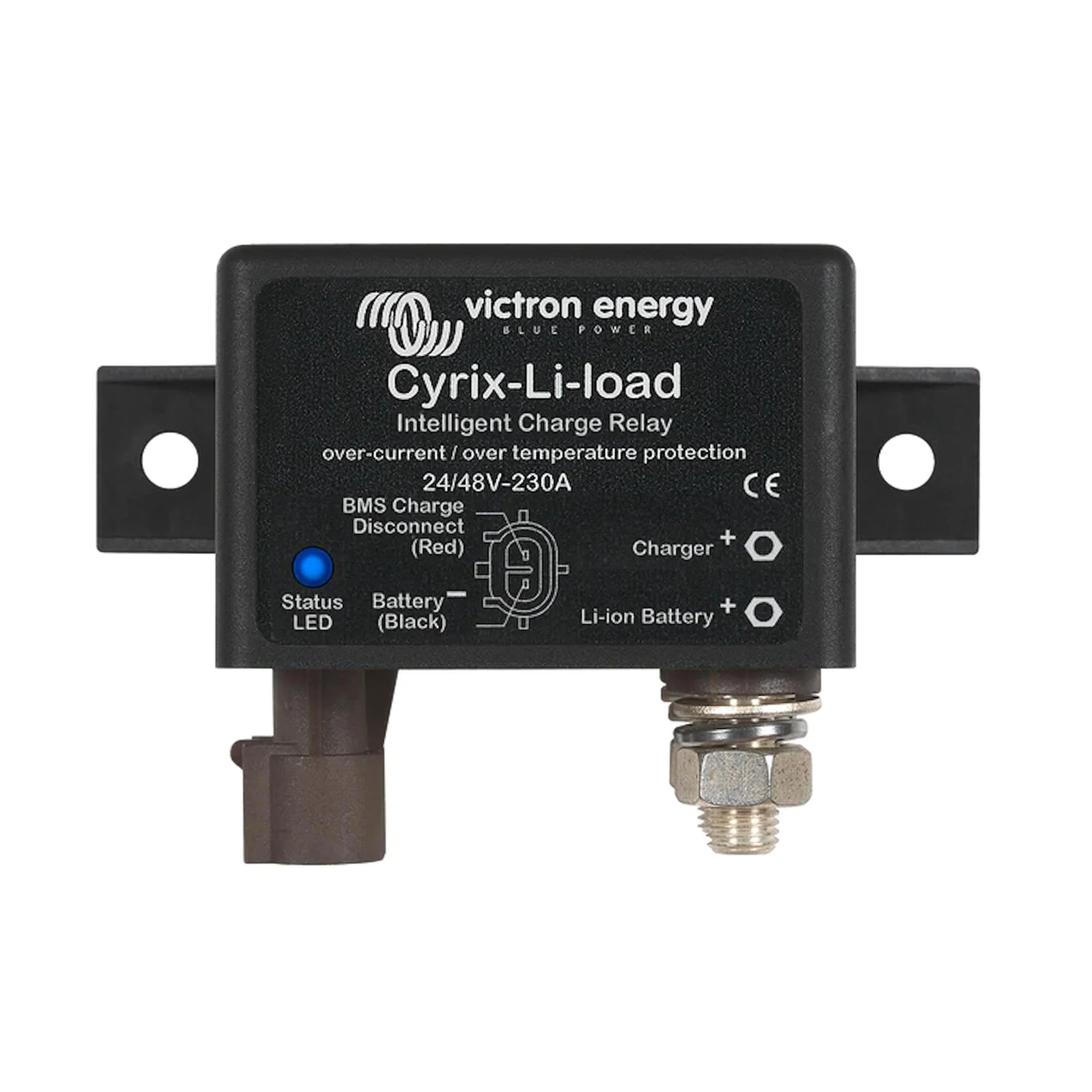

xCyrix-Li-load 24/48V-230A Intelligent Charge Relay
The Cyrix-Li-load is a microprocessor-controlled battery isolator and load relay designed for lithium battery systems operating at 24V or 48V. It connects and disconnects loads based on battery state, protecting lithium cells from over-discharge without requiring manual intervention. Suitable for marine, vehicle and off-grid installations where load management is critical.
Key Features
- Rated at 230A continuous current, suitable for high-load DC circuits at 24V or 48V.
- Microprocessor-controlled switching logic responds to battery voltage thresholds rather than simple relay timers.
- Designed specifically for lithium battery chemistries, with disconnect behaviour matched to Li-ion and LiFePO4 charge profiles.
- Automatically disconnects loads when battery voltage drops to a programmable low-voltage threshold, preventing deep discharge damage.
- Reconnects loads once the battery has recovered to a safe voltage level, without manual reset.
- Compact and lightweight at 0.3 kg, suitable for installation in confined spaces.
- Compatible with Victron lithium battery systems and BMS communication where applicable.
Product Overview
The Cyrix-Li-load operates by monitoring battery voltage and switching a high-current relay to connect or isolate the load circuit. Unlike a standard battery combiner, this unit is built around the specific voltage windows of lithium batteries. It will not reconnect a load prematurely after a low-voltage event, which is a common cause of repeated deep discharge in lithium systems.
At 230A, the relay handles substantial DC loads including inverters, winches, bow thrusters and high-draw appliances. The 24/48V dual-voltage compatibility makes it applicable across a wide range of system designs without requiring separate part numbers for each voltage. The microprocessor logic also filters out brief voltage dips, so transient loads do not trigger unnecessary disconnections.
This unit is part of Victron's Cyrix range, which is widely used in marine, motorhome and off-grid installations. It is not a BMS replacement but works alongside a BMS to manage load-side disconnection based on voltage conditions.
Specifications
- SKU: CYR020230450
- GTIN: 8719076022299
- Voltage: 24V / 48V
- Continuous current rating: 230A
- Weight: 0.3 kg
- Battery chemistry: Lithium (Li-ion, LiFePO4)
Applications
- Load disconnection in 24V or 48V lithium battery systems on narrowboats, yachts and motorhomes.
- Off-grid cabins and mobile installations where automatic load shedding is required.
- Commercial vehicle auxiliary power systems using lithium batteries.
- Any DC system where loads must be isolated to prevent lithium battery over-discharge.
What Is Included
- 1 x Cyrix-Li-load 24/48V-230A intelligent charge relay unit
Installation Notes
Installation should be carried out by a qualified electrician or experienced marine/vehicle electrical engineer. The unit must be wired in line with the load circuit, not the charge circuit. Ensure cable sizing is appropriate for 230A continuous current and that suitable fusing is installed on the battery side. This unit is intended for lithium battery systems only and should not be used with lead-acid batteries without confirming voltage threshold compatibility. For off-grid and marine installations, follow applicable wiring regulations and standards.
