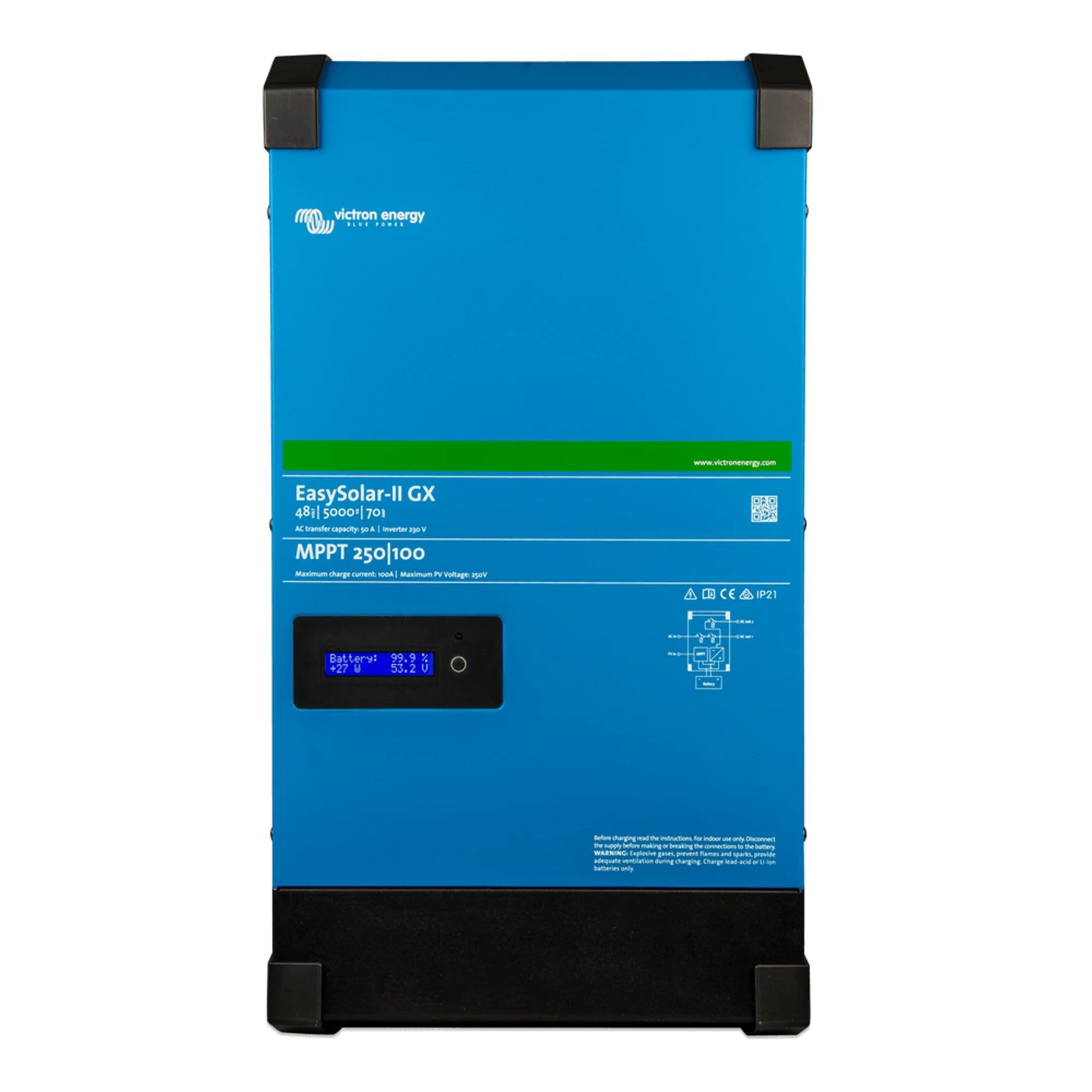

xVictron EasySolar-II 48/6000/100-50 MPPT 250/100 GX
The EasySolar-II 48/6000/100-50 MPPT 250/100 GX is an all-in-one solar inverter charger from Victron Energy, combining a 6.5 kVA inverter, 100 A MPPT solar charge controller, 50 A AC charger, and the GX monitoring platform in a single wall-mounted unit. It is designed for off-grid and self-consumption installations where space, simplicity and integration matter. The 48 V battery system and 250 V/100 A MPPT input make it well suited to larger residential and light commercial battery storage systems.
Key Features
- 6,500 VA continuous inverter output at 230 V AC, suitable for demanding loads in off-grid and backup applications.
- Integrated 100 A MPPT solar charge controller with a maximum PV open-circuit voltage of 250 V, accepting up to 5,800 W of solar input.
- Built-in 50 A AC battery charger for grid or generator charging of the 48 V battery bank.
- Integrated GX device (equivalent to a Color Control GX) provides onboard monitoring, VRM portal connectivity, and system control without additional hardware.
- Compatible with a wide range of 48 V battery chemistries including lithium-ion (with appropriate BMS), AGM, gel and flooded lead-acid.
- PowerAssist function allows the unit to supplement grid or generator power during peak loads, preventing overload of a limited AC source.
- Supports generator auto-start via the GX interface and integrates with Victron's wider ecosystem including Venus OS, VRM and DVCC.
- Single-phase 230 V output with transfer switch for seamless changeover between grid, generator and inverter modes.
Product Overview
The EasySolar-II consolidates what would otherwise require four separate components into one enclosure: inverter/charger, MPPT controller, AC charger and GX monitoring. For installers, this reduces wiring complexity, cabinet space and commissioning time. The GX platform is pre-integrated, so there is no need to wire a separate CCGX or Cerbo GX to the system. VRM remote monitoring is available out of the box via Ethernet or optional Wi-Fi dongle.
The 250 V/100 A MPPT input supports a wide range of PV string configurations on a 48 V battery system. The MPPT algorithm tracks maximum power point continuously, and the 100 A output current means the controller can handle the full rated solar input without derating. The 50 A AC charger is configurable in current limit, which is useful when charging from a generator with a restricted output rating. PowerAssist allows the inverter to add battery power on top of a limited AC input, so a smaller generator can support a larger load without tripping.
The unit ships ready for wall mounting and includes AC and DC connection points. All configuration is done through the GX touchscreen interface or remotely via VRM. The EasySolar-II is supported by Victron's full software ecosystem, including DVCC (Distributed Voltage and Current Control) for managed lithium battery integration.
Technical Specifications
| Parameter | Value |
| SKU | PMP482657010 |
| Battery Voltage | 48 V |
| Inverter Output Power | 6,500 VA / 6,000 W |
| AC Output Voltage | 230 V AC, single phase |
| AC Charger Output | 50 A |
| MPPT Charge Controller | 100 A |
| Max PV Open-Circuit Voltage | 250 V |
| Max PV Input Power | 5,800 W |
| Integrated GX Device | Yes (Color Control GX equivalent) |
| Weight | 39.6 kg |
| GTIN | 8719076073987 |
Applications
- Off-grid residential systems requiring a high-capacity all-in-one inverter charger with integrated monitoring.
- Self-consumption and home storage installations on 48 V lithium or lead-acid battery banks.
- Backup power systems where grid supply is unreliable and generator integration is required.
- Light commercial off-grid installations where panel space and wiring complexity need to be minimised.
- Retrofit into existing Victron systems where VRM monitoring and DVCC managed battery control are already in use.
What Is Included
- EasySolar-II 48/6000/100-50 MPPT 250/100 GX unit
- Wall mounting hardware
- Documentation pack
Installation Notes
The EasySolar-II must be installed by a qualified electrician or MCS-accredited installer. At 39.6 kg, two-person lifting is required for wall mounting. DC wiring to the battery bank must be correctly fused and sized for the full inverter output current at 48 V. PV string voltage must not exceed 250 V open-circuit under any temperature condition. If connecting to a managed lithium battery, confirm BMS compatibility and enable DVCC in the GX settings. For any grid-connected or export configuration in the UK, ensure compliance with G98 or G99 as applicable and notify your Distribution Network Operator before commissioning.
