Description

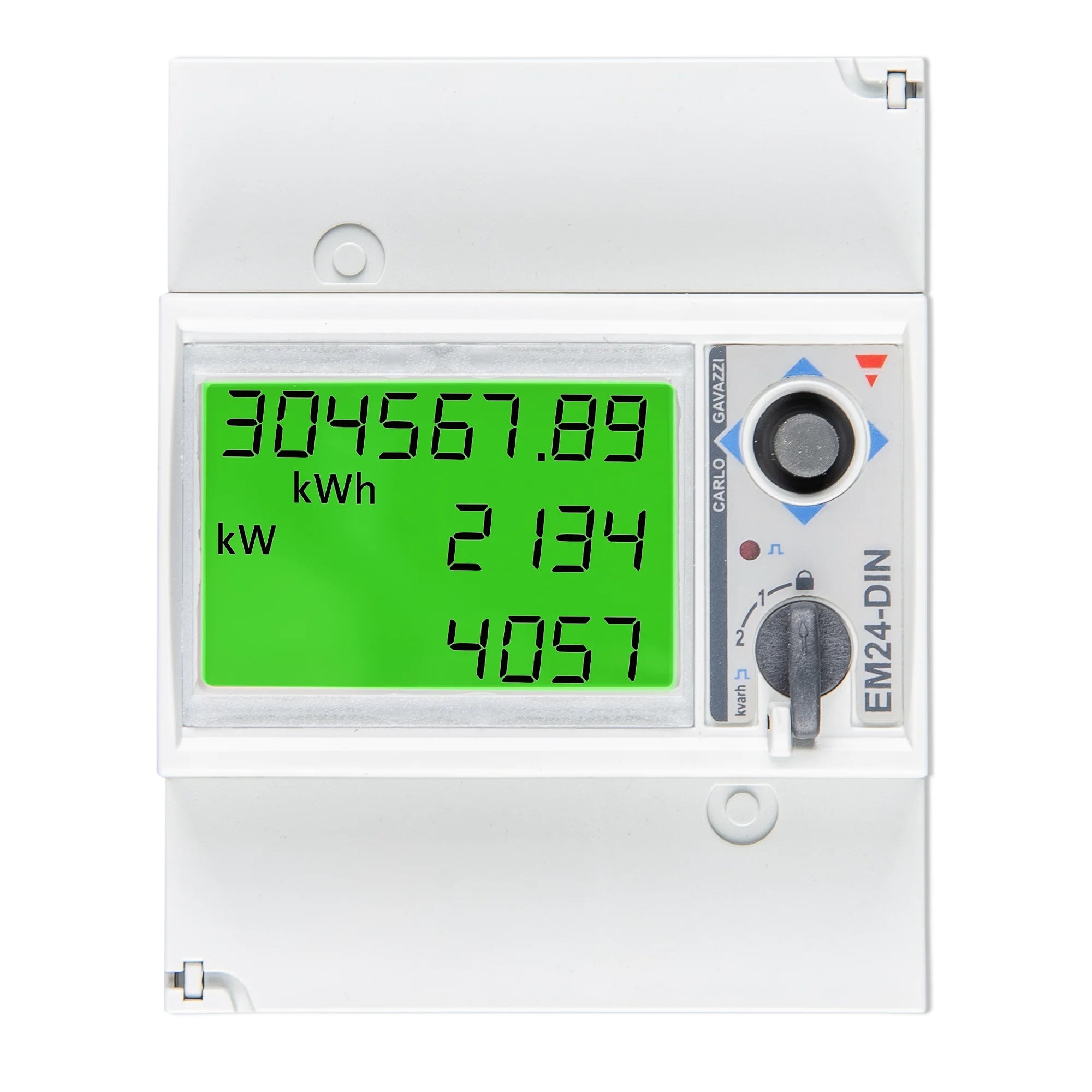

xVictron Energy Meter EM24 3 Phase Ethernet (Max 65A/Phase)
The Victron EM24 is a 3-phase energy meter designed for use with Victron GX devices. It measures energy consumption and generation across all three phases, giving installers and system operators accurate, real-time data for monitoring and grid management. It connects via Ethernet and is suited to commercial, industrial and advanced residential solar installations.
Key Features
- 3-phase energy measurement with a maximum input of 65A per phase.
- Ethernet connectivity for integration with Victron GX devices and the VRM portal.
- Measures both import and export energy, making it suitable for grid-tied solar monitoring and feed-in tracking.
- Compatible with the full range of Victron GX products including the Cerbo GX and Venus GX.
- DIN rail mountable for clean, professional panel installation.
- Supports monitoring of grid consumption, solar production or load circuits depending on installation position.
- SKU: REL200200100 | GTIN: 8719076051268
Product Overview
The EM24 connects directly to a Victron GX device over Ethernet, providing continuous energy data without the need for additional converters or gateways. This makes it straightforward to integrate into existing Victron systems. The meter reads bidirectional energy flow, so it correctly accounts for both consumption from the grid and export back to it.
At 65A per phase, the EM24 covers the majority of commercial and larger residential three-phase installations without the need for external current transformers at that current range. For higher current applications, external CTs would be required. The meter is designed to work within the Victron ecosystem, with data visible through the GX device display and the VRM online portal for remote monitoring.
Positioning the meter at the grid connection point allows the GX system to calculate self-consumption, grid import and export figures accurately. It can also be placed on a sub-circuit to monitor a specific load or generator input, depending on the system design.
Specifications
- SKU: REL200200100
- Phases: 3
- Maximum current: 65A per phase
- Connection: Ethernet
- Mounting: DIN rail
- Weight: 0.351 kg
- GTIN: 8719076051268
Applications
- Grid consumption and export monitoring in 3-phase solar PV systems.
- Self-consumption optimisation in commercial Victron installations.
- Feed-in metering for systems with grid export capability.
- Sub-metering of specific loads or circuits within a larger installation.
- Generator monitoring in off-grid or hybrid 3-phase systems.
- Integration with Victron VRM portal for remote energy monitoring and reporting.
What Is Included
- 1 x Victron Energy Meter EM24 3-phase Ethernet unit
Installation Notes
The EM24 must be installed by a qualified electrician. It is connected directly into the AC distribution board or consumer unit at the measurement point, which involves live mains wiring. For grid-connected solar PV systems in the UK, installation must comply with G98 or G99 requirements as applicable, and should be carried out by an MCS-accredited installer or suitably qualified engineer. Ensure the GX device firmware is up to date to confirm compatibility with the EM24 before installation.
