Description

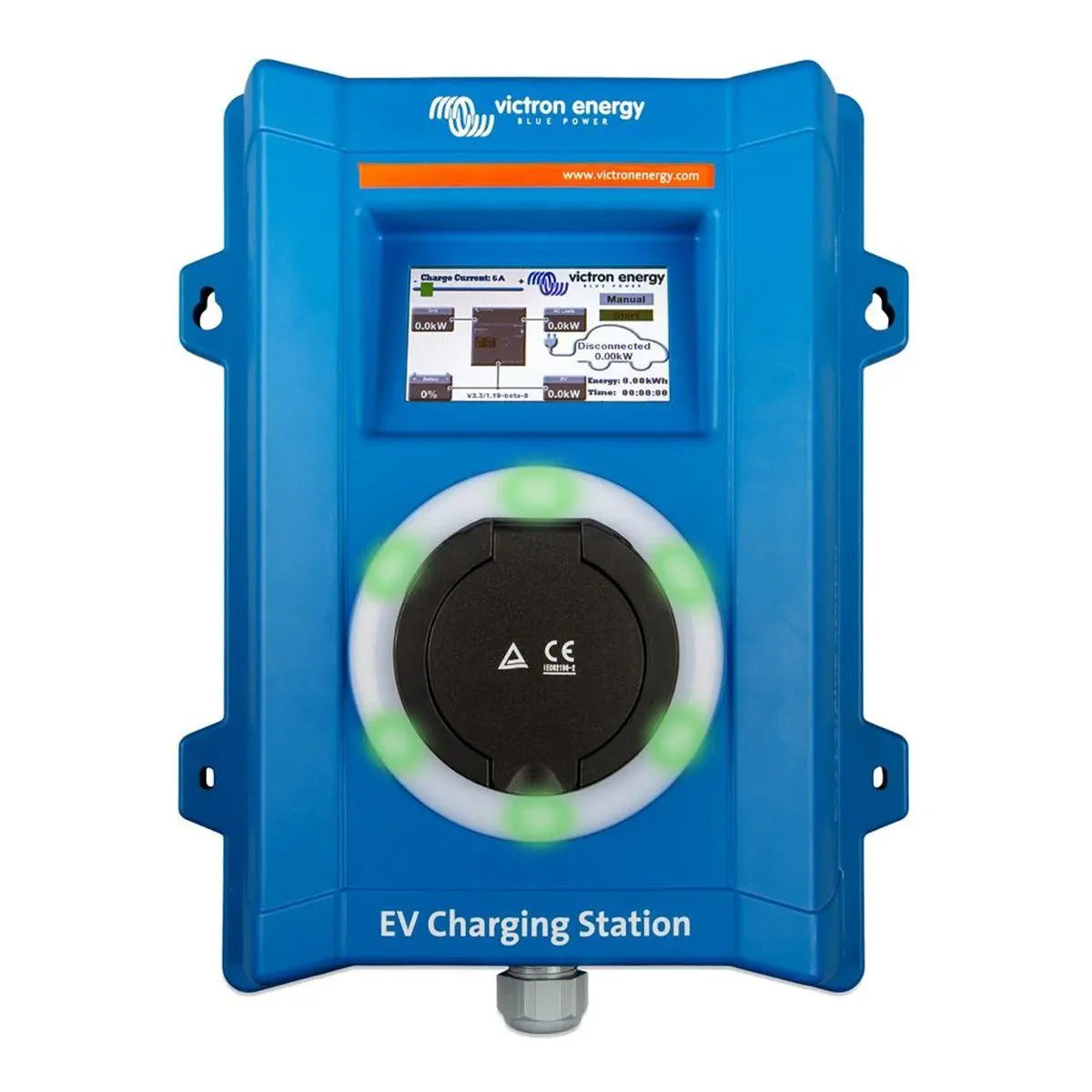

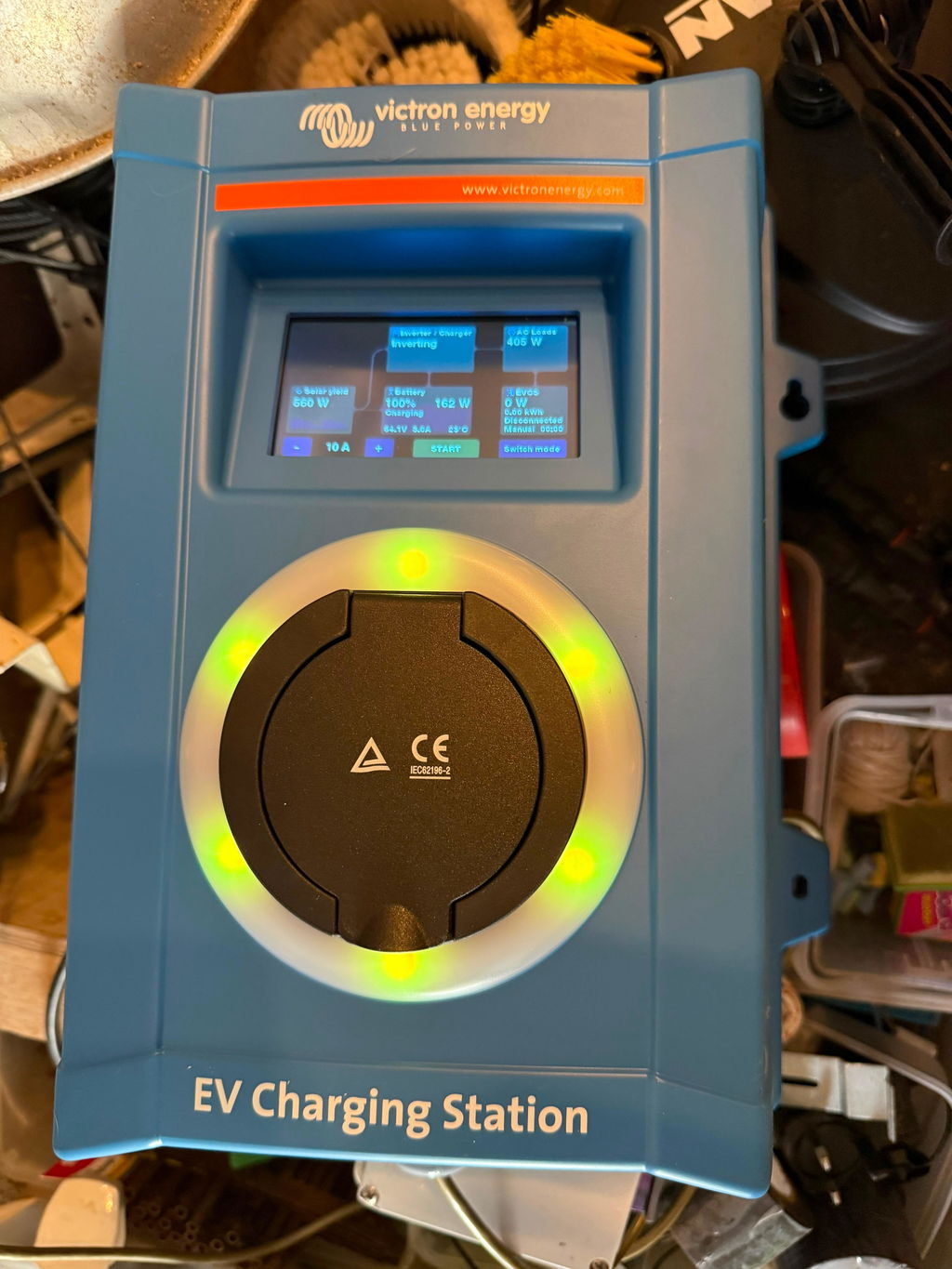

xThe EV Charging Station has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase mode or 7.3kW in single-phase mode.

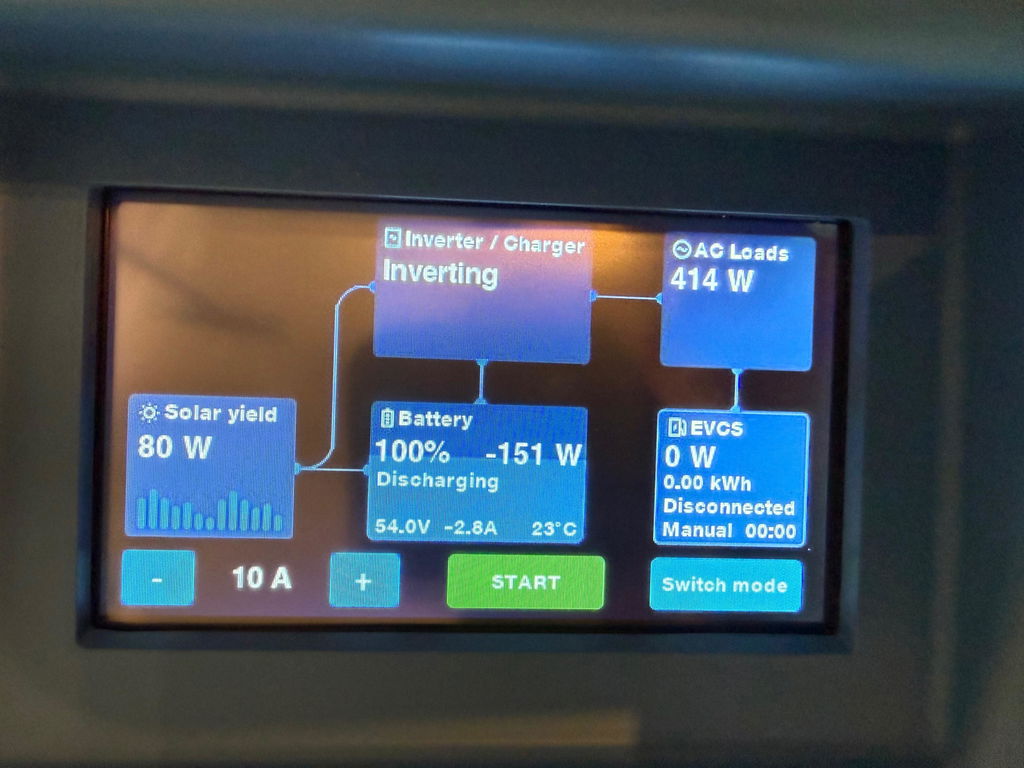

It incorporates a 4.3-inch LCD touchscreen for monitoring and control.
Fully programmable RGB. Light Ring around the charging port, to quickly determine the device state. It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
High power EV Charging Station: The EV Charging Station has three-phase and single-phase capabilities. It delivers a maximum of 22 kW AC in three-phase or 7.3 kW in single-phase mode
WiFi Communication WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point or Station mode for both the initial setup and monitoring
Light Ring for fast viewing of the device state. Fully programmable RGB Light Ring around the charging port, to quickly determine the device state. It can be programmed from the integrated web interface to display different light effects based on the current state (disconnected, charging, charged, etc)
THREE WORKING MODES ARE AVAILABLE:
1. Manual Mode to configure output current Manual mode allows configurable output current between 6-32 A. The charging power is controlled in two ways: by using the slider on the LCD touchscreen or by using its web page. It allows to manually start or stop the charging process when a vehicle is connected to the charging station.
2. Automatic Mode to ensure maximum PV system efficiency Detects when excess power is available and uses only that power to charge the vehicle.
3. Scheduled Mode to charge the EV at certain time intervals A fully programmable scheduler allows charging at different time intervals, for example at certain times during the night when grid energy is cheaper.

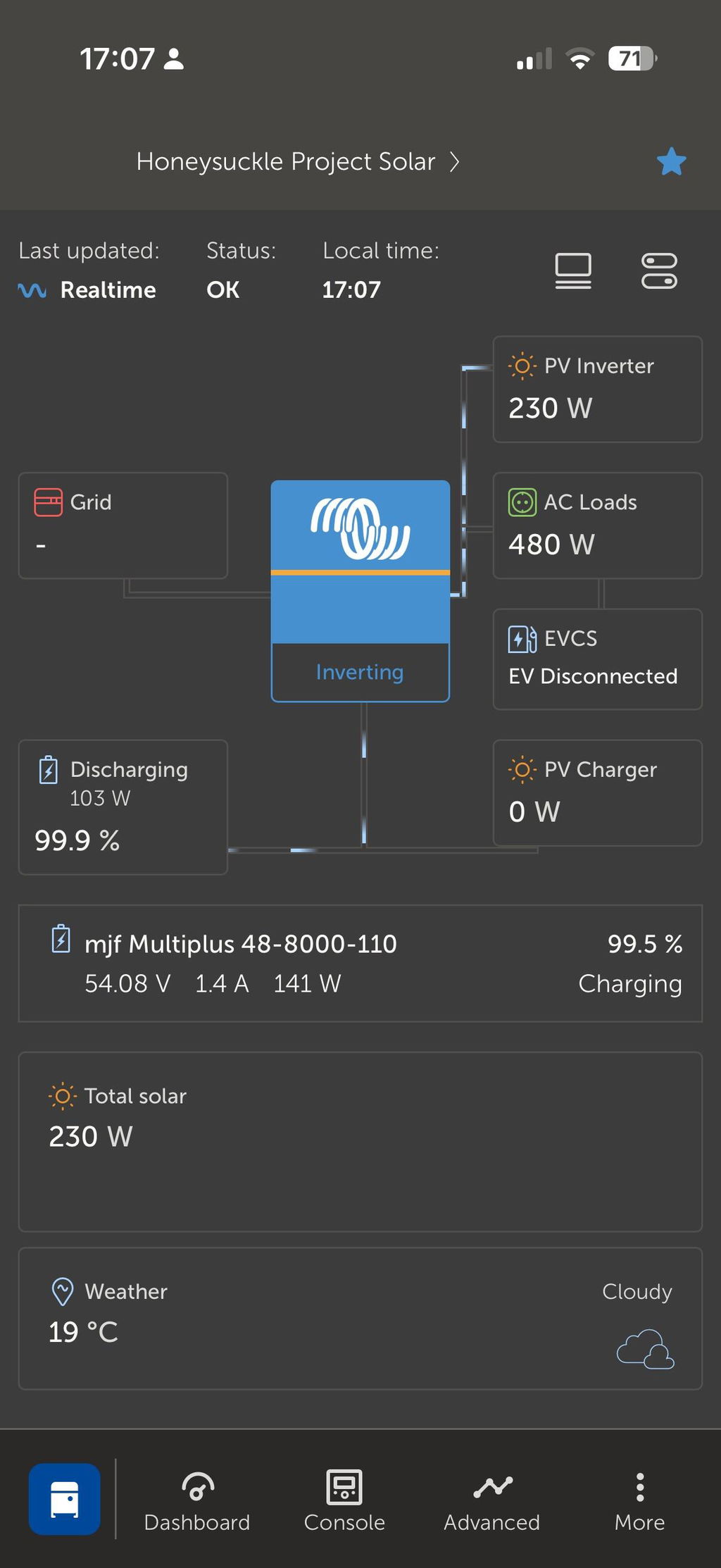

Integration with GX devices and VRM Control and monitor the EV Charging Station from a GX device touch display and the Remote Console and the VRM Portal. The VRM Portal also offers real-time and custom reports for configurable time periods.
Specifications
x| Phase Number | 3-phase |
| Model | HM10332 |
| AC Power Input Rating | 400VAC, 50/60Hz |
| Power Wiring | 5 Wire - L1, L2, L3, N plus PE |
| AC Output Rating Power | 22kW |
| AC Output Rating Current | 32A |
| Connector Type | IEC 62196-2, Type 2 plug + 5m charging cable |
| Connector Mechanical Operating Life | >= 10000 times (Plug in & pull out with no load) |
| USER INTERFACE & CONTROL | |
| Charging Control | APP-controlled, Butto-controlled, Card-controlled |
| Display screen | 3.5-inch LCD screen (Optional) |
| Indicators | 1 LED Indicator with multiple colors ~Power/Charging/Fault/Network |
| Communication interface (Optional) | Wifi (2.4/5GHz) or Bluetooth |
| ENVIRONMENTAL | |
| Storage Temperature | -40 to 75ºC ambient |
| Operating Temperature | -30 to 55ºC ambient |
| Operating Humidity | Up to 95% non-condensing |
| Altitude | <= 2000m |
| PROTECTION | |
| IP Code | IP65 |
| Short Circuit Protection | Yes |
| Over Load Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Over-temp Protection | Yes |
| Leakage Protection | Yes, Type B Residual Current Monitoring Unit built-in |
| Ground Protection | Yes, designed for TN-C-S power supply system |
| No earth electrodes Protection | Optional, designed for the UK and other regions using TN-C power supply system |
| OPTIONAL FUNCTION | |
| Load balance via RS-485 | Work with RS-485 version M3 Charge-Mate (require additional purchase) |
| WALLBOX MECHANICAL | |
| Dimension (HxWxD, mm) | 400x210x145 |
| Weight | < 9Kg |
| Charging Cable Length (total) | 5m or customize length (<= 7.5m) An external Case B charging socket without charging cable is optional |
| Enclosure Material | PC |
| MOUNTING POEL MECHANICAL (Optional) | |
| Dimension (HxWxD, mm) | 1117x240x112 |
| Weight | < 5Kg |
| Enclosure Material | Stainless steel |
