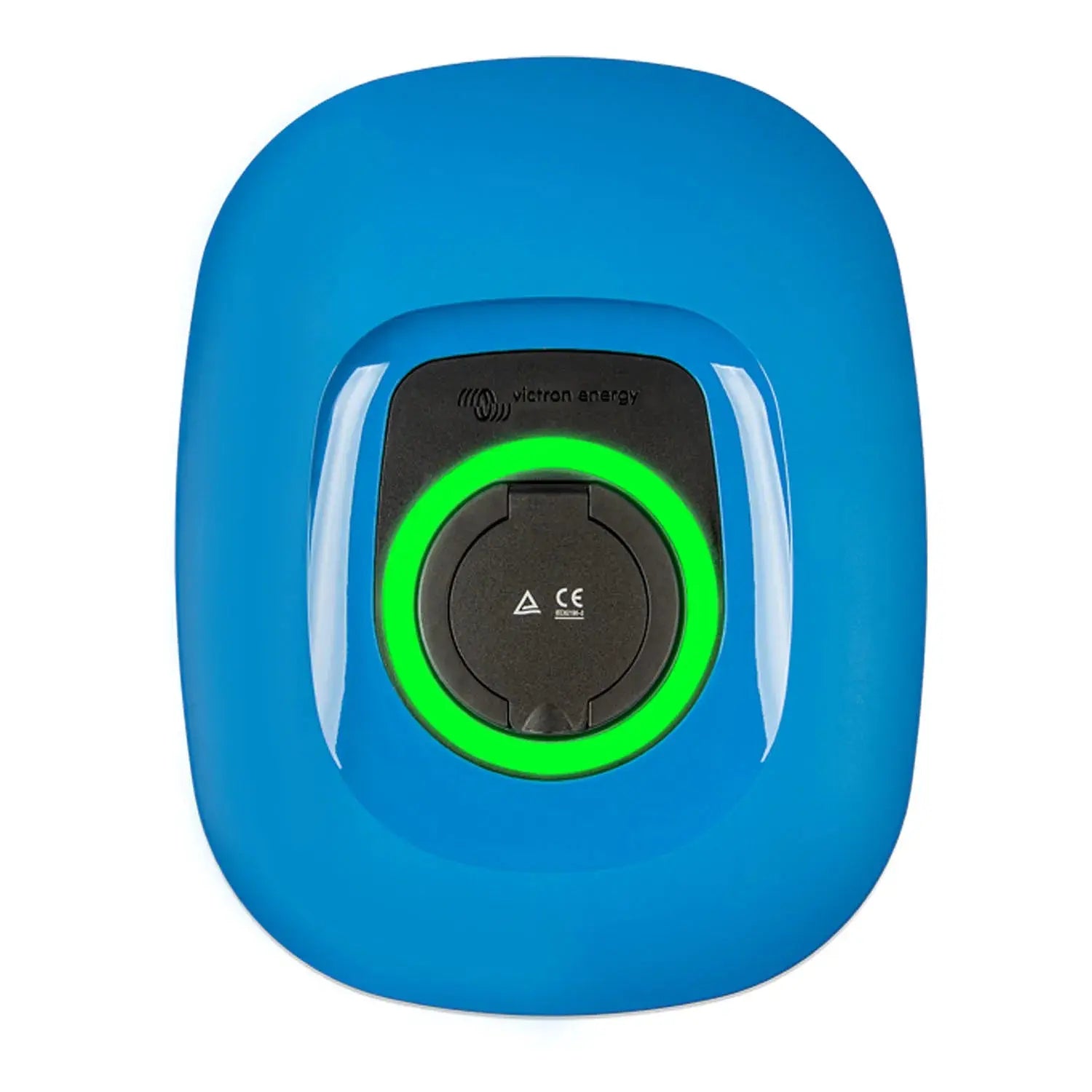

xVictron EV Charging Station NS - Blue - EVC200300200
Discover the advanced capabilities of the Victron EV Charging Station NS. Equipped with both three-phase and single-phase charging options, this station delivers a robust 22 kW AC in three-phase or a precise 7.3 kW in single-phase mode. Designed for versatility and high performance, this charging station is available in an eye-catching blue, with additional front panels in black or white to seamlessly complement any environment.
Seamless Integration and Smart Control
Fully integrate your charging station with Victron Energy GX devices and VRM for a streamlined user experience. Effortless management is at your fingertips through WiFi, Bluetooth, and the VictronConnect app, providing comprehensive control over all operating parameters and session statistics.
Innovative Features
Light Ring for Instant Status Updates: The programmable RGB light ring encircles the charging port, providing immediate visual feedback on the device’s status. Choose from a spectrum of colours and effects to signify different states such as disconnected, charging, and fully charged.
Flexible Operating Modes:
- Automatic Mode: Maximizes efficiency by using only excess solar power to charge the vehicle, ensuring seamless integration into your solar setup.
- Manual Mode: Offers configurable output current between 6-32A, giving you full control over the charging process.
- Scheduled Mode: Program the charger to operate at specific times, making the most of lower energy rates during off-peak hours.
Complete Connectivity: Whether using the onboard WiFi for remote monitoring or Bluetooth for local updates, this charging station keeps you connected and in control.
What's in the Box?
- EV Charging Station NS
- Mounting plate
- 28mm nylon cable gland for securing power cables up to 19mm in diameter
- Type 2 cable plug holder dummy socket
- Rubber plug for weatherproofing
Additional Color Options: Interested in customizing the look of your charging station? For alternate front panel colors:
This Victron EV Charging Station NS is not just a charging device; it is an enhancement to your sustainable lifestyle, providing flexibility, efficiency, and high performance where it matters most.
Specifications
x| EV Charging Station NS - EVC200300200 | |
|---|---|
| Input voltage range (V AC) | 170 – 265 VAC |
| Rated charge current | 32 A / phase |
| Nominal power | 22 kW |
| Current output range | 6 – 32 A |
| WiFi standards | 802.11 b/g/n (2.4 Ghz only) |
| Self-consumption | 15 mA@230 V |
| Configurable Max. Current | 10-32 A |
| Configurable Min. Current | 6 A up to 1 A below max. value |
| Connector type | IEC 62196 Type 2 |
| Means to Disconnect | External circuit breaker (40 A recommended) |
| Configurable price/kWh calculator | Default setting: 0.13 (adjustable) |
| Control type | Web page, GX Device over Modbus TCP, VictronConnect via Bluetooth |
| Light Ring | 55 light configurable light effects available |
| Protection | External RCD is required |
| Operating temperature | -25 °C to +50 °C |
| Storage temperature | -40 °C to +80 °C |
| Humidity | 95 %, non-condensing |
| Data communication | Modbus TCP over WiFi, Bluetooth |
| Enclosure colour | Light Blue (RAL 5012), Traffic Black (RAL 9017), Traffic White (RAL 9016) |
| Power terminals | 6-10 mm² / AWG 10-8 |
| Protection category | IP44 |
| Ventilation | Not required |
| Weight | 3 kg |
| Dimensions (h x w x d) | 372 x 292 x 122mm |
| Safety | IEC 61851-1, IEC 61851-22 |
| Standards | Detection for Relay Contact welded, Detection for missing protective conductor, Detection for missing Ground |
