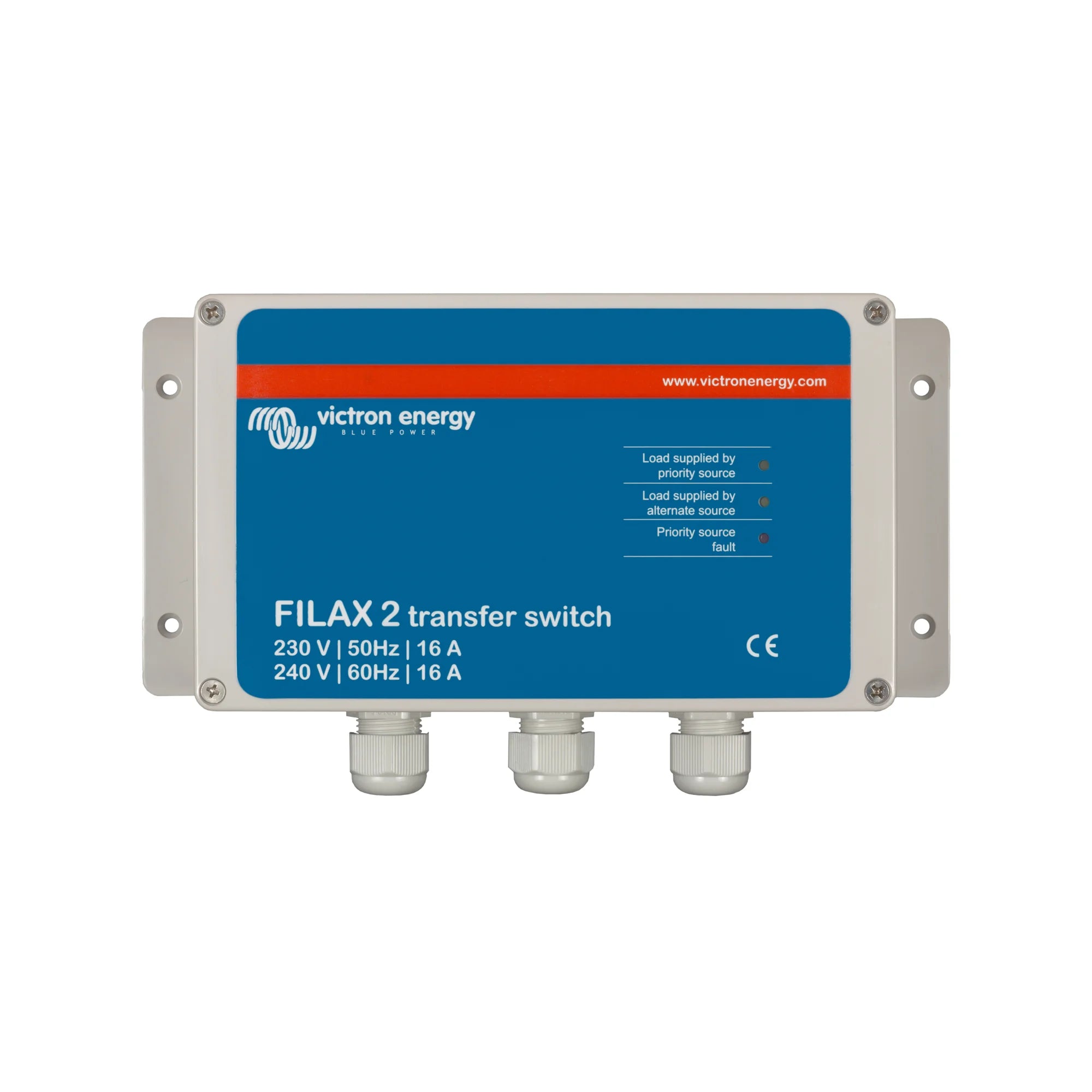

xVictron Filax 2 Transfer Switch CE 230V/50Hz – 240V/60Hz
The Victron Filax 2 is an automatic transfer switch designed for use in off-grid, marine, and backup power systems where a reliable changeover between two AC sources is required. It is suited to professional installers working with generator and inverter setups that need fast, automatic source switching without manual intervention.
Key Features
- Automatic transfer between two AC sources with no manual switching required.
- Compatible with both 230V/50Hz and 240V/60Hz supply voltages, covering UK, European and international applications.
- CE certified, confirming compliance with applicable European safety and electromagnetic compatibility directives.
- Compact and lightweight at 0.8 kg, suitable for panel mounting in confined installations.
- Fast transfer time ensures minimal interruption to connected loads when switching between sources.
- Designed for use alongside Victron inverters, inverter/chargers and generator inputs in off-grid and backup power systems.
Product Overview
The Filax 2 monitors the primary AC source continuously. When that source fails or falls outside acceptable parameters, the unit switches the load to the secondary source automatically. When the primary source is restored, it transfers back. This behaviour is essential in systems where an inverter or generator acts as a backup to shore power or grid supply.
The dual voltage and frequency rating makes the Filax 2 suitable across a broad range of installations. A 230V/50Hz system in the UK or Europe and a 240V/60Hz system in other regions are both supported within a single unit. This is particularly useful for marine and mobile applications where the supply standard may vary by location.
The CE marking confirms the unit has been assessed against relevant European directives. At 0.8 kg, the Filax 2 is straightforward to mount within a distribution board or enclosure without adding significant weight to the installation.
Specifications
- SKU: SDFI0000000
- GTIN: 8719076025672
- Input/Output Voltage: 230V/50Hz and 240V/60Hz
- Certification: CE
- Weight: 0.8 kg
Applications
- Off-grid systems requiring automatic changeover between inverter output and generator supply.
- Marine and narrowboat installations switching between shore power and onboard generator or inverter.
- Motorhome and vehicle conversions with dual AC source setups.
- Backup power systems in residential or light commercial premises where generator failover is needed.
- Any installation where manual source switching would be impractical or unsafe.
What Is Included
- 1 x Victron Filax 2 Transfer Switch
Installation Notes
The Filax 2 should be installed by a qualified electrician familiar with AC distribution and transfer switching. Incorrect wiring of a transfer switch can result in back-feeding, equipment damage or risk to personnel. For any grid-connected installation in the UK, ensure the system design complies with G98 or G99 requirements as applicable. Always isolate all AC sources before working on the unit or connected wiring.
