Description

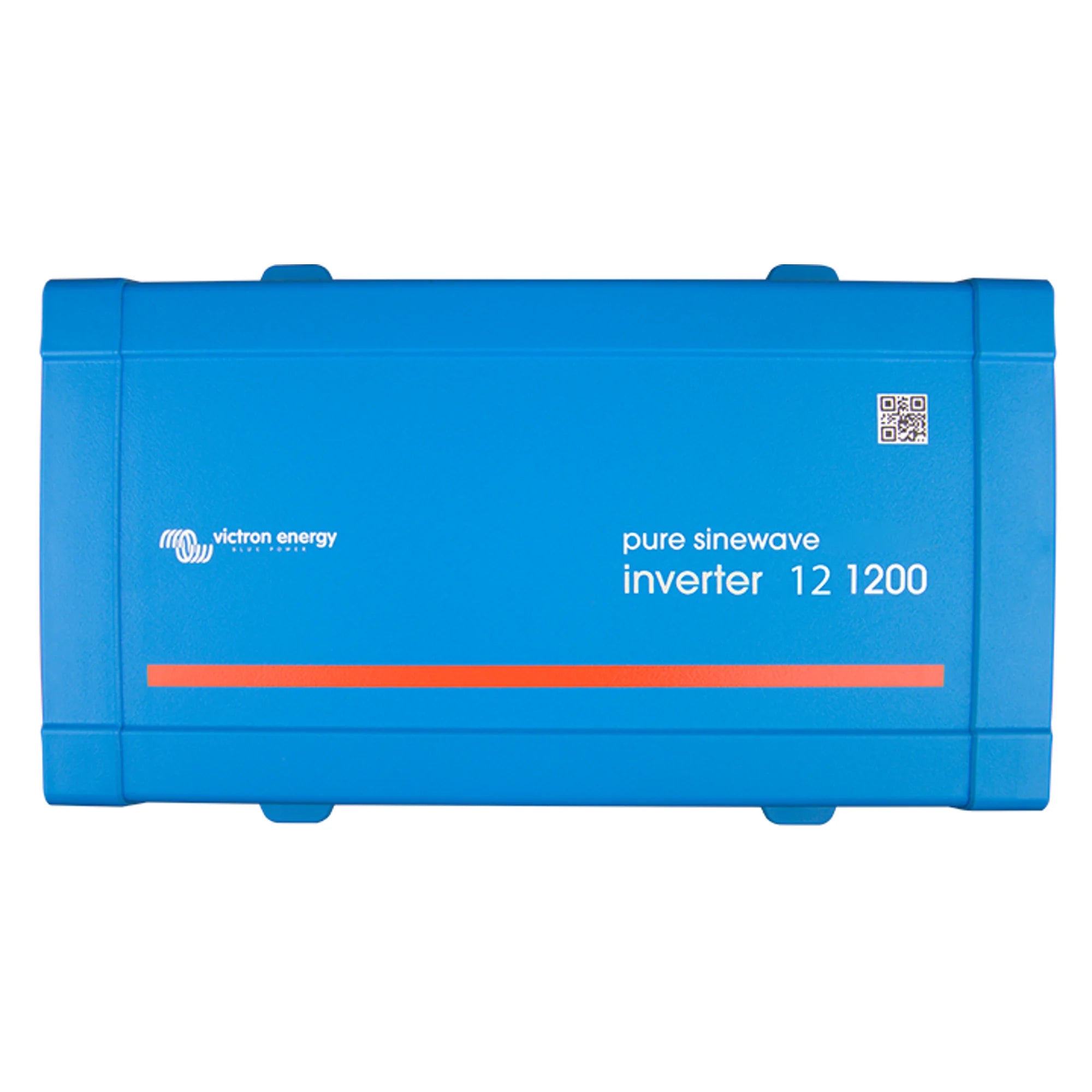

xVictron Inverter 12/1200 230V VE.Direct SCHUKO
The Victron Inverter 12/1200 is a 1200VA pure sine wave inverter that converts 12V DC battery power to 230V AC. It is aimed at off-grid installations, vehicles, boats and backup power applications where a reliable AC supply is needed from a 12V battery bank. The SCHUKO output socket makes it straightforward to connect standard European appliances directly.
Key Features
- 1200VA continuous output power from a 12V DC input, suitable for a wide range of AC loads.
- Pure sine wave output at 230V, compatible with sensitive electronics and motor-driven equipment.
- VE.Direct communication port for monitoring and integration with Victron GX devices and the VictronConnect app.
- SCHUKO output socket for direct connection of standard European plugs without an adaptor.
- Built-in protections covering low battery shutdown, overload, over-temperature and short circuit.
- Compact and relatively lightweight design at 7.7 kg, suited to installations with limited space.
Product Overview
The 12/1200 sits in Victron's VE.Direct inverter range, which is designed for straightforward off-grid and mobile applications. The VE.Direct port allows the inverter to communicate with Victron's monitoring ecosystem, including the Cerbo GX and the VictronConnect app over Bluetooth or USB. This means installers can monitor real-time output, configure settings and view historical data without additional hardware beyond a VE.Direct cable or Bluetooth dongle.
The pure sine wave output is important for loads that are sensitive to waveform quality. Modified sine wave inverters can cause problems with variable-speed motors, some battery chargers, audio equipment and medical devices. A pure sine wave output avoids these compatibility issues and is generally the correct choice for professional installations.
The SCHUKO socket format is standard across much of Europe and is commonly found on tools, appliances and consumer electronics. Having a built-in socket rather than bare terminals simplifies installation in mobile and temporary setups, though fixed installations will typically be wired directly into a distribution board by a qualified electrician.
Technical Specifications
| Parameter | Value |
| SKU | PIN122121210 |
| DC Input Voltage | 12V |
| AC Output Voltage | 230V |
| Continuous Output Power | 1200VA |
| Output Waveform | Pure sine wave |
| Output Socket | SCHUKO |
| Communication | VE.Direct |
| Weight | 7.7 kg |
| GTIN | 8719076066309 |
Applications
- Off-grid cabins and remote buildings powered by a 12V battery bank.
- Campervans, motorhomes and caravans requiring 230V AC from the vehicle battery.
- Marine installations on smaller vessels with a 12V house battery system.
- Backup power for essential loads during grid outages, connected to a 12V battery.
- Temporary site power where a 230V supply is needed from a battery source.
What Is Included
- Victron Inverter 12/1200 230V VE.Direct SCHUKO unit
Installation Notes
This inverter should be installed by a qualified electrician or competent person familiar with DC battery systems and 230V AC wiring. DC cable sizing and fusing between the battery and inverter are critical at 12V due to the high currents involved at this power level. The inverter is not grid-tied and does not require G98 or G99 notification. For integration with a Victron monitoring system, a VE.Direct cable or VE.Direct Bluetooth Smart dongle is required separately. Ensure adequate ventilation around the unit to prevent thermal shutdown under sustained load.
