Description

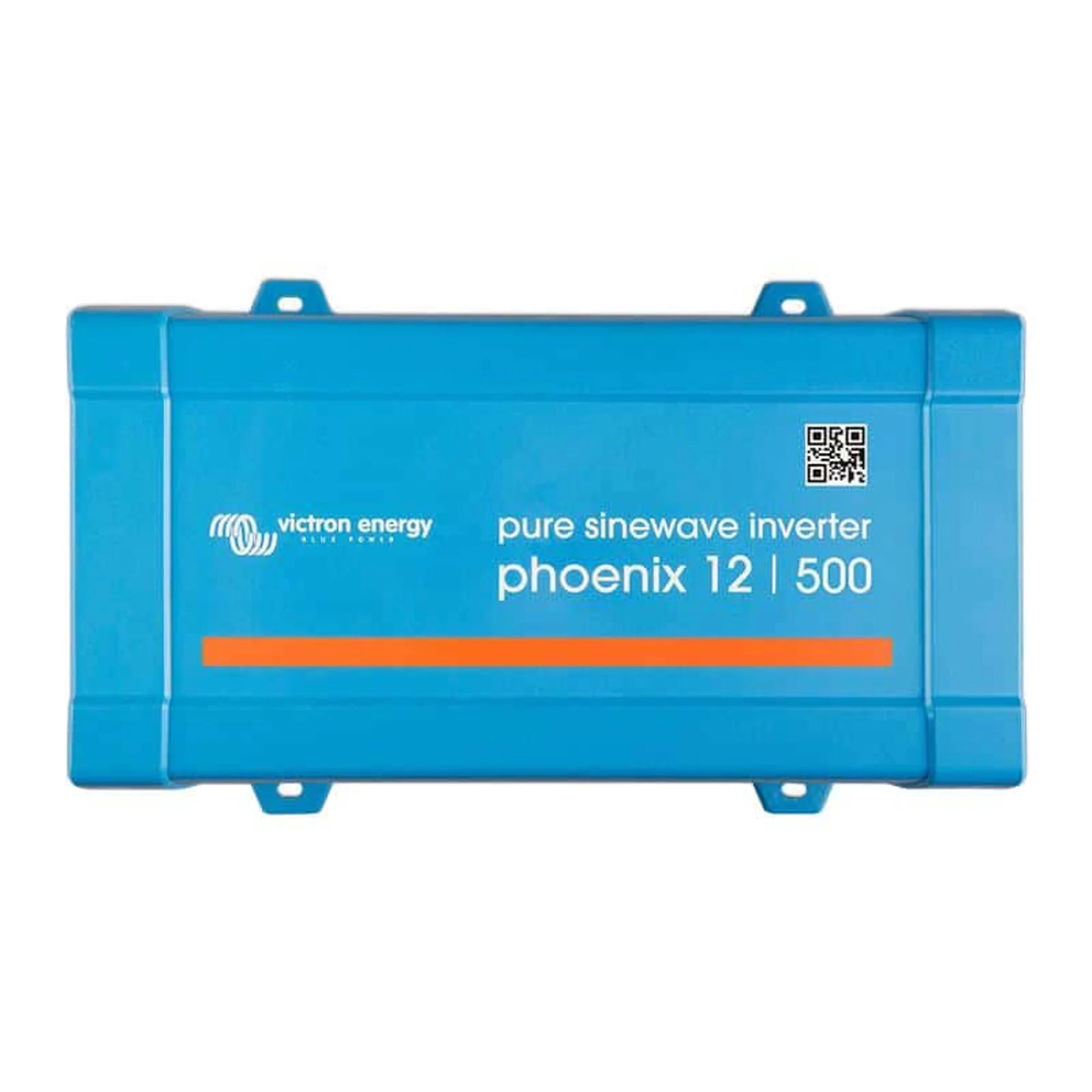

xVictron Inverter 12/500 230V VE.Direct IEC
The Victron Inverter 12/500 is a 500VA pure sine wave inverter that converts 12V DC battery power to 230V AC mains voltage. It is aimed at installers and professionals working on small off-grid systems, vehicles, boats and backup power applications. The VE.Direct communication port allows direct monitoring and integration with Victron's ecosystem without additional hardware.
Key Features
- 500VA continuous output at 230V AC from a 12V DC battery bank.
- Pure sine wave output suitable for sensitive electronics and motor loads.
- VE.Direct port for direct communication with compatible Victron monitoring devices and the VictronConnect app via a VE.Direct to USB or Bluetooth dongle.
- IEC AC output connector for straightforward, standardised wiring.
- Built-in protections including low battery voltage shutdown, over-temperature and overload protection.
- Compact and lightweight design at 4.1 kg, suited to space-constrained installations.
- Compatible with Victron GX devices for system integration and remote monitoring via VRM portal.
Product Overview
The 12/500 sits at the entry level of Victron's VE.Direct inverter range. At 500VA, it is sized for powering individual loads such as lighting circuits, small appliances, power tools or communications equipment from a 12V battery. The pure sine wave output means it will run loads that a modified sine wave inverter cannot handle reliably, including inductive motors, variable speed drives and audio equipment.
The VE.Direct port is a key practical feature for professional installations. It allows the inverter to be monitored and configured using VictronConnect, and it can be integrated into a wider Victron system via a GX device such as a Cerbo GX. This gives installers a single point of visibility across the system without needing additional wiring or proprietary adapters. The IEC output socket provides a clean, standardised connection point that simplifies panel or enclosure builds.
Protection features are handled automatically. The inverter will shut down on low battery voltage to prevent deep discharge damage, and will protect itself against overload and over-temperature conditions. These are standard requirements for any professional off-grid or mobile installation and are handled without manual intervention.
Technical Specifications
| Specification | Value |
| SKU | PIN121501110 |
| DC Input Voltage | 12V |
| AC Output Voltage | 230V AC |
| Continuous Output Power | 500VA |
| Output Waveform | Pure sine wave |
| Communication | VE.Direct |
| AC Output Connector | IEC |
| Weight | 4.1 kg |
| GTIN | 8719076073529 |
Applications
- Off-grid cabins and remote installations requiring a small 230V AC supply from a 12V battery bank.
- Marine and narrowboat installations for powering 230V appliances from the vessel's 12V system.
- Campervans and motorhomes where a compact inverter is needed for occasional 230V loads.
- Backup power for communications or security equipment during mains outages.
- Small solar off-grid systems where a Victron VE.Direct ecosystem is already in use.
What Is Included
- Victron Inverter 12/500 230V VE.Direct IEC unit.
Installation Notes
This inverter should be installed by a qualified electrician or competent person familiar with DC and AC electrical systems. DC cable sizing must be appropriate for the current draw at 12V, which will be significantly higher than the AC output current. Ensure the battery bank is adequately fused and cabled for the inverter's maximum input current. This unit is not grid-tied and does not require G98 or G99 compliance. For integration with a Victron GX device or VRM monitoring, a VE.Direct interface cable is required and is not included.
