Description

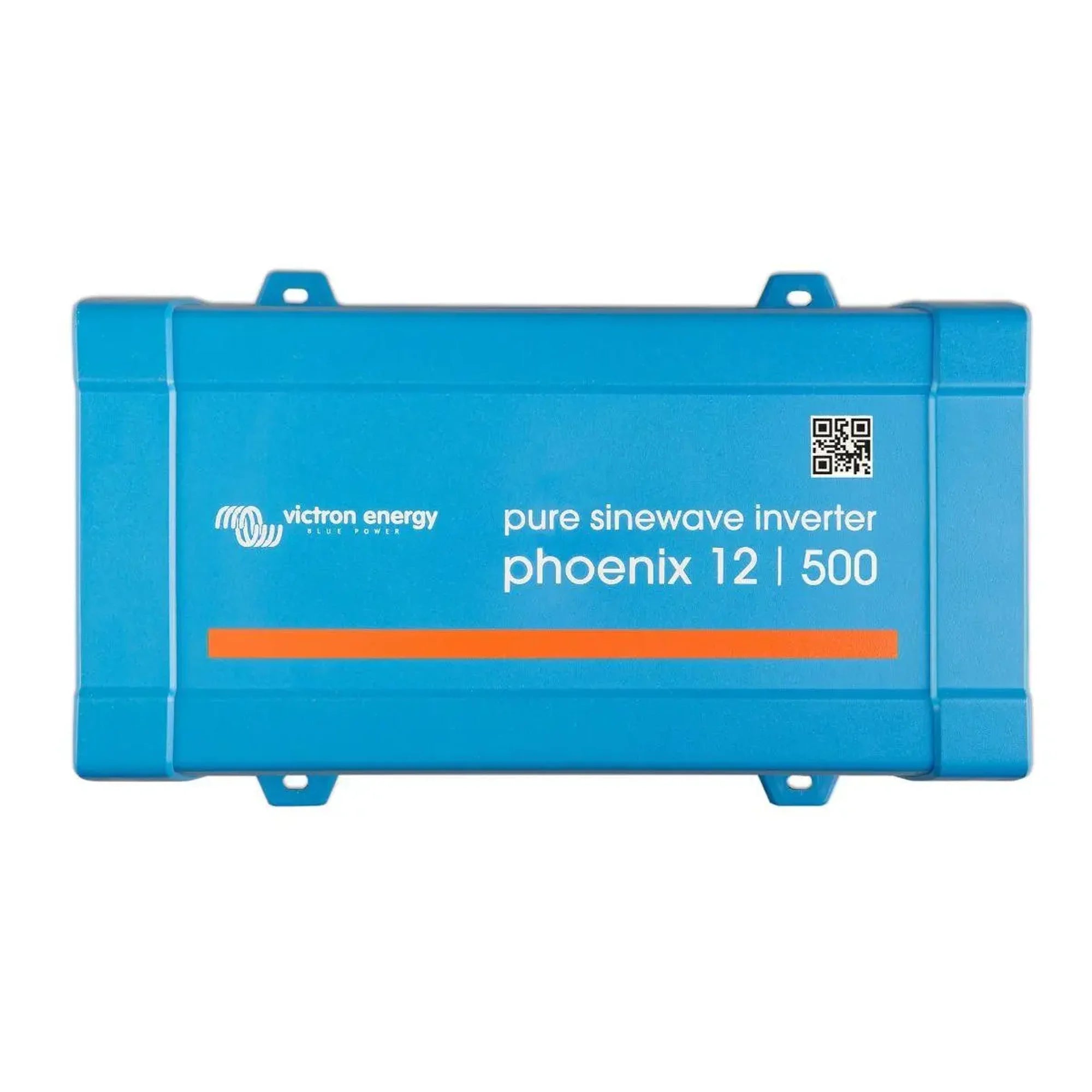

xVictron Inverter 12/500 230V VE.Direct UK — PIN121501400
The Victron Inverter 12/500 230V VE.Direct is a compact 12V DC to 230V AC pure sine wave inverter designed for off-grid, mobile and backup power applications. It converts 12V battery power to mains-equivalent 230V AC output at up to 500VA, making it suitable for powering sensitive electronics, tools and appliances where grid power is unavailable. The VE.Direct port enables direct communication with compatible Victron monitoring devices and displays.
Key Features
- 500VA continuous output at 230V AC from a 12V DC battery bank
- Pure sine wave output suitable for sensitive electronics and motor loads
- VE.Direct communication port for connection to Victron monitoring equipment such as the Color Control GX or MPPT displays
- UK plug socket configuration included as standard
- Compact and lightweight design at 4.1 kg, suited to van conversions, boats and small off-grid installations
- Low power consumption in standby mode to preserve battery capacity
- Built-in protections including over-temperature, over-load and low battery voltage shutdown
Product Overview
The 12/500 sits at the entry level of Victron's VE.Direct inverter range. At 500VA it is sized for loads such as laptops, LED lighting, small power tools, phone chargers and similar equipment. The pure sine wave output means it will run equipment that a modified sine wave inverter cannot, including many motor-driven appliances and audio or medical devices.
The VE.Direct interface distinguishes this model from basic inverters. It allows the unit to be monitored and configured via Victron's GX devices, the VictronConnect app (via a VE.Direct to USB or Bluetooth adapter), or integrated into a wider Victron system. This makes it a practical choice for installers building monitored off-grid or mobile systems rather than a standalone, unmonitored unit.
At 4.1 kg the inverter is straightforward to mount in a van, motorhome, boat or small cabin installation. It is designed for 12V battery systems, so confirm your battery bank voltage before specifying this unit. It is not suitable for 24V or 48V systems.
Technical Specifications
| Parameter | Value |
| SKU | PIN121501400 |
| Input Voltage | 12V DC |
| Output Voltage | 230V AC |
| Continuous Output Power | 500VA |
| Output Waveform | Pure sine wave |
| Communication | VE.Direct |
| Socket Type | UK (Type G) |
| Weight | 4.1 kg |
| GTIN | 8719076055044 |
Applications
- Van and motorhome conversions requiring 230V AC output from a 12V leisure battery
- Narrowboats and sailing vessels with 12V DC battery banks
- Small off-grid cabins and garden buildings with limited AC load requirements
- Backup power for low-wattage equipment during grid outages
- Remote site power for laptops, lighting and small tools
- Integration into monitored Victron off-grid systems via VE.Direct
What Is Included
- Victron Inverter 12/500 230V VE.Direct (UK socket version)
Installation Notes
This inverter must be connected to a 12V DC battery system using appropriately rated DC cabling and fusing. DC cable sizing is critical at this power level: undersized cables will cause voltage drop and may create a fire risk. Installation should be carried out by a qualified electrician or competent person familiar with DC power systems. This unit is not grid-connected and does not require G98 or G99 notification. If integrating into a wider solar or battery system, ensure all components are correctly rated and that the installation complies with BS 7671 wiring regulations.
