Description

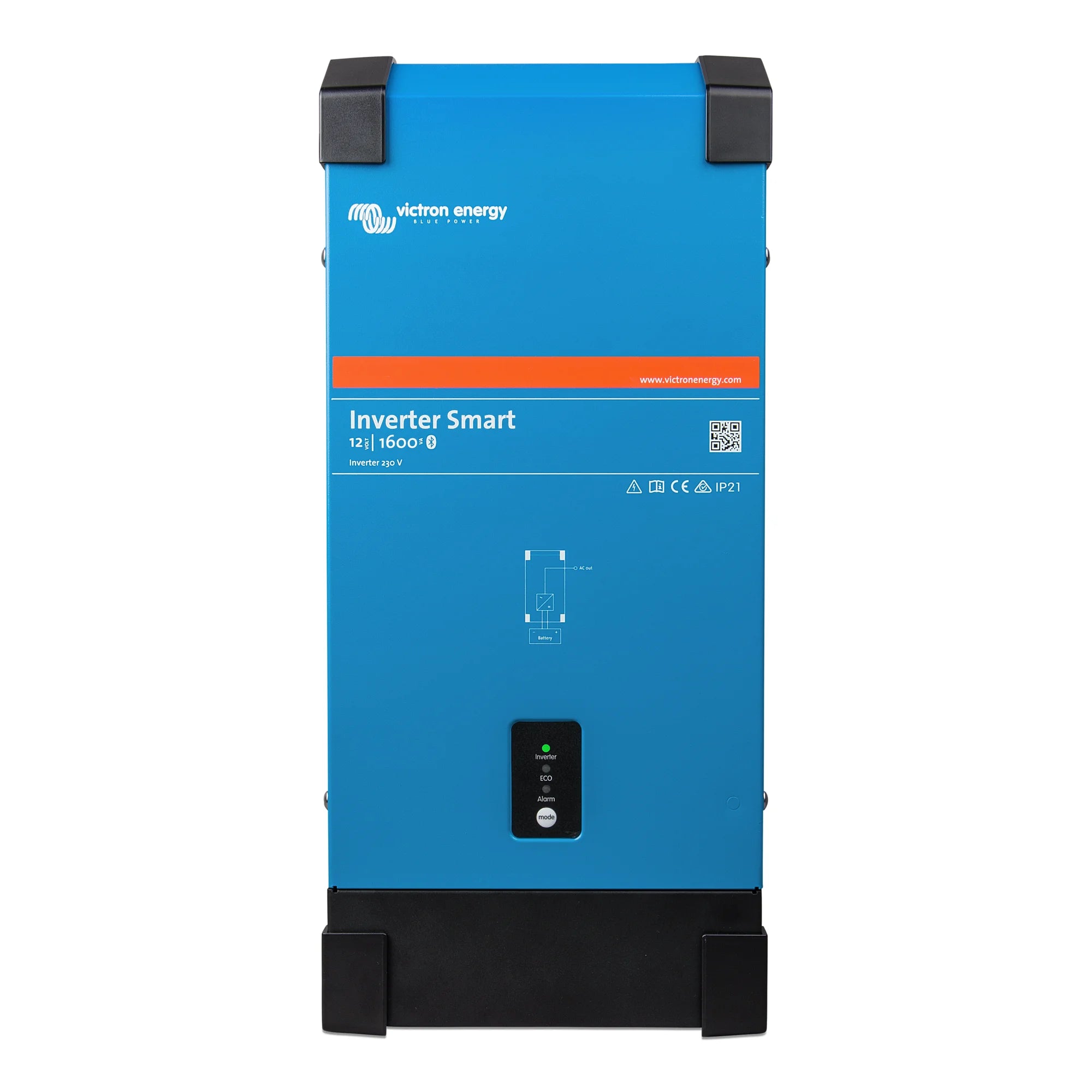

xVictron Inverter 12/1600 230V Smart
The Victron Inverter 12/1600 230V Smart is a pure sine wave inverter designed for 12V battery systems, delivering 1600VA of continuous AC output at 230V. It is suited to off-grid installations, marine and vehicle applications, and backup power setups where a reliable DC-to-AC conversion is required. The built-in Bluetooth interface allows direct monitoring and configuration without additional hardware.
Key Features
- 1600VA continuous output at 230V AC from a 12V DC battery bank.
- Pure sine wave output, compatible with sensitive electronics and motor loads.
- Integrated Bluetooth connectivity for monitoring and configuration via the VictronConnect app on iOS and Android.
- Programmable relay output for generator start, alarm or load control functions.
- Comprehensive protection including over-temperature, over-voltage, under-voltage and short-circuit shutdown.
- Low idle power consumption, reducing unnecessary battery drain when loads are light or absent.
- Compatible with the Victron VE.Direct communication port for integration with GX devices and the wider Victron ecosystem.
Product Overview
The 12/1600 Smart operates from a 12V battery bank and converts DC power to a clean 230V AC sine wave. The 1600VA rating makes it suitable for powering a range of loads including lighting, small appliances, power tools and sensitive electronics. Pure sine wave output is important where equipment contains variable-speed motors, medical devices or any load that does not tolerate the distortion present in modified sine wave inverters.
The "Smart" designation refers to the integrated Bluetooth module. Using the VictronConnect app, an installer or operator can view real-time data, adjust settings such as low battery shutdown thresholds, and configure the programmable relay, all without physical access to the unit. This is particularly useful in installations where the inverter is mounted in a confined or awkward location. The VE.Direct port allows the inverter to be connected to a Victron Cerbo GX or other GX device for full system monitoring and remote access via the VRM portal.
At 12.4 kg, the unit is a substantial piece of equipment and should be mounted securely on a flat, ventilated surface. Adequate cable sizing between the battery and inverter is critical at 12V: at full load, DC input current will be high, and undersized cabling will cause voltage drop and potential damage. Fusing the DC input in line with Victron's recommendations is essential.
Technical Specifications
| Parameter | Value |
| SKU | PIN122161000 |
| DC Input Voltage (Nominal) | 12V |
| AC Output Voltage | 230V AC |
| Continuous Output Power | 1600VA |
| Output Waveform | Pure sine wave |
| Connectivity | Bluetooth (VictronConnect), VE.Direct |
| Weight | 12.4 kg |
| GTIN | 8719076057505 |
Applications
- Off-grid cabins and remote buildings powered by a 12V battery and solar array.
- Marine vessels requiring 230V AC output from a 12V house bank.
- Motorhomes, campervans and commercial vehicles with 12V leisure battery systems.
- Backup power for critical loads during mains outages, used alongside a battery bank.
- Mobile work platforms and site vehicles needing 230V AC for tools or equipment.
What Is Included
- Victron Inverter 12/1600 230V Smart unit
Installation Notes
Installation should be carried out by a qualified electrician or experienced systems integrator familiar with DC power systems. The DC input cables must be correctly sized and fused for the high currents drawn at 12V. Ensure the battery bank has sufficient capacity and discharge rating to support the inverter at full load. The inverter must be mounted in a well-ventilated location, away from flammable materials. This product is not a grid-tied inverter and does not require G98 or G99 compliance for standalone off-grid use. For any installation forming part of a wider electrical system on a vessel or vehicle, relevant marine or automotive wiring standards should be observed.
