Description

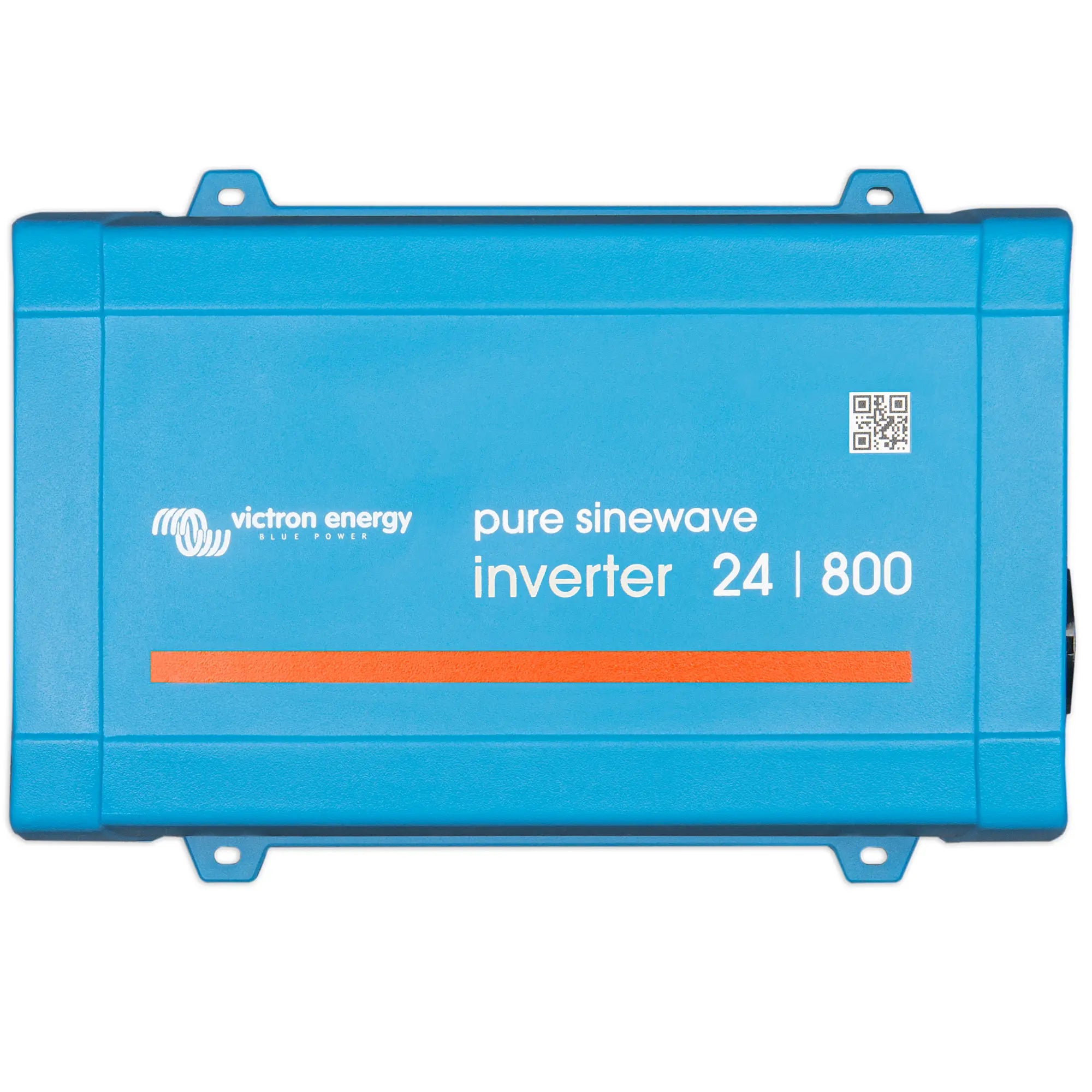

xVictron Inverter 24/800 230V VE.Direct IEC
The Victron Inverter 24/800 is a pure sine wave inverter designed to convert 24V DC battery power to 230V AC at up to 800VA. It is suited to off-grid installations, marine and vehicle applications, and backup power setups where a compact, reliable DC-to-AC conversion is required. The VE.Direct port allows direct communication with compatible Victron monitoring equipment.
Key Features
- 800VA continuous output at 230V AC from a 24V DC battery bank.
- Pure sine wave output suitable for sensitive electronics and motor loads.
- VE.Direct communication port for integration with Victron monitoring devices such as the Color Control GX and MPPT Solar Chargers.
- IEC AC output connector for straightforward, standardised wiring.
- Compact and lightweight design at 5.8 kg, suitable for space-constrained installations.
- Built-in protections including low battery voltage shutdown, overload protection, over-temperature protection, and short circuit protection.
- High efficiency operation to minimise battery drain during light loads.
Product Overview
The Inverter 24/800 sits within Victron's VE.Direct inverter range, which is designed for straightforward off-grid and standalone power applications. The 24V input voltage makes it well matched to 24V battery systems commonly found in larger off-grid setups, commercial vehicles, and marine installations. At 800VA, it is capable of running lighting circuits, small power tools, laptops, televisions, and similar loads without difficulty.
The VE.Direct interface is a key practical feature for professional installations. It allows the inverter to communicate with the wider Victron ecosystem, including GX devices for system monitoring and data logging. This means the inverter can be integrated into a managed energy system rather than operating in isolation. The IEC output connector is a standardised format that simplifies wiring and avoids the need for custom terminations on the AC output side.
Pure sine wave output is important where loads include variable speed motors, medical equipment, or any device with a switched-mode power supply. A modified sine wave inverter can cause problems with such loads, including overheating and reduced efficiency. The 24/800 avoids these issues by producing a clean AC waveform throughout its output range.
Technical Specifications
| Specification | Value |
| SKU | PIN241801100 |
| DC Input Voltage | 24V |
| AC Output Voltage | 230V AC |
| Continuous Output Power | 800VA |
| Output Waveform | Pure sine wave |
| Communication | VE.Direct |
| AC Output Connector | IEC |
| Weight | 5.8 kg |
| GTIN | 8719076056041 |
Applications
- Off-grid cabins and remote power systems running from a 24V battery bank.
- Marine vessels requiring 230V AC power from a 24V DC electrical system.
- Commercial vehicles and motorhomes with 24V battery systems.
- Backup power for small office or domestic loads during grid outages.
- Victron-managed energy systems where VE.Direct monitoring integration is required.
What Is Included
- Victron Inverter 24/800 230V VE.Direct IEC unit.
Installation Notes
This inverter operates at 24V DC and must be connected to a correctly fused and appropriately rated 24V battery system. DC cable sizing and fusing should follow the manufacturer's guidelines and relevant wiring regulations. The AC output is at mains voltage (230V) and all AC wiring must be carried out by a qualified electrician in accordance with BS 7671 (IET Wiring Regulations). This inverter is not grid-tied and does not require G98 or G99 notification. For integration into a managed Victron system, a VE.Direct cable is required separately.
