Description

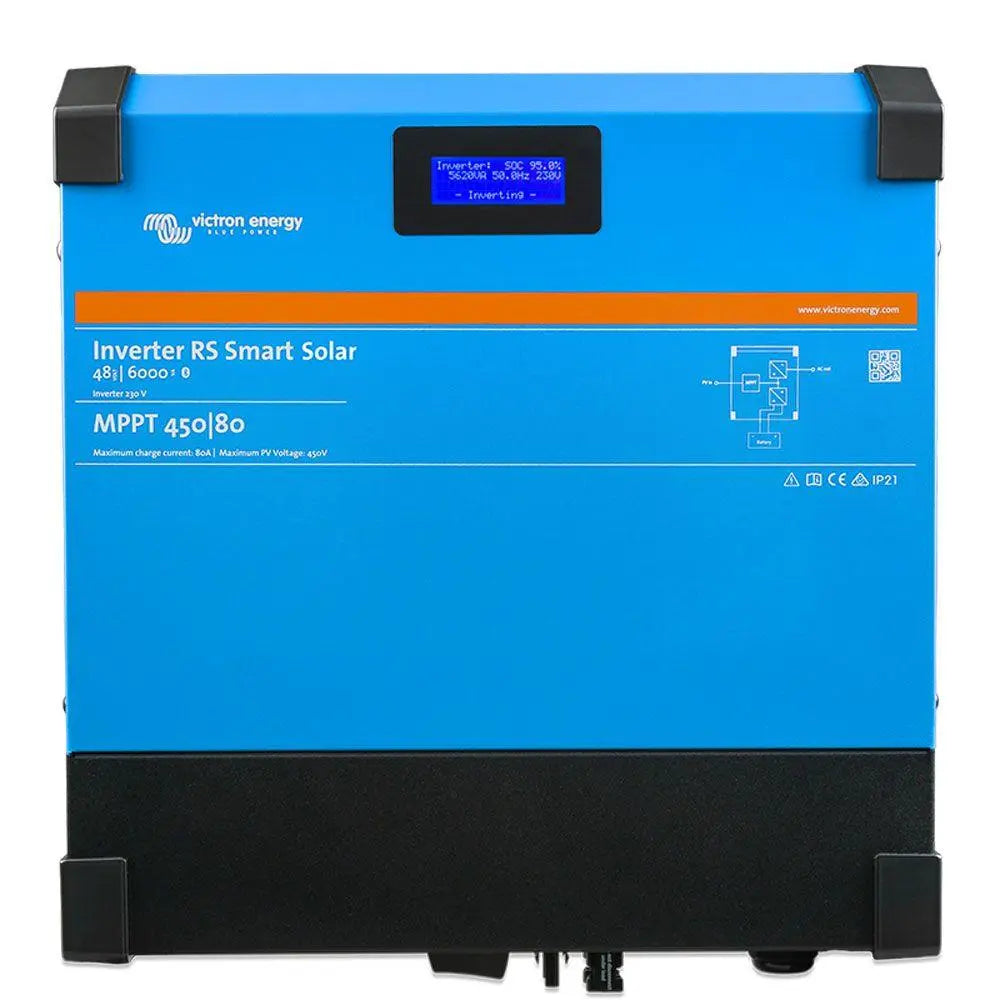

xVictron Inverter RS 48/6000 230V Smart Solar — PIN482601000
The Victron Inverter RS 48/6000 is a 6000VA inverter with an integrated MPPT solar charge controller, designed for 48V off-grid and hybrid battery systems. It is aimed at professional installers working on residential, commercial and industrial off-grid projects where a single, capable unit is preferred over separate components.
Key Features
- 6000VA continuous inverter output at 230V AC, suitable for demanding off-grid loads.
- Integrated Smart Solar MPPT charge controller for direct PV array connection without a separate unit.
- Designed for 48V battery banks, compatible with lead-acid and lithium battery chemistries.
- VE.Direct and Bluetooth connectivity for monitoring and configuration via the Victron Connect app.
- Compact, wall-mounted form factor weighing 12 kg, reducing installation space requirements.
- 230V AC output suitable for standard single-phase European and UK electrical loads.
Product Overview
The Inverter RS 48/6000 combines a high-capacity inverter with an integrated MPPT solar charge controller in a single enclosure. This reduces wiring complexity and cabinet space compared to installing separate inverter and charge controller units. The 48V DC input voltage is well suited to larger battery banks where lower current draw at a given power level reduces cable sizing and heat losses.
The Smart Solar designation indicates the unit includes Victron's MPPT algorithm, which tracks the maximum power point of the connected PV array to maximise energy harvest across varying irradiance and temperature conditions. Connectivity via VE.Direct and Bluetooth allows integration with Victron's GX monitoring ecosystem and remote configuration through VictronConnect, which is relevant for installations requiring ongoing monitoring or commissioning from a mobile device.
At 12 kg, the unit is manageable for a single installer during wall mounting, though the 6000VA output class means it will typically be paired with substantial battery and PV capacity. Correct fusing, cable sizing and battery compatibility should be confirmed against Victron's published installation documentation before commissioning.
Technical Specifications
| Parameter | Value |
| SKU | PIN482601000 |
| Inverter Output | 6000VA |
| AC Output Voltage | 230V |
| Battery Voltage | 48V DC |
| Integrated Charge Controller | Smart Solar MPPT |
| Connectivity | VE.Direct, Bluetooth |
| Weight | 12 kg |
| GTIN | 8719076048176 |
Applications
- Off-grid residential systems with 48V lithium or lead-acid battery banks.
- Remote commercial or agricultural installations requiring reliable AC power from solar.
- Marine and vehicle applications where a 48V DC bus and 230V AC output are required.
- Backup power systems where solar charging and inverter functionality must operate independently of the grid.
- Retrofit installations replacing separate inverter and charge controller units to reduce enclosure space.
What Is Included
- Victron Inverter RS 48/6000 230V Smart Solar unit (PIN482601000)
Installation Notes
This unit operates at 48V DC and 230V AC and must be installed by a qualified electrician or MCS-accredited installer. Battery connections, PV array wiring, fusing and earthing must comply with BS 7671 and any applicable local regulations. For systems connected to or operating alongside the grid, G98 or G99 notification and compliance requirements must be assessed with your DNO. Lithium battery integration may require additional BMS communication configuration within the Victron ecosystem.
