Description

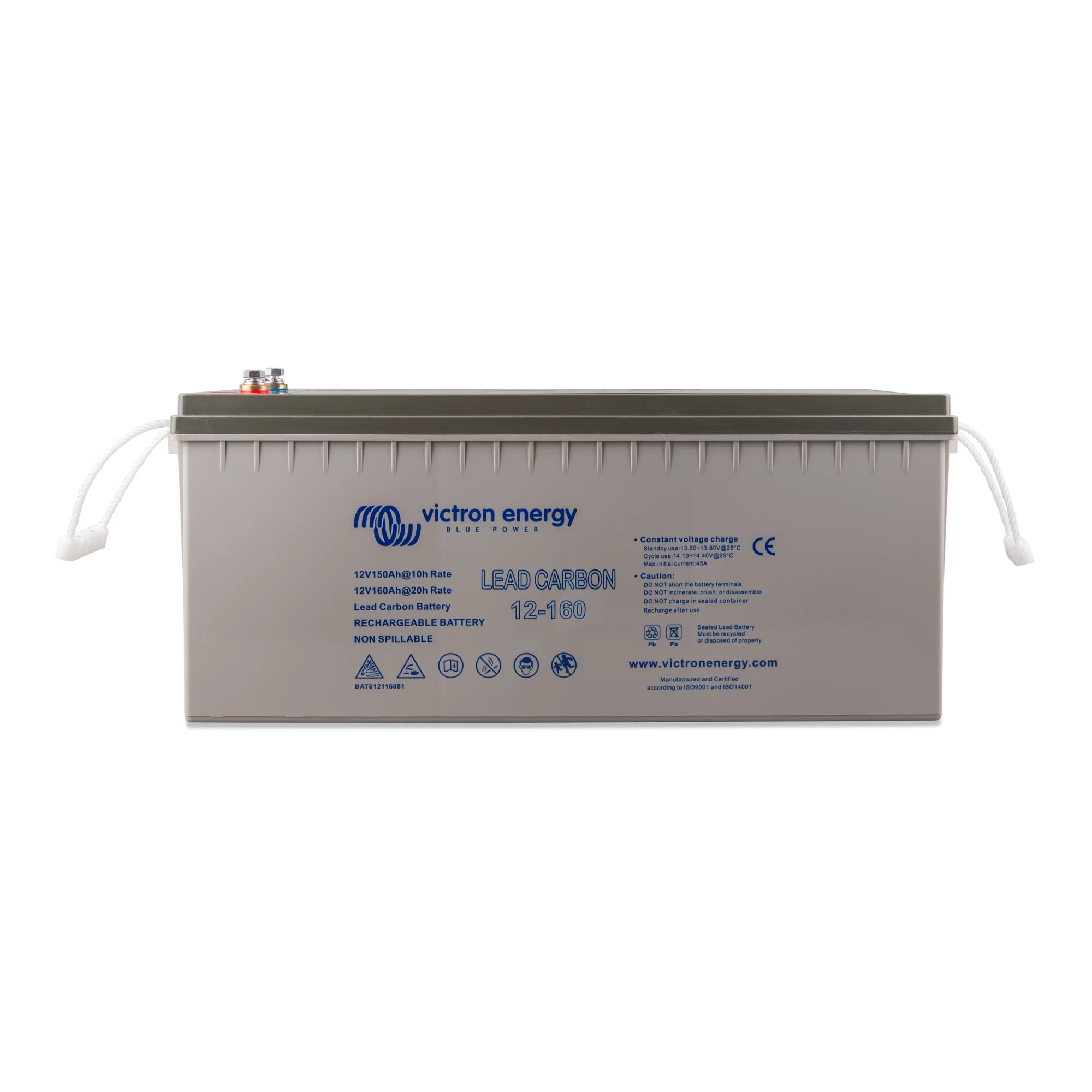

xVictron Lead Carbon Battery 12V/160Ah (M8)
The Victron Lead Carbon 12V/160Ah battery is a deep-cycle lead acid battery with carbon-enhanced negative plates, designed for cyclic and standby applications where partial state of charge operation is common. It suits off-grid solar systems, backup power installations, and marine or vehicle applications where a reliable, maintenance-tolerant battery is required.
Key Features
- Carbon-enhanced negative plates reduce sulphation and extend cycle life compared to standard AGM or flooded lead acid batteries.
- 12V nominal voltage with 160Ah capacity, providing 1,920Wh of stored energy per unit.
- M8 threaded insert terminals allow secure, torque-controlled connections suitable for high-current cabling.
- Performs well under partial state of charge (PSoC) conditions, making it well suited to solar applications with irregular charging profiles.
- Compatible with Victron chargers, inverter/chargers and MPPT solar charge controllers using standard lead acid charge profiles.
- Weighs 55kg, indicating a high-density construction typical of deep-cycle lead carbon cells.
Product Overview
Lead carbon batteries use a blend of activated carbon mixed into the negative active material of the lead plates. This modification significantly reduces the build-up of lead sulphate crystals during partial state of charge cycling, which is the primary cause of premature failure in conventional lead acid batteries used in solar applications. The result is a longer service life and more consistent capacity retention over time.
The M8 threaded insert terminals on this battery are a practical advantage in professional installations. Unlike post-style terminals, threaded inserts accept bolted lugs directly, providing a more secure and vibration-resistant connection. This is particularly relevant in mobile or marine installations, and in any system where cable management and terminal integrity are important.
At 160Ah, this battery is commonly used as a building block in larger battery banks. Multiple units can be connected in parallel to increase capacity, or in series-parallel configurations to achieve higher system voltages. Victron's battery management and monitoring tools are compatible with lead carbon chemistry using standard lead acid settings.
Specifications
- SKU: BAT612116081
- Nominal voltage: 12V
- Capacity: 160Ah
- Terminal type: M8 threaded insert
- Weight: 55kg
- GTIN: 8719076045472
Applications
- Off-grid solar energy storage where partial state of charge cycling is frequent.
- Backup power systems requiring a deep-cycle battery with extended service life.
- Marine and leisure vehicle installations needing a robust, bolted-terminal battery.
- Telecom and remote monitoring sites with irregular charge/discharge patterns.
- Multi-battery banks in 12V, 24V or 48V off-grid systems.
What Is Included
- 1 x Victron Lead Carbon Battery 12V/160Ah (M8)
Installation Notes
Installation should be carried out by a qualified electrician or experienced solar installer. Batteries of this size and weight (55kg) require appropriate handling equipment and should be installed in a ventilated enclosure. Ensure all cabling is correctly rated for the system's maximum current draw. Use M8 bolted lugs with appropriate torque settings on the threaded insert terminals. When connecting multiple batteries in a bank, follow Victron's guidance on balanced cabling to ensure even charge and discharge distribution across all units.
