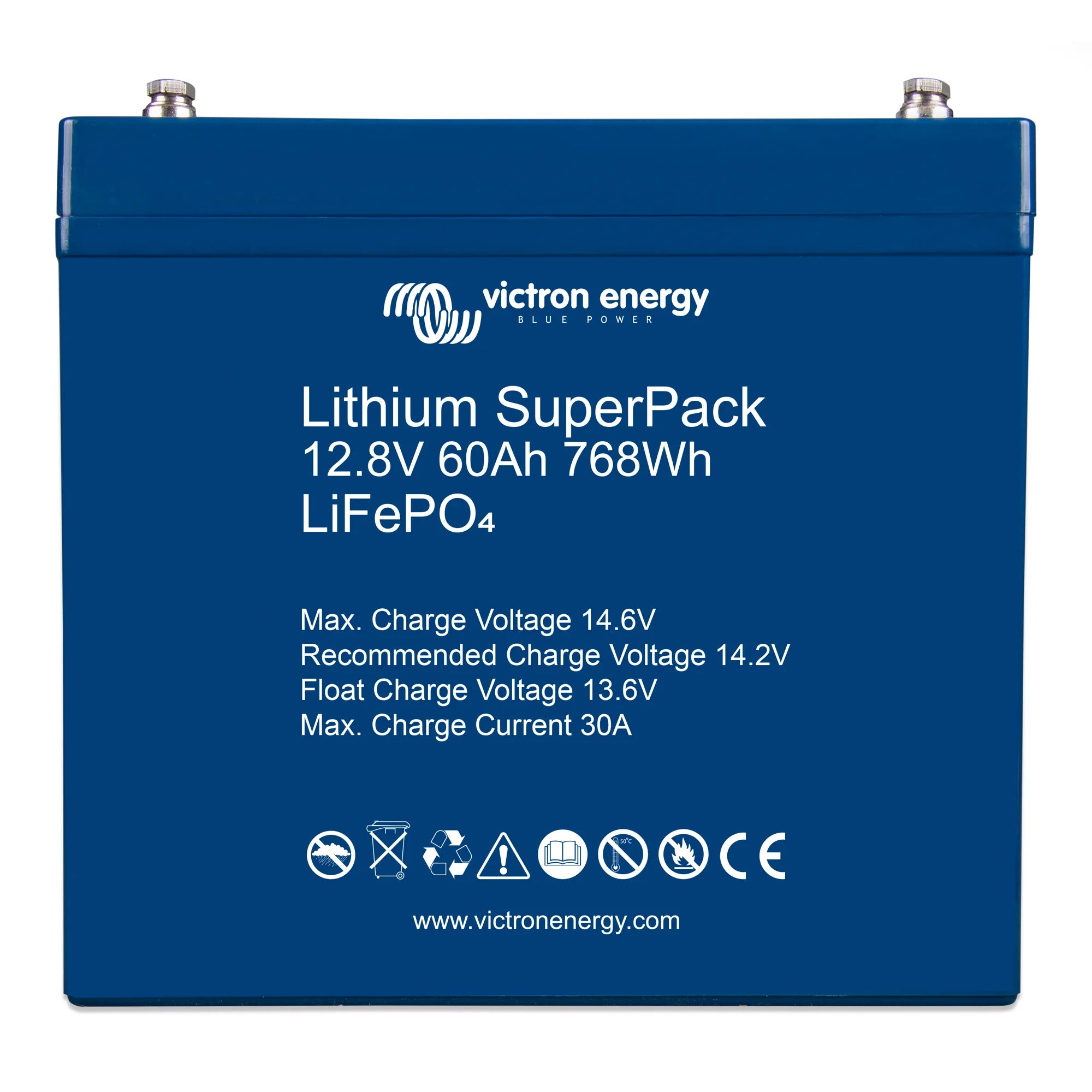

xVictron Lithium SuperPack 12.8V / 60Ah (M6)
The Victron Lithium SuperPack 12.8V/60Ah is a self-contained lithium iron phosphate (LiFePO4) battery with a built-in Battery Management System (BMS). It is designed for professional installers and system integrators working on marine, off-grid, mobile and backup power applications where a compact, ready-to-use lithium battery is required without the need for a separate BMS unit.
Key Features
- Lithium iron phosphate (LiFePO4) chemistry provides a stable, safe cell technology with no thermal runaway risk associated with other lithium chemistries.
- Built-in BMS handles cell balancing, over-charge protection, over-discharge protection, short-circuit protection and temperature protection internally.
- Nominal voltage of 12.8V with a 60Ah capacity, giving approximately 768Wh of usable energy.
- M6 terminal connections provide a secure, low-resistance bolt-down connection suitable for high-current applications.
- Significantly lighter than an equivalent lead-acid battery, at 9.2kg, reducing weight in mobile and marine installations.
- Longer cycle life than lead-acid alternatives, making it a cost-effective choice over the lifetime of the installation.
- Drop-in replacement form factor for 12V lead-acid batteries in many applications, simplifying retrofits.
Product Overview
The SuperPack range differs from Victron's standard Smart Lithium batteries in that the BMS is fully integrated into the battery casing. This removes the need for a separate BMS, external cell balancing wiring or a VE.Bus BMS in the system design. For straightforward installations where a single battery is required, this simplifies both the bill of materials and the installation process considerably.
At 12.8V nominal and 60Ah, this battery delivers around 768Wh of usable capacity. LiFePO4 chemistry allows a much higher depth of discharge than lead-acid, meaning the full rated capacity is genuinely accessible in normal use. The flat discharge curve also means voltage remains stable across the majority of the discharge cycle, which benefits sensitive loads and inverters that are sensitive to voltage sag.
The M6 threaded terminals are suited to ring-terminal cable connections and are compatible with standard battery cabling practices used in marine and vehicle installations. The battery weighs 9.2kg, which is a significant weight saving compared to a 60Ah AGM or flooded lead-acid battery of equivalent capacity.
Specifications
- SKU: BAT512060705
- Nominal Voltage: 12.8V
- Capacity: 60Ah
- Energy: approximately 768Wh
- Chemistry: Lithium Iron Phosphate (LiFePO4)
- BMS: Built-in
- Terminal Type: M6
- Weight: 9.2kg
- GTIN: 8719076047544
Applications
- Marine house battery banks where weight saving and cycle life are priorities.
- Motorhome and campervan leisure battery installations.
- Off-grid cabins and small solar storage systems requiring a single 12V battery.
- Backup power supplies for telecoms, security and monitoring equipment.
- Portable power stations and trolley-mounted power systems.
- Retrofit replacement for 12V lead-acid batteries in existing installations.
What Is Included
- 1x Victron Lithium SuperPack 12.8V/60Ah battery (M6 terminals)
Installation Notes
Although the integrated BMS simplifies system design, installation should be carried out by a qualified electrician or experienced installer familiar with lithium battery systems. Ensure all cabling is correctly rated for the maximum discharge current and that appropriate fusing is fitted as close to the battery terminal as practicable. The SuperPack is not designed for series connection to achieve higher voltages. Verify compatibility with your charger or solar charge controller before installation, as the charging profile must be set to LiFePO4 parameters. Do not install in a sealed, unventilated enclosure.
