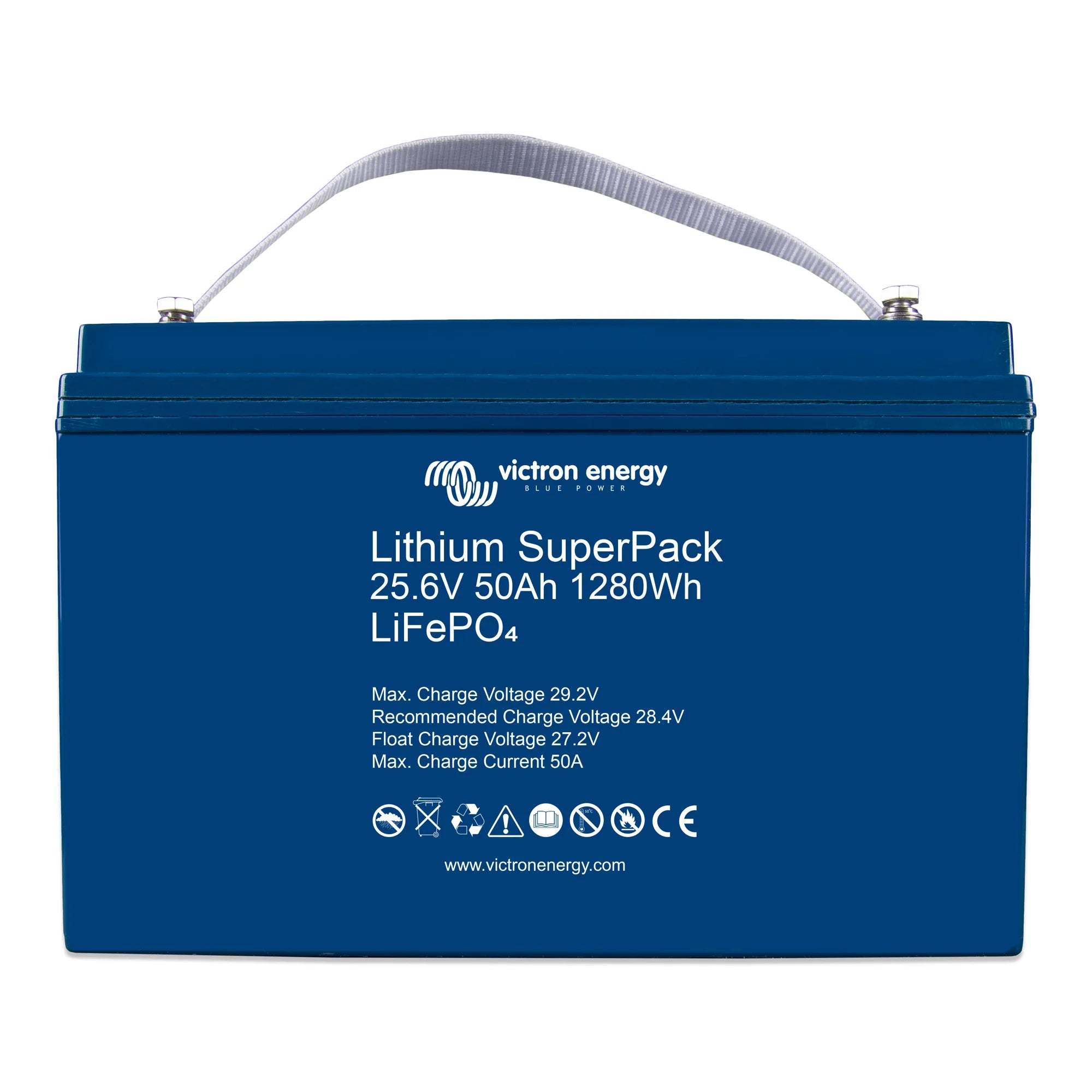

xVictron Lithium SuperPack 25.6V / 50Ah (M8)
The Victron Lithium SuperPack 25.6V/50Ah is a self-contained lithium iron phosphate (LiFePO4) battery with a built-in Battery Management System (BMS). It is designed for professional off-grid, marine, and mobile power applications where a compact, ready-to-use lithium battery is required without the need for an external BMS or additional protection circuitry.
Key Features
- 25.6V nominal voltage with 50Ah capacity, giving 1,280Wh of usable energy in a single unit.
- Built-in BMS handles cell balancing, over-charge, over-discharge, short-circuit, and over-temperature protection internally.
- LiFePO4 chemistry offers a stable discharge curve, high cycle life, and inherent thermal stability compared to other lithium chemistries.
- M8 terminal connections for secure, low-resistance cable attachment suitable for high-current applications.
- Batteries can be connected in parallel to increase capacity; series connection is not supported.
- Weighs 12.3 kg, significantly lighter than an equivalent lead-acid battery of the same capacity.
- Integrated cell protection means no external BMS wiring or configuration is required during installation.
Product Overview
The SuperPack range differs from Victron's Smart Lithium batteries in that the BMS is fully integrated and self-contained. There are no external BMS cables, no VE.Bus or VE.Direct communication ports, and no requirement to configure protection parameters. This makes the SuperPack a straightforward drop-in lithium upgrade for systems where simplicity and compactness matter more than deep integration with a Victron monitoring ecosystem.
At 25.6V nominal, this battery is suited to 24V system architectures. The 50Ah capacity delivers 1,280Wh gross, and because LiFePO4 chemistry supports a high depth of discharge (typically up to 80 to 100% depending on application), usable capacity is substantially greater than an equivalent-rated lead-acid unit. The flat discharge curve also means system voltage remains stable across most of the discharge cycle, which benefits inverters and other voltage-sensitive loads.
Parallel connection allows capacity to be scaled up on site. Each battery in a parallel bank operates its own internal BMS independently, so there is no single point of failure in the protection circuitry. Installers should ensure cables of equal length and cross-section are used across all parallel connections to balance current distribution.
Specifications
- SKU: BAT524050705
- Nominal voltage: 25.6V (LiFePO4, 8S configuration)
- Capacity: 50Ah
- Energy: 1,280Wh
- Terminal type: M8
- Weight: 12.3 kg
- GTIN: 8719076047575
Applications
- 24V off-grid solar storage systems in cabins, outbuildings, and remote installations.
- Marine house battery banks on sailing and motor vessels.
- Mobile and vehicle-based power systems including campervans and specialist vehicles.
- Backup power for telecoms, security, and industrial equipment running on 24V DC.
- Parallel battery banks where scalable capacity is needed without complex BMS integration.
What Is Included
- 1 x Victron Lithium SuperPack 25.6V/50Ah battery with integrated BMS (M8 terminals)
Installation Notes
Installation should be carried out by a qualified electrician or experienced system integrator familiar with lithium battery systems. Although the SuperPack includes an internal BMS, correct fusing, cable sizing, and charge source compatibility (charger or solar charge controller must support LiFePO4 voltage profiles) remain the installer's responsibility. Series connection of SuperPack batteries is not supported. For marine installations, ensure the battery is mounted securely and in a ventilated location in accordance with applicable standards. High-voltage or large-capacity battery installations in commercial or grid-connected contexts should be assessed by a suitably qualified engineer.
