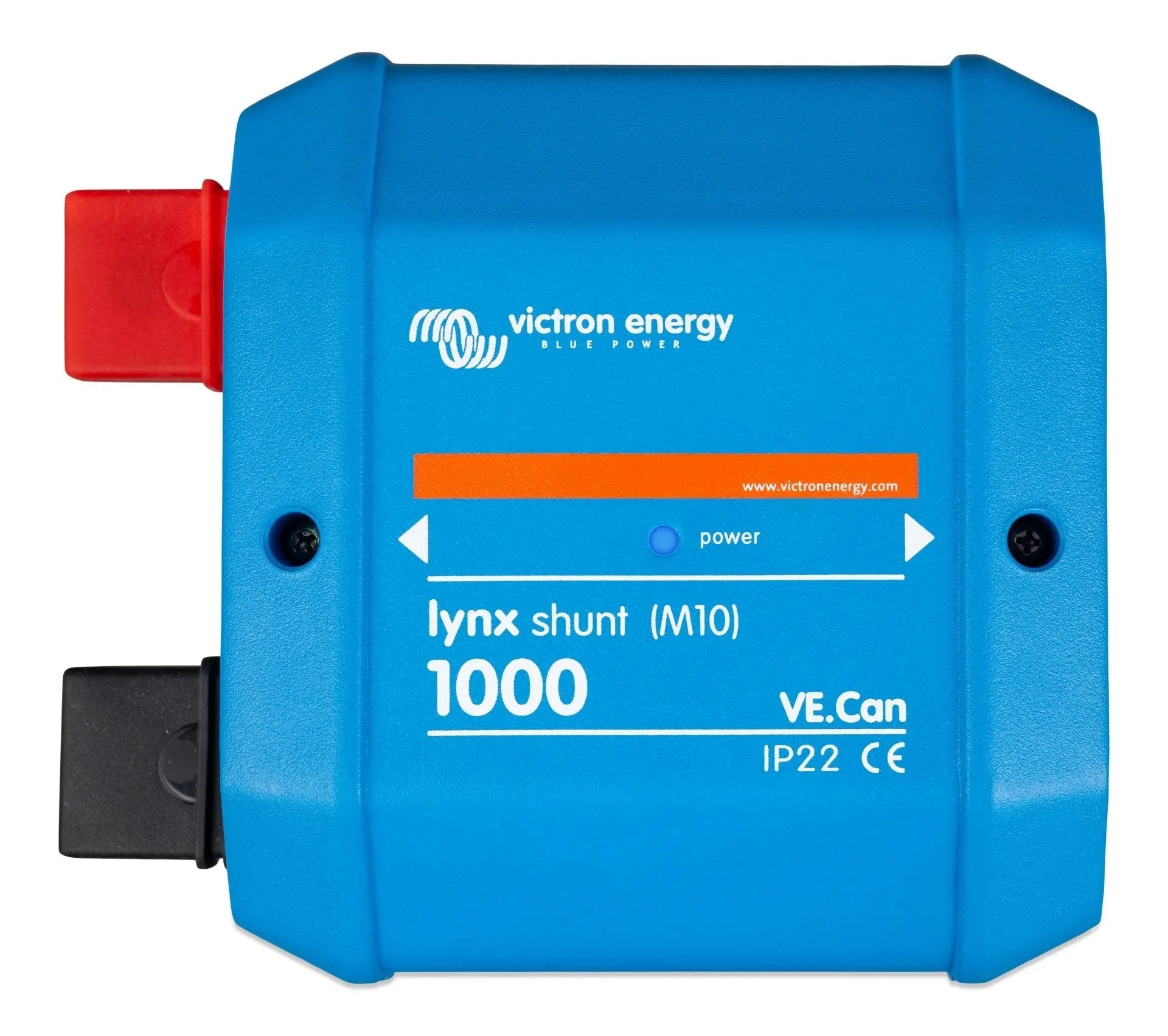

xLynx Shunt VE.Can (M10) – Enhanced Battery Monitoring for Larger DC Systems
The Lynx Shunt VE.Can (M10) is the latest addition to Victron Energy's advanced Lynx distribution system, designed to offer more robust connections and greater flexibility for large-scale battery systems. With M10 connections, this upgraded shunt delivers improved durability and performance, making it ideal for demanding applications.
Key Features of the Lynx Shunt VE.Can (M10)
- Features M10 connections for a stronger and more durable link, suitable for larger power systems.
- Includes a small busbar for applications requiring a higher-rated fuse than the standard 325A CNN fuse, offering flexibility in system design.
- Supports the placement of the main fuse outside the shunt, perfect for larger systems requiring more complex fuse arrangements.
- Seamless integration with GX devices through VE.Can communication for real-time monitoring and system optimisation.
- Ships with two RJ45 VE.Can terminators for secure and reliable system communication.
Optimised for High-Power Systems
The Lynx Shunt VE.Can (M10) is engineered to handle higher power demands, with the ability to support CNN fuses from 35A to 800A, as well as ANL fuses. Its increased flexibility makes it suitable for more extensive battery setups, where managing higher current loads is essential.
Part of the Modular Lynx Distribution System
As a core component of the Lynx Distribution System, the Lynx Shunt VE.Can (M10) works seamlessly with other Lynx modules such as the Lynx Power In and Lynx Distributor. Together, these modules form a comprehensive DC distribution solution, simplifying the management of batteries, inverters, and other essential equipment.
Technical Specifications
| Specification | Lynx Shunt VE.Can (M10) |
|---|---|
| Supply Voltage Range | 9 - 70 V DC |
| Supported System Voltages | 12, 24, or 48 V |
| Current Rating | 1000 A continuous |
| Power Consumption | 60 mA @ 12 V, 33 mA @ 24 V, 20 mA @ 48 V |
| Busbar Material | Tinned copper |
| Busbar Dimensions | 8 x 30 mm |
| Fuse Support | CNN 35A - 800A, ANL fuses |
| Enclosure Dimensions | 190 x 180 x 80 mm |
| Enclosure Material | ABS |
| Operating Temperature Range | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| Protection Class | IP22 |
