Description

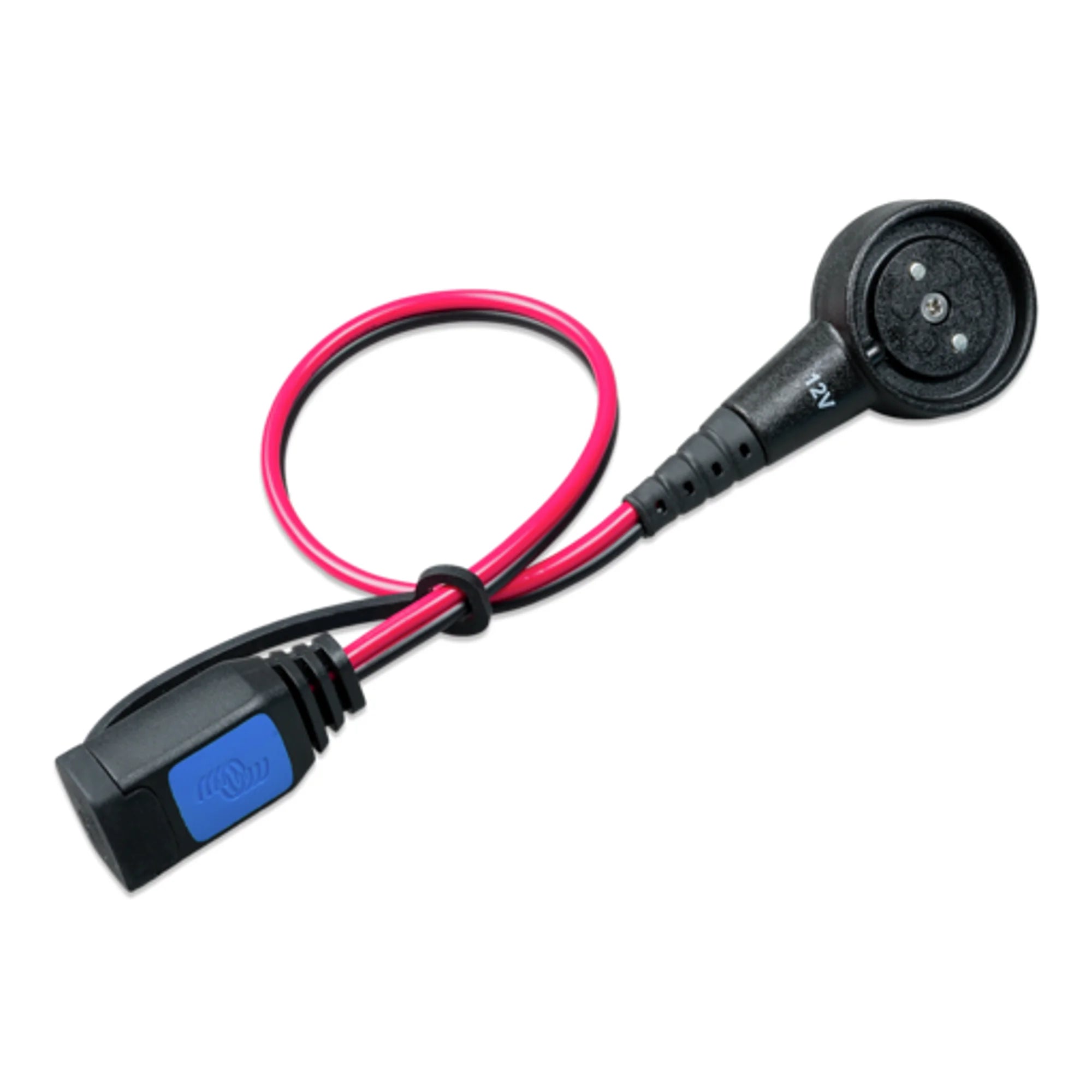

xMagCode Power Clip 12V (Max. 15A) – Victron Energy
The Victron MagCode Power Clip is a magnetic connector accessory designed for use with Victron Blue Power IP65 chargers. It provides a quick-connect 12V DC output point rated to a maximum of 15A, allowing a charger to be connected and disconnected without handling bare terminals or conventional plugs.
Key Features
- Magnetic connection mechanism for fast, tool-free attachment and detachment.
- Rated for 12V DC systems at a maximum continuous current of 15A.
- Designed specifically as an accessory for Victron Blue Power IP65 chargers.
- Compact and lightweight at 0.08 kg, suitable for fixed or portable installations.
- SKU BPC900500014, GTIN 8719076046578 for straightforward procurement and stock management.
Product Overview
The MagCode Power Clip uses a magnetic coupling to create a secure electrical connection between a Blue Power IP65 charger and a 12V battery or load. The magnetic design means the connector seats correctly without the need to align pins manually, and it releases cleanly under tension rather than pulling on wiring. This is particularly useful in workshop, marine or vehicle environments where chargers are connected and disconnected frequently.
At 15A maximum, the clip is suited to the output range of the Blue Power IP65 charger series. The connector is not intended for use outside this rated current or voltage range. Installers should ensure the wiring on both sides of the clip is rated to at least 15A and that connections are made to a correctly fused circuit.
Specifications
- SKU: BPC900500014
- GTIN: 8719076046578
- Voltage: 12V DC
- Maximum current: 15A
- Weight: 0.08 kg
- Compatible category: Accessories for Blue Power IP65 Chargers
Applications
- Frequent connection and disconnection of a Blue Power IP65 charger in a workshop or garage setting.
- Marine installations where a charger needs to be removed from the vessel quickly.
- Vehicle and caravan battery maintenance charging with a repeatable, consistent connection point.
- Light commercial fleet charging setups using Victron Blue Power IP65 chargers.
What Is Included
- 1 x MagCode Power Clip 12V (max. 15A)
Installation Notes
The MagCode Power Clip should be wired to a circuit protected by a fuse or circuit breaker rated no higher than 15A. Ensure all wiring is correctly sized for the current rating before use. While this is a low-voltage DC accessory, connections to vehicle, marine or battery systems should be made by a competent person familiar with 12V DC wiring practices. Do not exceed the 15A maximum current rating.
