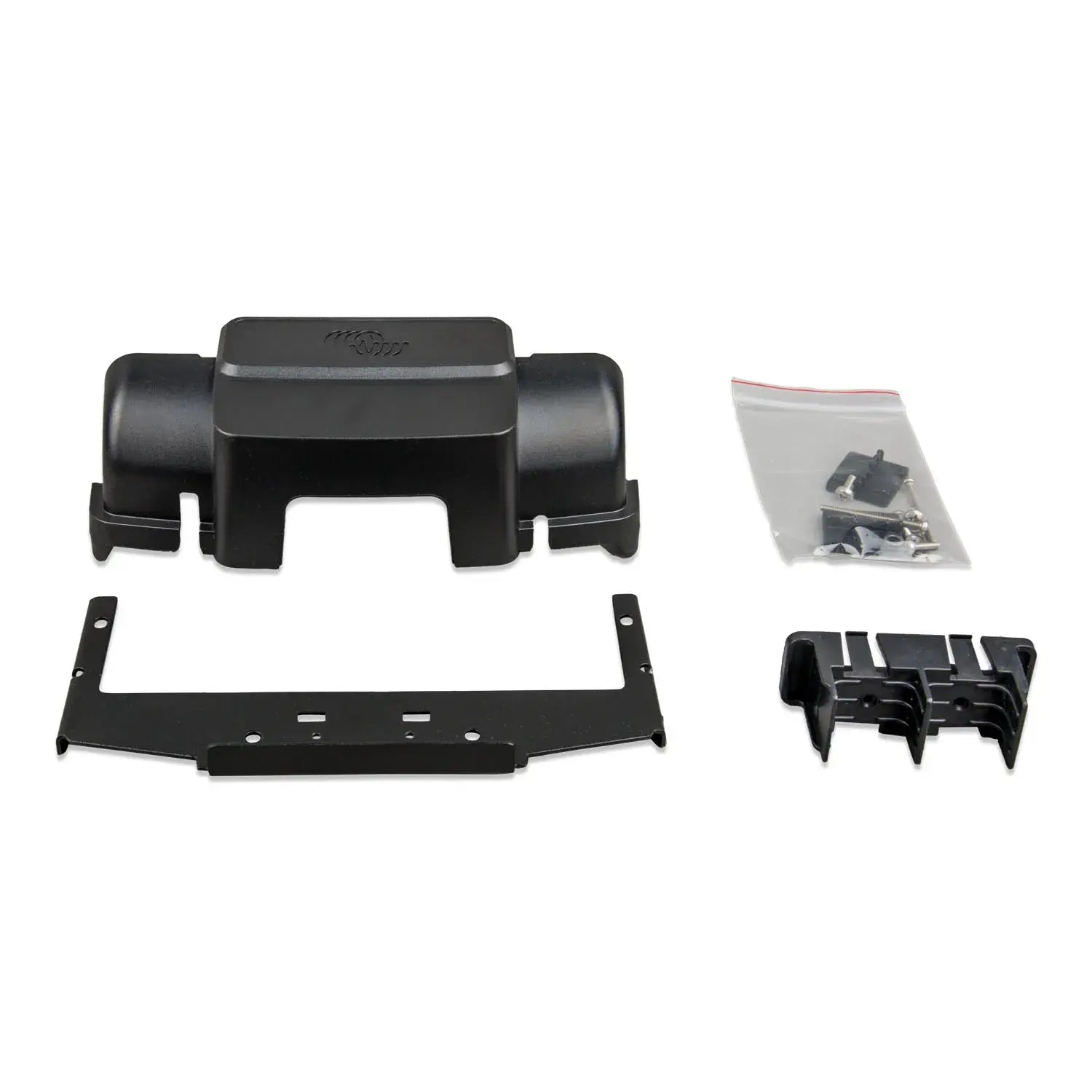

xVictron MPPT WireBox-L Tr for 150-45/60/70 & 250-60/70 - Enhanced Protection for Solar Chargers
Product Code: SCC950300210
The Victron MPPT WireBox-L Tr is designed to provide additional safety for MPPT Solar Chargers, compatible with 150-45/60/70 and 250-60/70 models. This protective cover securely conceals all DC terminals, reducing the risk of accidental contact or tampering. Ideal for installations in accessible areas, the WireBox-L Tr offers peace of mind by ensuring that all terminal screws are safely out of reach, making your solar setup safer for everyone.
Specifications
x| Specification | Details |
|---|---|
| Battery Voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated Charge Current | 70 A |
| Nominal PV Power, 12 V | 1000 W |
| Nominal PV Power, 24 V | 2000 W |
| Nominal PV Power, 36 V | 3000 W |
| Nominal PV Power, 48 V | 4000 W |
| Max. PV Short Circuit Current | 50 A |
| Maximum PV Open Circuit Voltage | 150 V at minimum operating temperature; 145 V at 25°C startup |
| Maximum Efficiency | 98% |
| Self-Consumption | Less than 35 mA @ 12 V |
| Charge Voltage 'Absorption' | Default setting: 14.4/28.8/43.2/57.6 V |
| Charge Voltage 'Float' | Default setting: 13.8/27.6/41.4/55.2 V |
| Charge Voltage 'Equalization' | Default setting: 16.2/32.4/48.6/64.8 V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (eight pre-programmed algorithms or user defined) |
| Temperature Compensation | -16 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95%, non-condensing |
| Maximum Altitude | 5000m (full rated output up to 2000m) |
| Pollution Degree | PD3 |
| Data Communication Port | VE.Direct Bluetooth |
| Remote on/off | Yes |
| Programmable Relay | Yes |
| Parallel Operation | Yes, up to 10 units can be synchronized with Bluetooth |
| Colour | Blue (RAL 5012) |
| PV Terminals | 35 mm² / AWG2 |
| Battery Terminals | 35 mm² / AWG2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions (h x w x d) | 215 x 250 x 95 mm |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Data Stored | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of Days Trends Data is Stored | 46 days |
