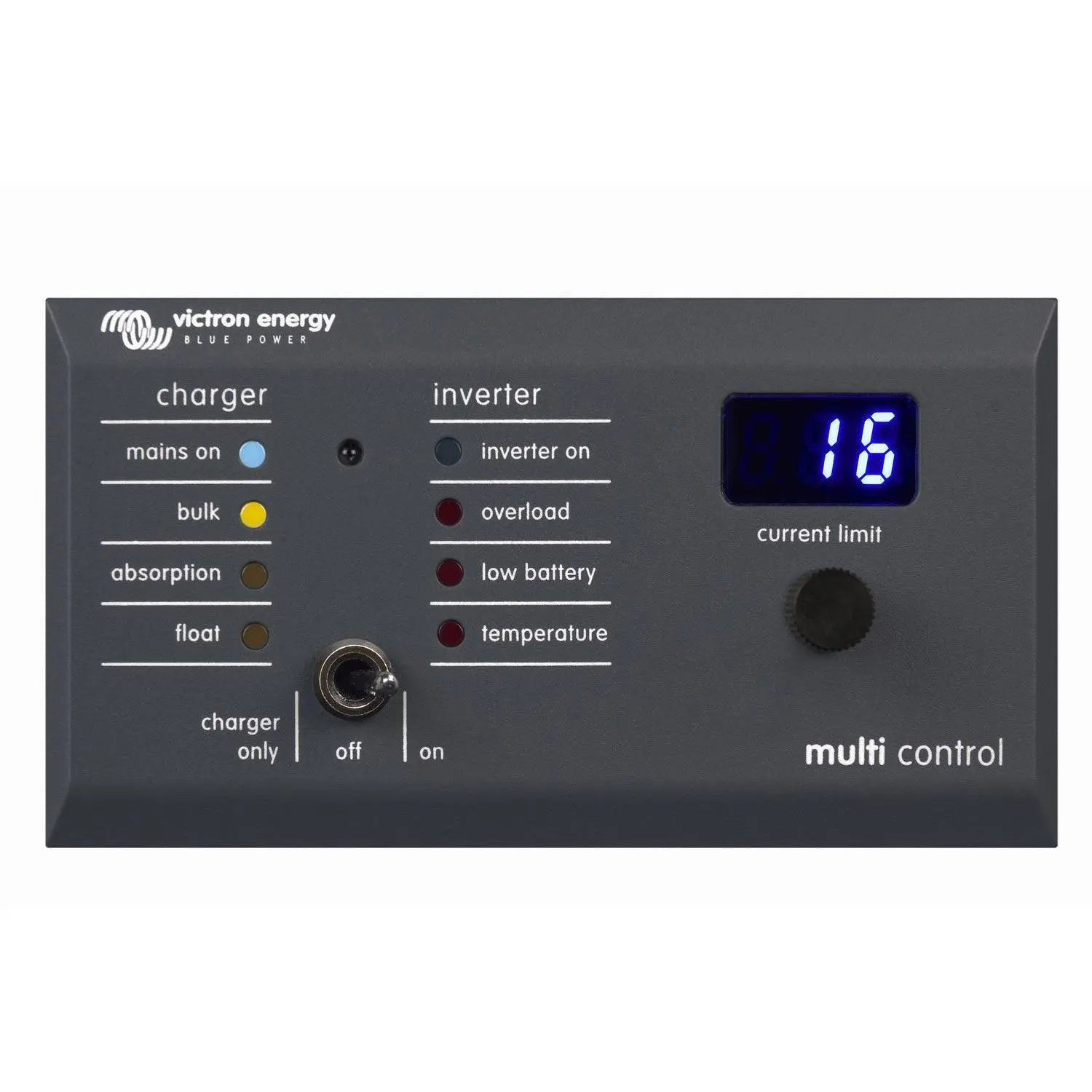

xDigital Multi Control 200/200A GX (Right Angle RJ45) — DMC000200010R
The Victron Digital Multi Control 200/200A GX is a remote control panel for Victron MultiPlus and Quattro inverter/chargers. It allows the user to switch the unit between operating modes and adjust the AC input current limit from a convenient panel-mounted location. The right-angle RJ45 connector makes it suited to installations where cable routing space behind the panel is limited.
Key Features
- Compatible with Victron MultiPlus and Quattro inverter/charger ranges via RJ45 connection.
- Right-angle RJ45 connector reduces the required depth behind the panel, useful in shallow enclosures and tight cable runs.
- Allows remote switching between Inverter Only, Charger Only, and On modes without accessing the inverter directly.
- Adjustable AC input current limit up to 200A, enabling shore power or generator input management from the panel.
- GX-compatible variant designed to work alongside GX devices (such as the Cerbo GX) in integrated Victron systems.
- Compact, panel-mount design with a clear rotary control and indicator display.
- Weight of 0.178 kg, suitable for lightweight panel or enclosure mounting.
Product Overview
The Digital Multi Control panel connects to a MultiPlus or Quattro via a standard RJ45 cable and provides local operator control without requiring access to the inverter/charger itself. This is particularly useful in marine, vehicle and off-grid installations where the inverter is mounted in a remote or inaccessible location. The rotary dial allows the AC input current limit to be set precisely, which is important when managing limited shore power supplies or generator outputs to avoid tripping breakers.
The GX variant of this panel is specifically designed for use in systems that include a Victron GX device. In these setups, the Digital Multi Control and the GX device share the RJ45 port on the MultiPlus or Quattro via a VE.Bus connection. The right-angle RJ45 plug on this retail version (DMC000200010R) is a practical detail that simplifies installation in enclosures where a straight plug would foul the back panel or adjacent components.
The 200/200A designation refers to the panel's compatibility with MultiPlus and Quattro units up to 200A AC input current limit adjustment range. This covers the vast majority of single and split-phase Victron inverter/charger installations.
Technical Specifications
- SKU: DMC000200010R
- GTIN: 8719076017011
- Weight: 0.178 kg
- Connector type: Right-angle RJ45
- AC input current limit range: Up to 200A
- Compatible systems: Victron MultiPlus, Quattro (VE.Bus)
- GX device compatible: Yes
Applications
- Marine vessels with MultiPlus or Quattro inverter/chargers requiring shore power management from a helm or nav station panel.
- Motorhomes and coaches where the inverter/charger is mounted in a remote bay and operator control is needed at the driver or living area.
- Off-grid cabins and buildings where the inverter is located in a plant room separate from the main living or working area.
- Commercial vehicle and specialist vehicle conversions using Victron inverter/charger systems.
- Any Victron VE.Bus installation where remote mode switching and current limit adjustment is required.
What Is Included
- 1 x Digital Multi Control 200/200A GX panel with right-angle RJ45 connector
Installation Notes
Connection is made via a standard CAT5 RJ45 cable between the Digital Multi Control and the VE.Bus port on the MultiPlus or Quattro. Where a GX device is also connected to the same VE.Bus port, a VE.Bus RJ45 splitter (sold separately) will be required. Installation should be carried out by a qualified electrician or Victron-trained installer familiar with VE.Bus system configuration. Do not connect this panel to non-VE.Bus Victron products.
