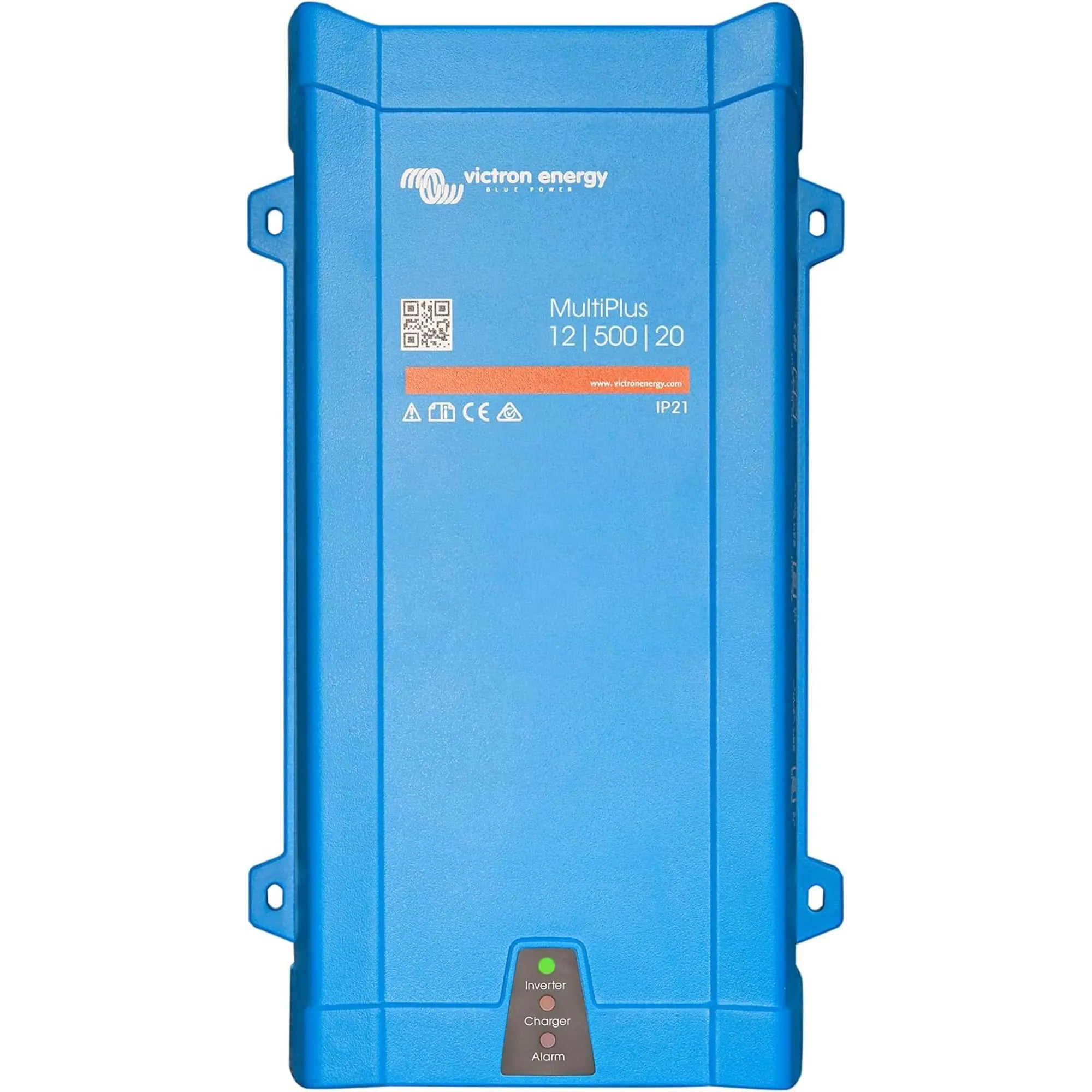

xVictron MultiPlus 12/500/20-16 230V VE.Bus Inverter Charger
The Victron MultiPlus 12/500/20-16 is a combined inverter and battery charger in a single compact unit, designed for 12V DC systems with 230V AC output. It is suited to off-grid installations, marine and vehicle applications, and small backup power systems where space and weight are at a premium.
Key Features
- 500VA inverter output at 230V AC from a 12V DC battery bank, with a continuous power rating suitable for small loads and essential circuits.
- 20A battery charger built in, with adaptive charge technology that adjusts the charge curve based on battery behaviour over time.
- 16A AC transfer switch allows connection to shore power or a generator, automatically switching between mains input and inverter output.
- VE.Bus communication interface enables system integration, remote monitoring and configuration via Victron GX devices and VEConfigure software.
- PowerControl function limits the load on a generator or shore supply by reducing charge current when AC loads are high, preventing overload.
- PowerAssist function supplements the AC input with inverter power during peak demand, allowing use of a smaller generator or limited shore supply.
- Supports lithium-ion and lead-acid battery chemistries, with configurable charge parameters to suit different battery types.
Product Overview
The MultiPlus 12/500/20-16 combines a sine wave inverter, a multi-stage battery charger and an automatic transfer switch into one unit. When AC input is available (shore power or generator), the unit charges the battery bank and passes power through to connected loads. When AC input is lost or disconnected, it switches to inverter mode in under 20 milliseconds, which is fast enough to keep most sensitive equipment running without interruption.
The 20A charger uses Victron's adaptive charge algorithm, which builds a profile of the battery over its first charge cycles and adjusts accordingly. This is particularly useful in installations where battery condition or history is unknown. The PowerControl and PowerAssist features are relevant where the available AC supply is limited, for example on a small generator or a marina berth with a restricted amperage allowance. Rather than tripping the supply, the unit reduces or supplements current draw automatically.
VE.Bus connectivity means the MultiPlus 12/500/20-16 can be configured remotely and integrated into a wider Victron system including MPPT solar charge controllers, GX monitoring devices and the VRM online portal. For standalone use, it can also be configured directly via the VEConfigure software over a VE.Bus to USB interface.
Technical Specifications
| Parameter | Value |
| SKU | PMP121500000 |
| DC Input Voltage (Nominal) | 12V |
| Inverter Output Power | 500VA |
| AC Output Voltage | 230V AC |
| Battery Charger Output | 20A |
| AC Transfer Switch | 16A |
| Communication Interface | VE.Bus |
| Weight | 5.5 kg |
| GTIN | 8719076046363 |
Applications
- Off-grid cabins and small remote installations with a 12V battery bank and limited AC load requirements.
- Marine vessels requiring shore power integration and battery charging with automatic switchover.
- Campervans, motorhomes and vehicle conversions where 230V AC output from a 12V system is needed.
- Small UPS (uninterruptible power supply) applications for sensitive equipment in commercial or residential settings.
- Backup power systems paired with solar charge controllers and a GX monitoring device.
What Is Included
- 1 x Victron MultiPlus 12/500/20-16 230V VE.Bus inverter charger unit
Installation Notes
Installation should be carried out by a qualified electrician or accredited installer familiar with DC battery systems and 230V AC wiring. The unit must be connected to an appropriately rated 12V battery bank with correctly sized DC cabling and fusing. For any grid-connected or shore-power applications, wiring must comply with current UK wiring regulations (BS 7671). VE.Bus configuration requires Victron's VEConfigure software and a compatible interface cable. Lithium battery installations may require additional BMS integration and charge parameter configuration before commissioning.
