Description

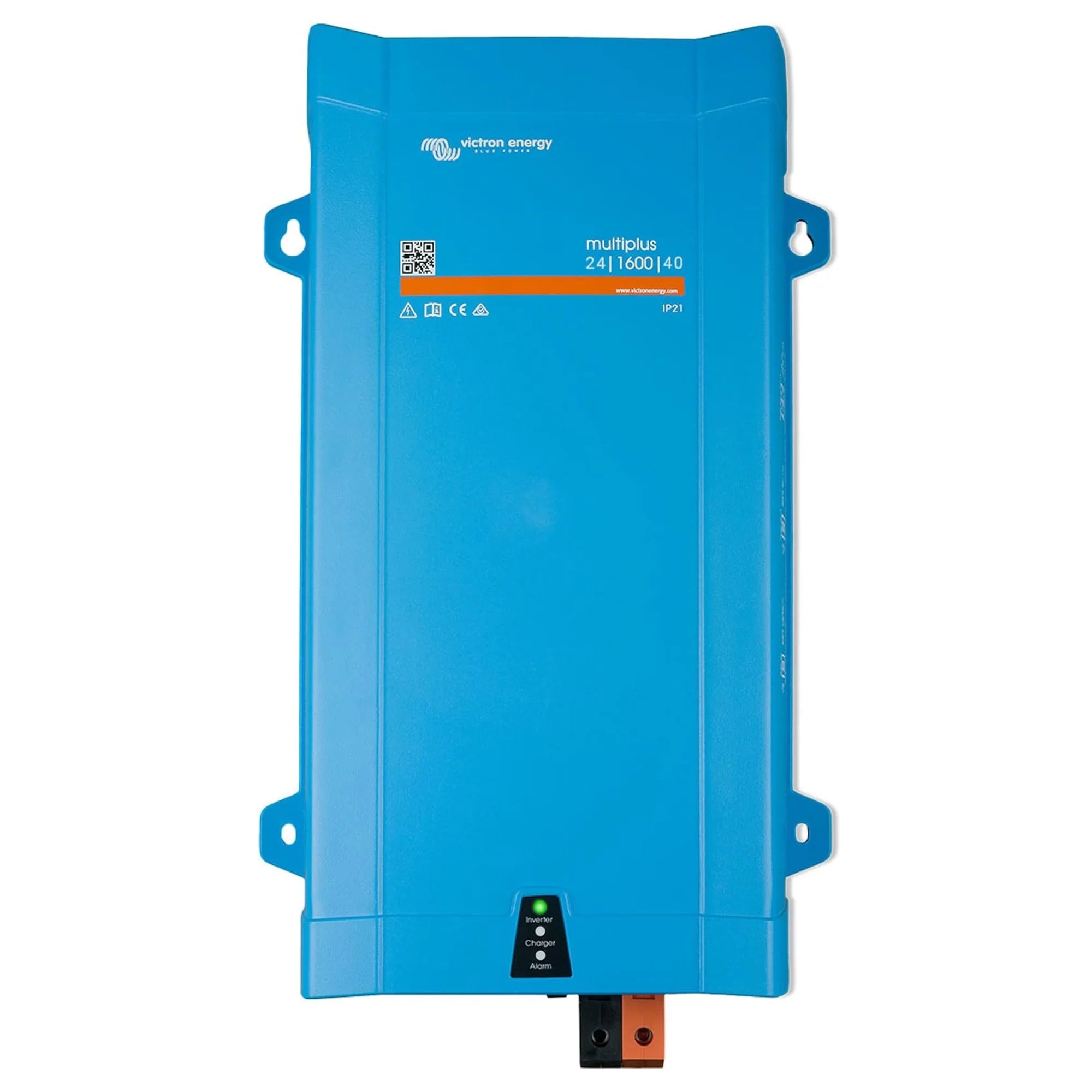

xVictron MultiPlus 24/1600/40-16 230V VE.Bus Inverter Charger
The Victron MultiPlus 24/1600/40-16 is a combined inverter and battery charger in a single unit, designed for 24V battery systems with a 1600VA inverter output and a 40A charger. It is suited to off-grid installations, marine and vehicle applications, and backup power systems where a compact, capable unit is needed.
Key Features
- 1600VA continuous inverter output with a 230V AC output, suitable for standard UK and EU loads.
- 40A multi-stage battery charger with adaptive charge algorithm, compatible with a wide range of 24V battery chemistries including lead-acid and lithium.
- 16A AC input with PowerControl and PowerAssist functions, preventing overload of a shore power or generator supply by supplementing it with battery power when demand exceeds the input limit.
- VE.Bus communication interface for system integration, parallel operation and three-phase configuration with additional MultiPlus units.
- Transfer switch with a typical switchover time of 20ms, fast enough to support most computers and sensitive electronics without interruption.
- Built-in battery temperature sensor input and configurable charge profiles via VEConfigure software.
- Programmable relay for generator start/stop or alarm functions.
Product Overview
The MultiPlus combines a true sine wave inverter with a professional battery charger in one enclosure. The inverter section produces a clean 230V AC sine wave output from a 24V DC battery bank, making it suitable for powering sensitive loads such as computers, medical equipment and variable-speed motor drives. The 1600VA rating covers a broad range of domestic and light commercial loads in off-grid or backup scenarios.
PowerAssist is a key practical feature for installations where the available AC input (shore power or generator) is limited. When connected loads exceed the input current limit, the MultiPlus draws the shortfall from the battery rather than tripping the supply. This allows a smaller, more economical generator to be used without risk of overload. The 16A input rating is configurable in software, so the unit can be set to match the actual supply capacity on site.
VE.Bus connectivity allows multiple MultiPlus units to be connected together for split-phase, parallel or three-phase systems. Configuration and monitoring are handled through Victron's VEConfigure and VictronConnect tools. The unit is compatible with the full Victron ecosystem including GX devices, Cerbo GX and Venus OS for remote monitoring and system management.
Technical Specifications
| Parameter | Value |
| SKU | PMP242160000 |
| Battery Voltage | 24V DC |
| Inverter Output Power | 1600VA |
| AC Output Voltage | 230V AC |
| Charger Output Current | 40A |
| AC Input Current | 16A |
| AC Output Waveform | True sine wave |
| Communication Interface | VE.Bus |
| Transfer Switch Time | Typically 20ms |
| Weight | 10 kg |
| GTIN | 8719076044987 |
Applications
- Off-grid residential and cabin installations with a 24V battery bank.
- Marine vessels requiring shore power charging and inverter backup.
- Vehicle conversions including motorhomes and expedition vehicles.
- Backup power systems for sensitive equipment where a fast transfer time is required.
- Small commercial off-grid sites with limited generator capacity, using PowerAssist to manage load.
- Expandable systems where additional MultiPlus units may be added in parallel or three-phase configuration via VE.Bus.
What Is Included
- Victron MultiPlus 24/1600/40-16 230V VE.Bus inverter charger unit.
Installation Notes
Installation should be carried out by a qualified electrician familiar with DC battery systems and AC wiring. Connections to the battery bank must be correctly fused and sized for the inverter's peak current draw. For any grid-connected or generator-connected application, compliance with local wiring regulations is required. In the UK, connections to the public electricity supply must comply with G98 or G99 as applicable. Lithium battery compatibility should be confirmed and charge parameters configured correctly via VEConfigure before commissioning. The VE.Bus interface requires appropriate cabling and a compatible GX device or computer for configuration and monitoring.
