Description

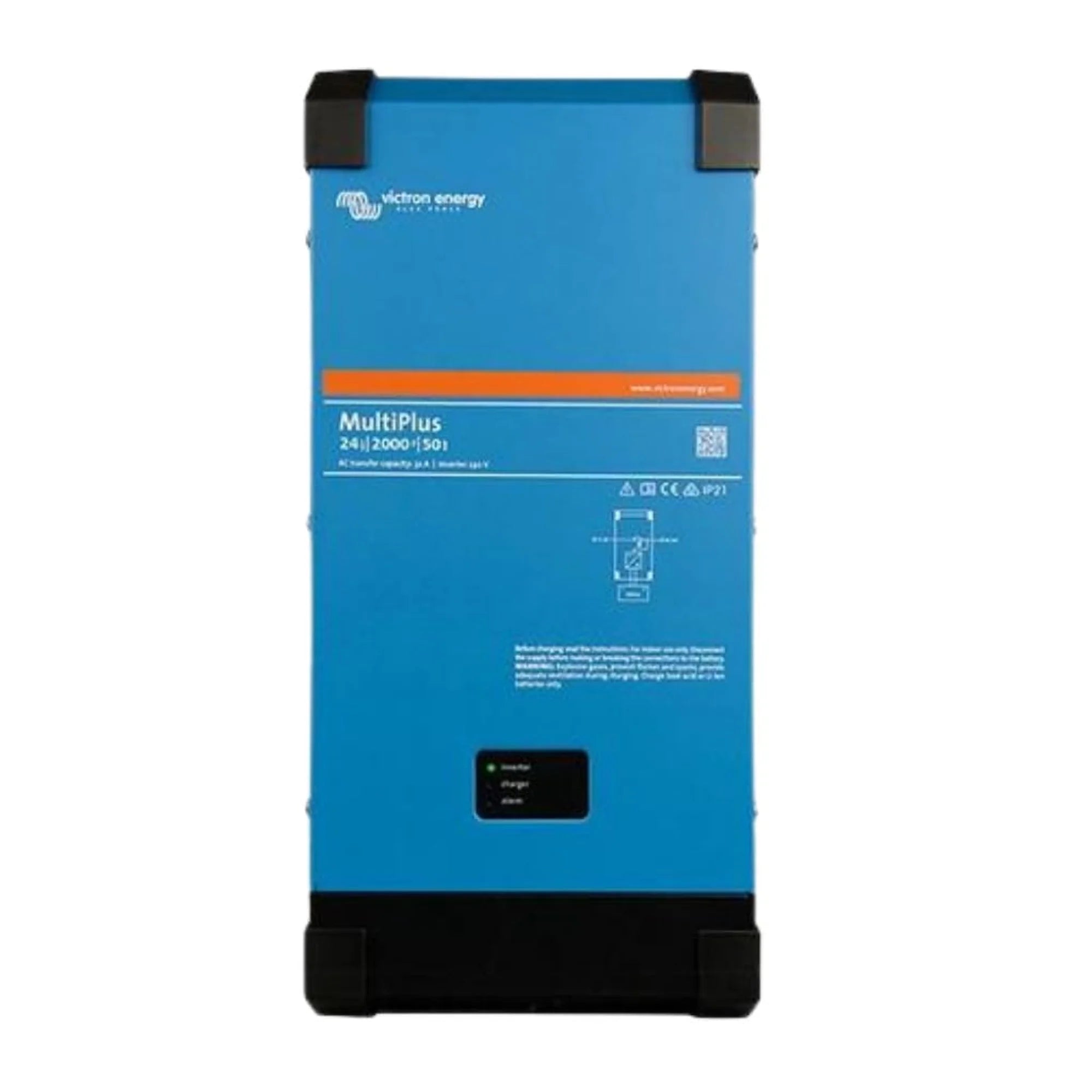

xVictron MultiPlus 24/2000/50-32 230V VE.Bus Inverter Charger
The Victron MultiPlus 24/2000/50-32 is a combined inverter and battery charger in a single unit, designed for 24V battery systems requiring 230V AC output. It is suited to off-grid installations, marine and vehicle applications, and backup power systems where a reliable, programmable inverter charger is needed.
Key Features
- 2000VA continuous inverter output at 230V AC from a 24V DC battery bank.
- 50A three-stage battery charger (bulk, absorption, float) with adaptive charge algorithm.
- 32A AC transfer switch allows connection to shore power or a generator, with automatic switchover.
- PowerAssist function supplements AC input with inverter power to prevent overloading a limited AC source.
- VE.Bus communication port enables system integration, parallel operation, and configuration via Victron software tools.
- Supports parallel and three-phase configurations using multiple units.
- Programmable relay for generator start/stop or alarm signalling.
- Compatible with Victron GX devices for full system monitoring and control.
Product Overview
The MultiPlus combines a true sine wave inverter with a professional battery charger. When AC input is available (shore power or generator), the unit charges the battery bank and passes power through to connected loads. When AC input is lost or disconnected, it switches to inverter mode in under 20 milliseconds, fast enough to keep most sensitive equipment running without interruption.
The 50A charger uses an adaptive algorithm that adjusts the charge curve based on battery behaviour, which helps extend battery life over time. The PowerAssist feature is particularly useful where the available AC source is limited, for example a small generator or a restricted shore power supply. The inverter makes up the shortfall, allowing loads to draw more than the AC source alone could supply.
VE.Bus connectivity is central to the MultiPlus range. It allows multiple units to be configured in parallel for higher current output, or in split- and three-phase arrangements for larger systems. Configuration is handled via VEConfigure software, and the unit integrates fully with Victron GX devices (such as the Cerbo GX) for remote monitoring and system management through the VRM portal.
Technical Specifications
| Parameter | Value |
| SKU | PMP242200000 |
| Battery Voltage | 24V DC |
| Inverter Output Power | 2000VA |
| AC Output Voltage | 230V AC |
| Charger Output Current | 50A |
| AC Transfer Switch Current | 32A |
| AC Output Waveform | True sine wave |
| Communication | VE.Bus |
| Weight | 15.5 kg |
| GTIN | 8719076052173 |
Applications
- Off-grid cabins, lodges and rural properties with 24V battery banks.
- Marine vessels requiring shore power integration and battery charging.
- Vehicle conversions (coaches, expedition vehicles) needing 230V AC output.
- Backup power systems for critical loads in commercial or residential settings.
- Generator-assisted off-grid systems where PowerAssist reduces generator run time.
- Multi-unit parallel installations requiring higher AC output capacity.
What Is Included
- 1x Victron MultiPlus 24/2000/50-32 230V VE.Bus inverter charger unit.
Installation Notes
Installation should be carried out by a qualified electrician or accredited installer familiar with DC battery systems and 230V AC wiring. The unit must be connected to an appropriately rated 24V battery bank with correctly sized DC cabling and fusing. For any grid-connected or generator-connected application, all wiring must comply with current UK wiring regulations (BS 7671). VE.Bus configuration requires Victron's VEConfigure software and a suitable interface cable or MK3-USB adapter. Do not install in enclosed spaces without adequate ventilation.
