Description

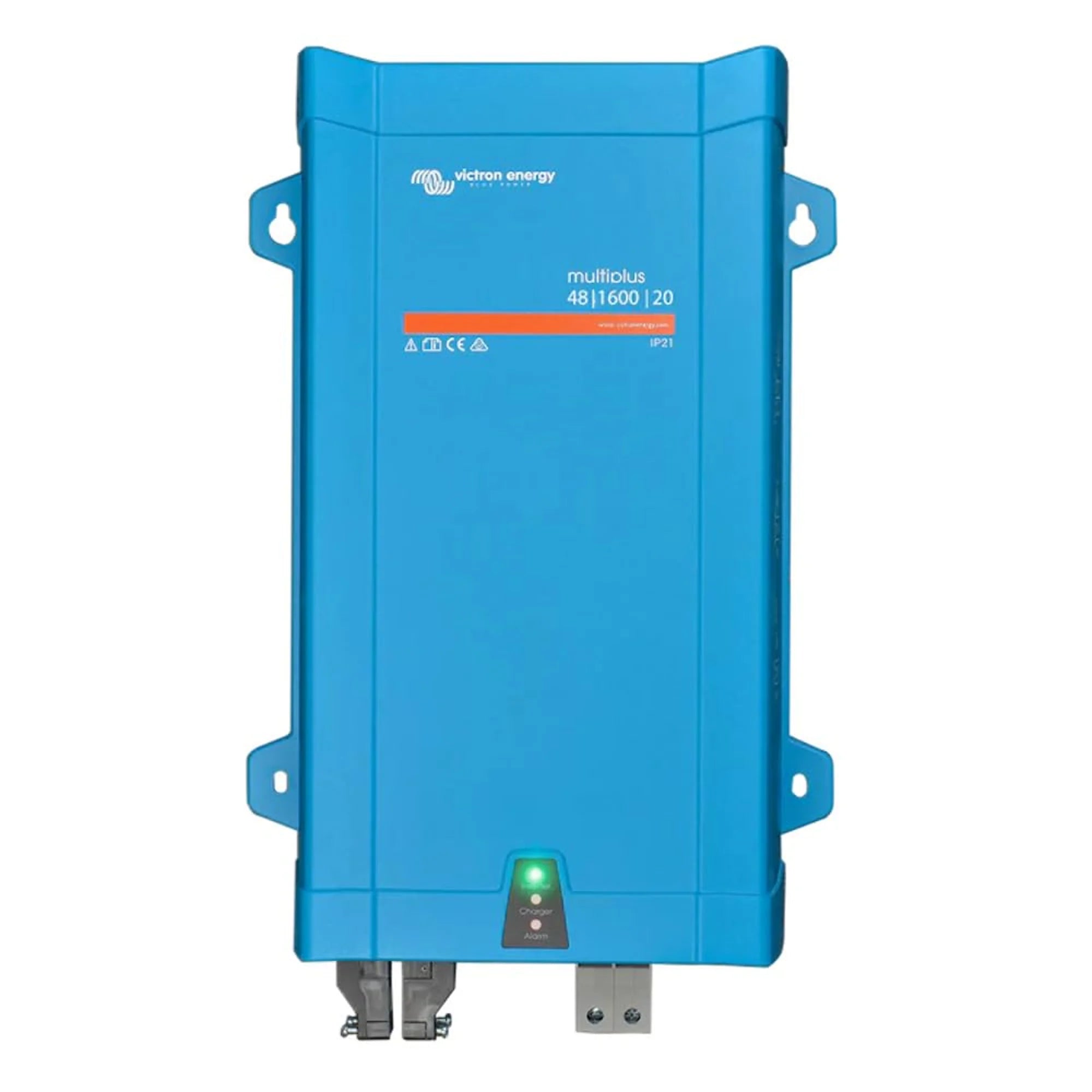

xVictron MultiPlus 48/1600/20-16 230V VE.Bus Inverter Charger
The Victron MultiPlus 48/1600/20-16 is a combined inverter and battery charger in a single unit, designed for 48V battery systems operating at 230V AC. It is suited to off-grid installations, backup power systems and mobile applications where a compact, capable inverter charger is required. The VE.Bus interface allows integration into larger Victron systems and enables advanced monitoring and configuration.
Key Features
- 1600VA continuous inverter output at 230V AC from a 48V DC battery bank.
- 20A battery charger built in, with adaptive charge algorithm to extend battery life.
- 16A AC transfer switch for seamless changeover between shore/generator power and inverter output.
- VE.Bus communication port for system integration, remote monitoring and configuration via Victron GX devices or MK3-USB interface.
- PowerAssist function supplements shore or generator power to prevent overload on limited AC sources.
- Supports parallel and three-phase operation when multiple units are used together.
- Configurable charge voltages and thresholds to suit different battery chemistries including lead-acid and lithium.
Product Overview
The MultiPlus 48/1600/20-16 combines a pure sine wave inverter with a multi-stage battery charger. When AC input is available from a generator or shore supply, the unit charges the battery bank and passes power through to connected loads. When AC input is lost or disconnected, the transfer switch activates and the inverter takes over, with a transfer time fast enough to keep most equipment running without interruption.
The 20A charger uses Victron's adaptive charging algorithm, which adjusts the charge profile based on battery behaviour over time. This is particularly useful in systems where charge cycles vary, such as those relying on a generator for periodic charging. The PowerAssist feature is valuable where the AC source is current-limited: the inverter draws from the battery to supplement the incoming supply, allowing loads to exceed what the source alone could support.
VE.Bus connectivity is a key practical advantage. It allows the unit to be monitored and configured remotely using a GX device (such as a Cerbo GX) or a laptop with the MK3-USB interface and VEConfigure software. Multiple MultiPlus units can be connected in parallel for increased capacity, or configured for split-phase or three-phase output, making this unit scalable for larger installations.
Technical Specifications
| Parameter | Value |
| SKU | PMP482160000 |
| Inverter Output Power | 1600VA |
| Battery Voltage | 48V DC |
| AC Output Voltage | 230V AC |
| Charger Output Current | 20A |
| AC Transfer Switch Current | 16A |
| AC Output Frequency | 50Hz |
| Communication Interface | VE.Bus |
| Weight | 10 kg |
| GTIN | 8719076046813 |
Applications
- Off-grid cabins, lodges and rural properties running on a 48V battery and generator system.
- Marine and narrowboat installations requiring 230V AC from a 48V DC battery bank.
- Backup power systems for critical loads in commercial or residential premises.
- Mobile and vehicle-based power systems where 230V AC output is needed from a 48V bank.
- Scalable off-grid systems where multiple units are paralleled for higher output capacity.
What Is Included
- Victron MultiPlus 48/1600/20-16 230V VE.Bus inverter charger unit.
Installation Notes
Installation should be carried out by a qualified electrician or accredited installer familiar with DC battery systems and 230V AC wiring. The unit must be connected to a 48V battery bank with appropriately rated DC cabling and fusing. For any grid-connected or generator-connected application, all relevant wiring regulations and local electrical codes must be observed. Configuration of charge parameters for lithium battery chemistries requires use of VEConfigure software via the MK3-USB interface or a compatible GX device. Do not connect this unit directly to the public grid without confirming compliance with applicable grid connection requirements.
