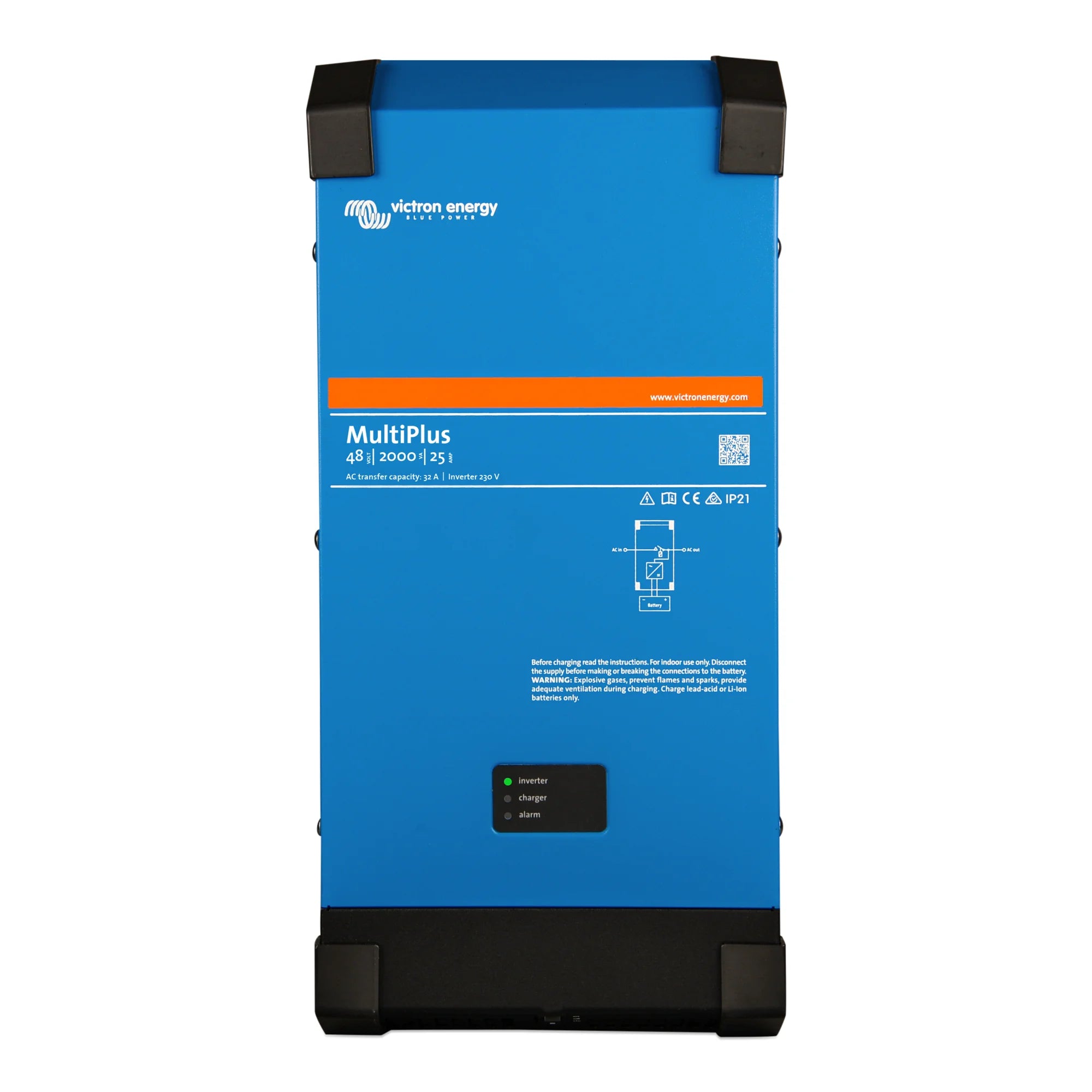

xVictron MultiPlus 48/2000/25-32 230V VE.Bus Inverter Charger
The Victron MultiPlus 48/2000/25-32 is a combined inverter and battery charger in a single unit, designed for 48V battery systems operating at 230V AC. It is suited to off-grid installations, backup power systems, and mobile or marine applications where reliable AC output and efficient battery charging are required in one compact device.
Key Features
- 2000VA continuous inverter output at 230V AC from a 48V DC battery bank.
- 25A battery charger built in, with adaptive charging algorithm to extend battery life.
- 32A AC transfer switch for seamless changeover between shore/generator power and inverter output.
- VE.Bus communication interface for system integration, parallel operation, and three-phase configuration.
- PowerAssist function supplements shore or generator power to prevent overload on limited AC sources.
- Configurable via VEConfigure software, allowing adjustment of charge voltages, thresholds, and AC input limits.
- Compatible with Victron GX devices for full system monitoring and control via VRM portal.
Product Overview
The MultiPlus 48/2000/25-32 combines a pure sine wave inverter with a multi-stage battery charger. When AC input is available from a generator or shore supply, the unit charges the battery bank and passes power through to connected loads. When AC input is lost or disconnected, the unit switches to inverter mode automatically. The transfer time is fast enough for most computers and sensitive equipment to remain operational without interruption.
The 25A charger uses an adaptive charge curve that adjusts to battery behaviour over time, which is particularly useful in systems where charge cycles vary. The 32A transfer switch handles the full rated input current without requiring an external changeover relay. VE.Bus connectivity allows multiple MultiPlus units to be wired in parallel for increased capacity, or configured in split-phase or three-phase arrangements, making this unit scalable beyond its standalone 2000VA rating.
PowerAssist is a practical feature for installations with a limited AC supply, such as a small generator or a restricted shore power connection. It allows the inverter to supplement the incoming AC current, so connected loads can draw more power than the AC source alone could provide. This avoids nuisance tripping of generators or shore supply breakers without requiring a larger AC source.
Technical Specifications
| Parameter | Value |
| SKU | PMP482200000 |
| Battery Voltage | 48V DC |
| Inverter Output | 2000VA / 230V AC |
| Charger Current | 25A |
| AC Transfer Switch | 32A |
| AC Output Voltage | 230V AC |
| Communication | VE.Bus |
| Weight | 15.5 kg |
| GTIN | 8719076049470 |
Applications
- Off-grid cabins, lodges, and rural properties running on 48V battery banks.
- Backup power systems for critical loads where mains supply is unreliable.
- Marine and narrowboat installations requiring 230V AC from a 48V DC system.
- Mobile and vehicle-based systems such as expedition vehicles or large motorhomes.
- Scalable multi-unit installations using VE.Bus parallel or three-phase configurations.
- Systems with small generators where PowerAssist is needed to extend generator capacity.
What Is Included
- Victron MultiPlus 48/2000/25-32 230V inverter charger unit.
Installation Notes
This unit must be installed by a qualified electrician or accredited installer. Connections to 230V AC mains or generator supplies involve live voltages that present a serious risk if handled incorrectly. For any grid-connected application in the UK, compliance with G98 or G99 requirements and notification to the local Distribution Network Operator (DNO) will apply. Battery bank wiring must be rated for the high DC currents involved in a 48V system. VE.Bus configuration requires Victron's VEConfigure software and a suitable interface cable. Do not attempt to configure or commission this unit without the appropriate tools and technical knowledge.
