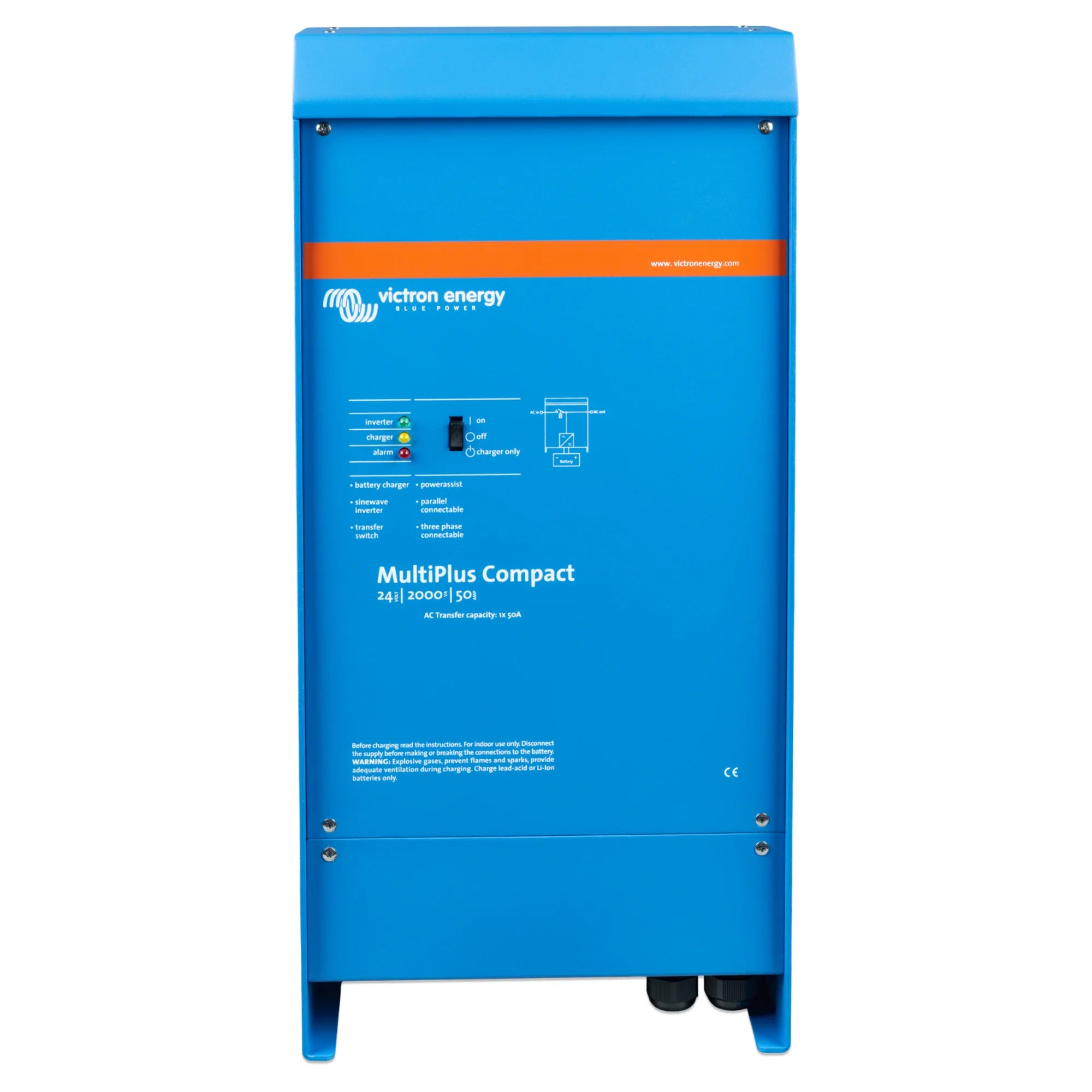

xVictron MultiPlus Compact 24/2000/50-30 230V VE.Bus Inverter Charger
The Victron MultiPlus Compact 24/2000/50-30 is a combined inverter and battery charger in a single unit, designed for 24V battery systems requiring up to 2000VA of AC output at 230V. It is well suited to off-grid installations, marine and vehicle applications, and backup power systems where space is limited and reliable AC power is essential.
Key Features
- 2000VA continuous inverter output at 230V AC from a 24V DC battery bank.
- 50A battery charger built in, with a 30A AC transfer switch for shore or generator power.
- VE.Bus communication interface for system integration, parallel operation and remote monitoring via Victron GX devices.
- PowerControl function limits the load on a generator or shore supply by reducing charge current when AC loads are high.
- PowerAssist function supplements shore or generator power with battery power during peak demand, allowing use of a smaller AC supply.
- Compact form factor with a weight of 14.3 kg, making it practical for installations where space and weight are constrained.
- Transfer switch activates in under 20 milliseconds, fast enough to keep most computers and sensitive equipment running without interruption.
Product Overview
The MultiPlus Compact combines a true sine wave inverter with a multi-stage adaptive battery charger. The charger uses an adaptive algorithm that adjusts the charge curve to the actual battery behaviour, which extends battery life compared to fixed-curve chargers. The 50A charge current is sufficient for most medium-capacity 24V battery banks used in off-grid cabins, boats and vehicles.
VE.Bus connectivity is a key practical advantage. It allows multiple MultiPlus units to be configured in parallel for higher power output, or in split-phase and three-phase arrangements. It also enables full integration with Victron's GX monitoring devices (such as the Cerbo GX), giving installers remote visibility and control over the system. Configuration is carried out using Victron's VEConfigure software via a VE.Bus to USB interface.
The PowerControl and PowerAssist functions are particularly useful where the available AC supply is limited, such as a marina shore connection or a small generator. PowerControl prevents the charger from overloading the supply; PowerAssist draws on the battery to cover demand peaks that would otherwise trip a breaker or overload the source.
Technical Specifications
| Parameter | Value |
| SKU | CMP242200000 |
| Battery Voltage | 24V DC |
| Inverter Output | 2000VA / 230V AC |
| Charger Output | 50A |
| AC Transfer Switch | 30A |
| AC Output Voltage | 230V |
| Communication | VE.Bus |
| Weight | 14.3 kg |
| GTIN | 8719076037552 |
Applications
- Off-grid cabins and remote buildings requiring 230V AC from a 24V battery bank.
- Marine installations on sailing yachts and motorboats with 24V DC systems.
- Campervan and motorhome conversions needing mains-equivalent AC output.
- Backup power for critical equipment such as communications, medical devices or security systems.
- Small off-grid solar systems where the MultiPlus acts as the central inverter-charger.
- Generator-assisted systems where PowerAssist reduces the required generator size.
What Is Included
- Victron MultiPlus Compact 24/2000/50-30 230V VE.Bus inverter charger unit.
Installation Notes
Installation should be carried out by a qualified electrician or accredited installer familiar with DC battery systems and 230V AC wiring. For any grid-connected or grid-backup application in the UK, compliance with G98 or G99 requirements must be assessed and met. High-current DC cabling between the battery bank and the unit must be correctly rated and fused. VE.Bus configuration requires Victron's VEConfigure software and a compatible interface cable. Consult Victron's wiring guidelines for correct cable sizing, fusing and ventilation clearances.
