Description

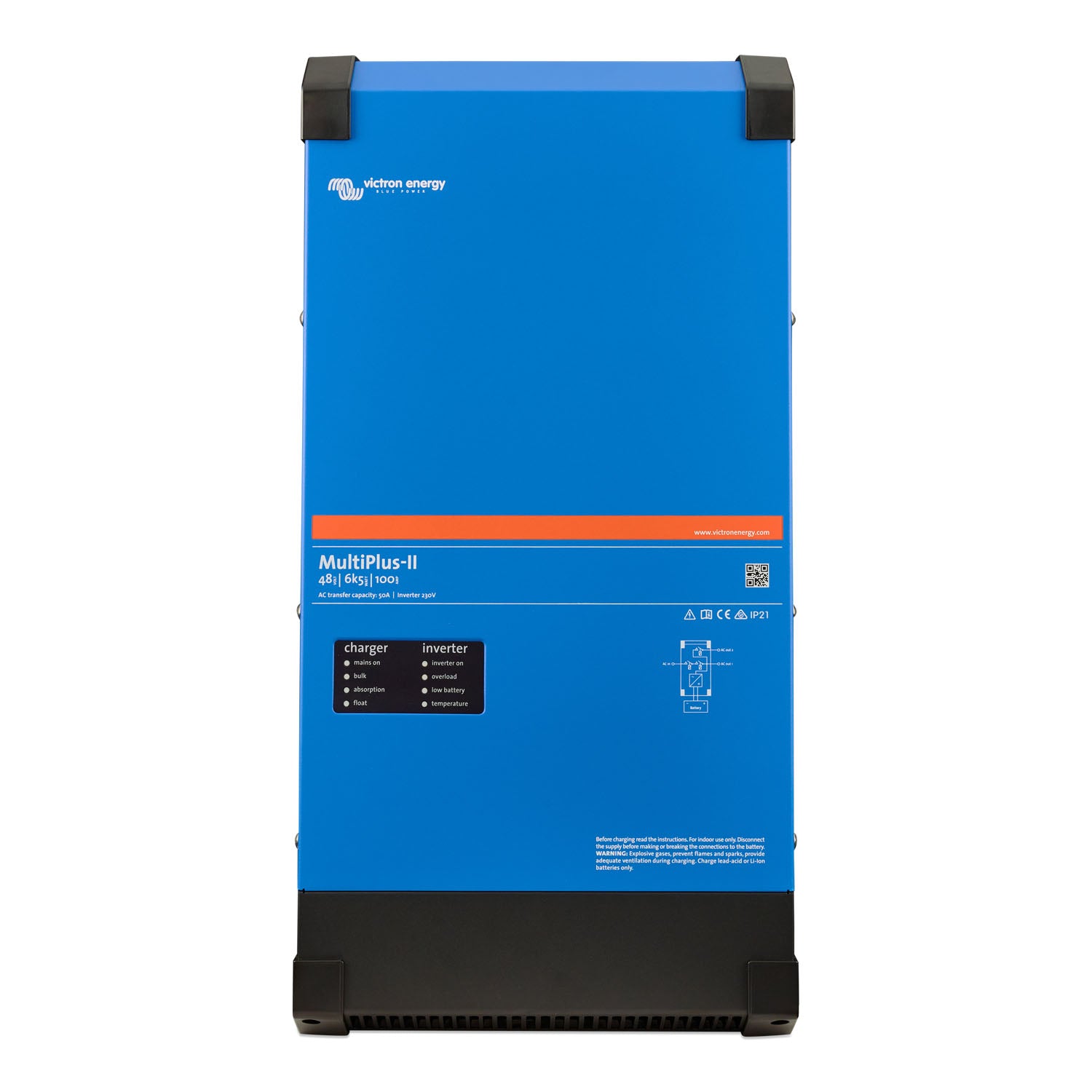

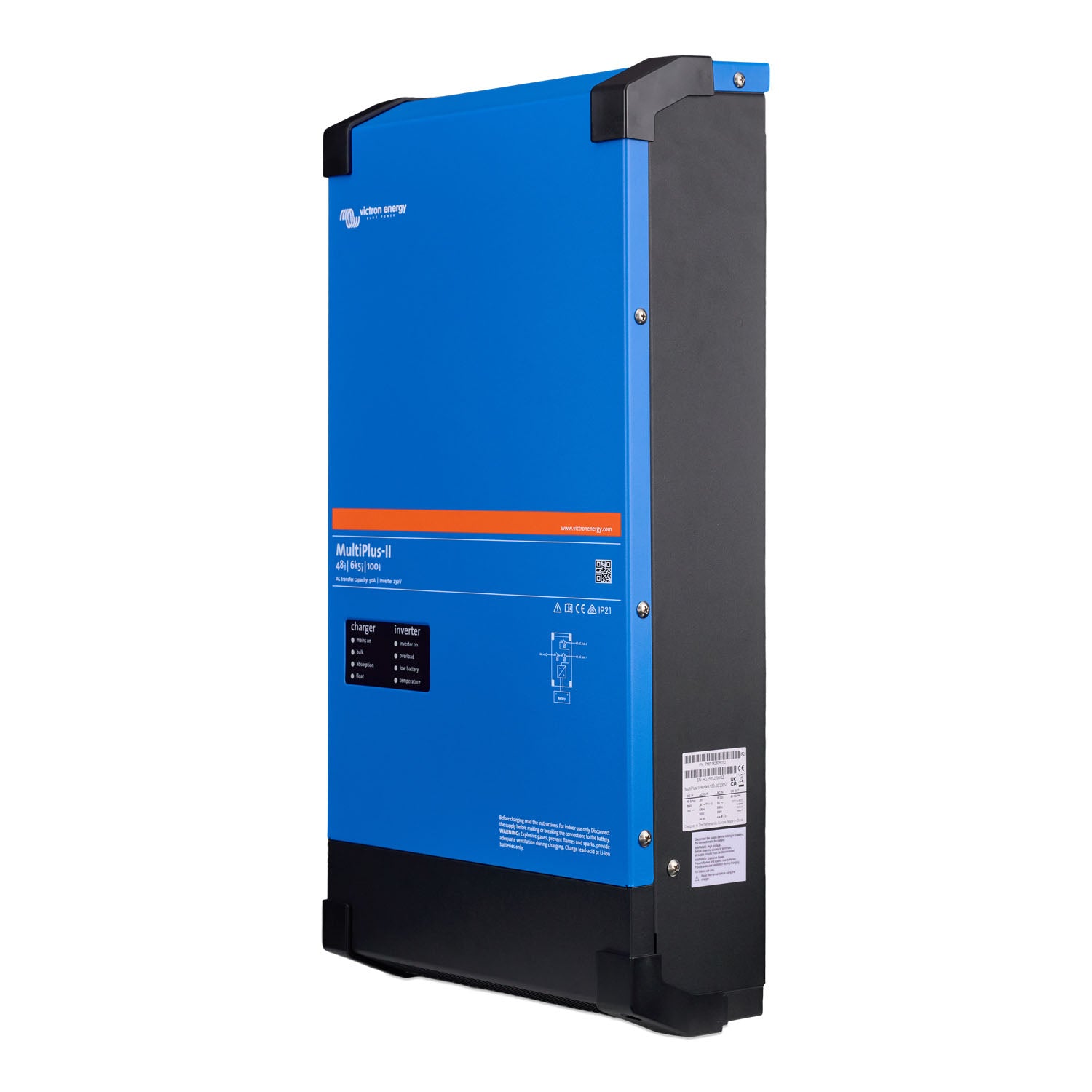

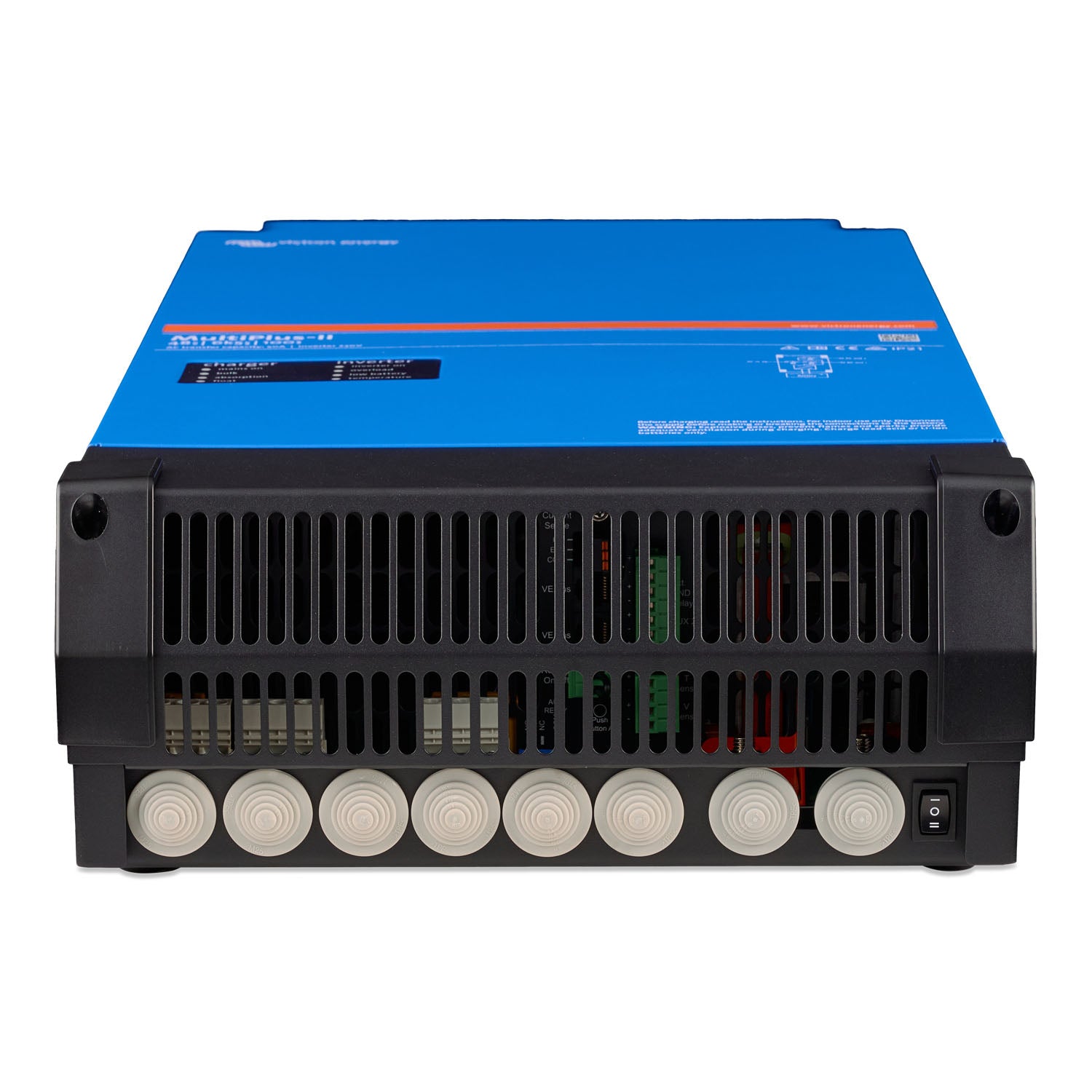

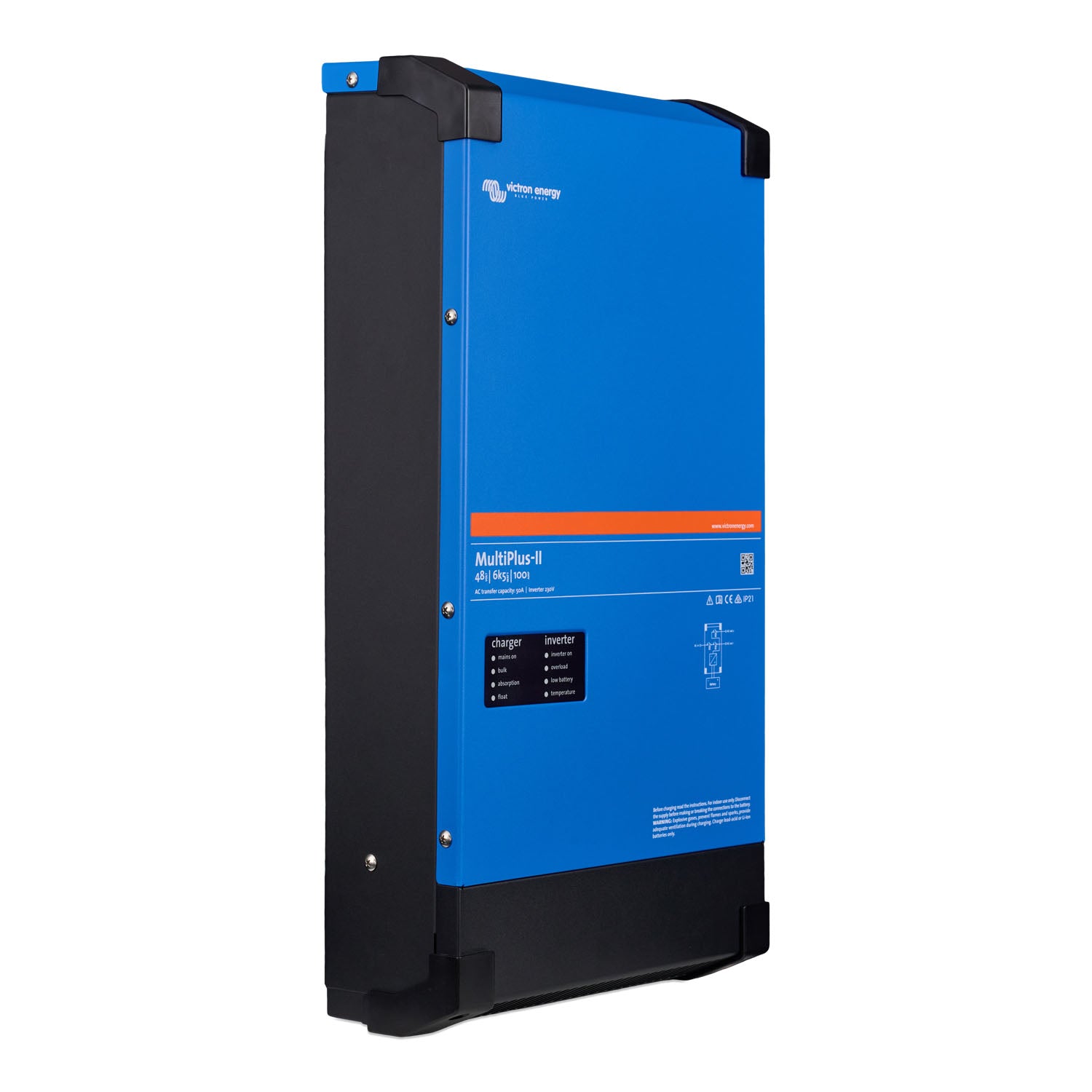

xVictron MultiPlus II 48/6k5/100-50 230V Inverter Charger - PMP482605012
The Victron MultiPlus II 48/6k5/100-50 is a powerful and reliable inverter charger designed for modern energy storage, off grid and hybrid solar systems. This latest generation MultiPlus II delivers more power per kg and per dm³, with improved high temperature performance, making it ideal for demanding residential, commercial, marine and mobile applications.
NEW MODELS Improved Performance
The new MultiPlus II models offer increased power density and enhanced thermal performance, allowing higher output in compact installations. This makes the unit more efficient, more robust and better suited for continuous operation in challenging environments.
All in One Inverter and Charger with ESS Functionality
The MultiPlus II combines a pure sine wave inverter with an advanced battery charger in a single unit. It fully supports Victron Energy Storage System configurations and includes built in anti islanding protection for safe grid connected operation. It is compatible with solar charge controllers and grid tied inverters, ensuring continuous AC power availability even during grid outages.
PowerControl and PowerAssist Technology
PowerControl allows you to set a maximum input current from the grid or generator, preventing overloads by intelligently managing available AC power. PowerAssist adds extra power from the battery during short peak demands and automatically recharges the battery when loads are reduced. This ensures stable operation even when grid or generator capacity is limited.
Uninterrupted Power with Dual AC Outputs
The main AC output provides seamless power transfer in less than 20 milliseconds, protecting sensitive equipment such as computers and electronics. A second AC output supplies power only when grid or generator input is available, ideal for loads that should not discharge the battery, such as water heaters.
Scalable Power with Parallel and Three Phase Operation
Up to six MultiPlus II units can be connected in parallel for increased power output. Three phase configurations are supported, allowing the system to scale from a single inverter to large multi unit installations.
Easy Configuration and System Monitoring
System settings can be adjusted quickly using VEConfigure software with an MK3 USB interface. Local monitoring options include Cerbo GX, Ekrano GX, Venus GX, battery monitors and digital control panels. Bluetooth monitoring is available with the optional VE.Bus Smart dongle.
Remote Monitoring via Victron VRM
When connected to the internet, the system can be monitored and managed remotely through the Victron Remote Management platform. Live system data, alarms and performance graphs are accessible from any device, with notifications available via email or push alerts. The VRM app is available for both iOS and Android.
Ideal Applications
• Residential hybrid and off grid solar systems
• Backup power and energy storage solutions
• Marine and yachting installations
• Mobile and vehicle based power systems
• Commercial and professional energy systems
Product Reference
Model Victron MultiPlus II 48/6k5/100-50 230V SKU PMP482605012
Specifications
x| Victron MultiPlus II 48/6k5/100-50 230V | PMP482605012 | |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input current | 50 A |
| Inverter | |
| DC input voltage range | 38 to 60 V |
| AC output | 230 VAC ± 2 %, 50 Hz ± 0.1 % |
| Continuous output power at 25 °C | 6 kW |
| Continuous output power at 40 °C | 5.7 kW |
| Continuous output power at 65 °C | 4.6 kW |
| Time limited power (cold start) | 6.5 kW for 4 h / 8 kW for 1 h |
| Max apparent feed in power | 6 kW |
| Peak power | 11 kW for 1 min |
| Maximum efficiency | 96 % |
| Zero load power | 28 W |
| Zero load power (AES mode) | 18 W |
| Charger | |
| AC input voltage range | 187 to 265 VAC, 45 to 65 Hz |
| Absorption charge voltage | 57.6 V |
| Float charge voltage | 55.2 V |
| Storage mode voltage | 52.8 V |
| Max battery charge current at 25 °C | 100 A |
| Max battery charge current at 40 °C | 95 A |
| Compatible battery chemistries | Lithium, Lead acid, Zinc bromine and more |
| General | |
| Auxiliary output | Yes (32 A) |
| External AC current sensor | Optional 50 A or 100 A |
| Operating temperature | -40 to +65 °C |
| Protection category | IP21 |
| Weight | 29 kg |
| Dimensions (H x W x D) | 644 x 320 x 150 mm |
