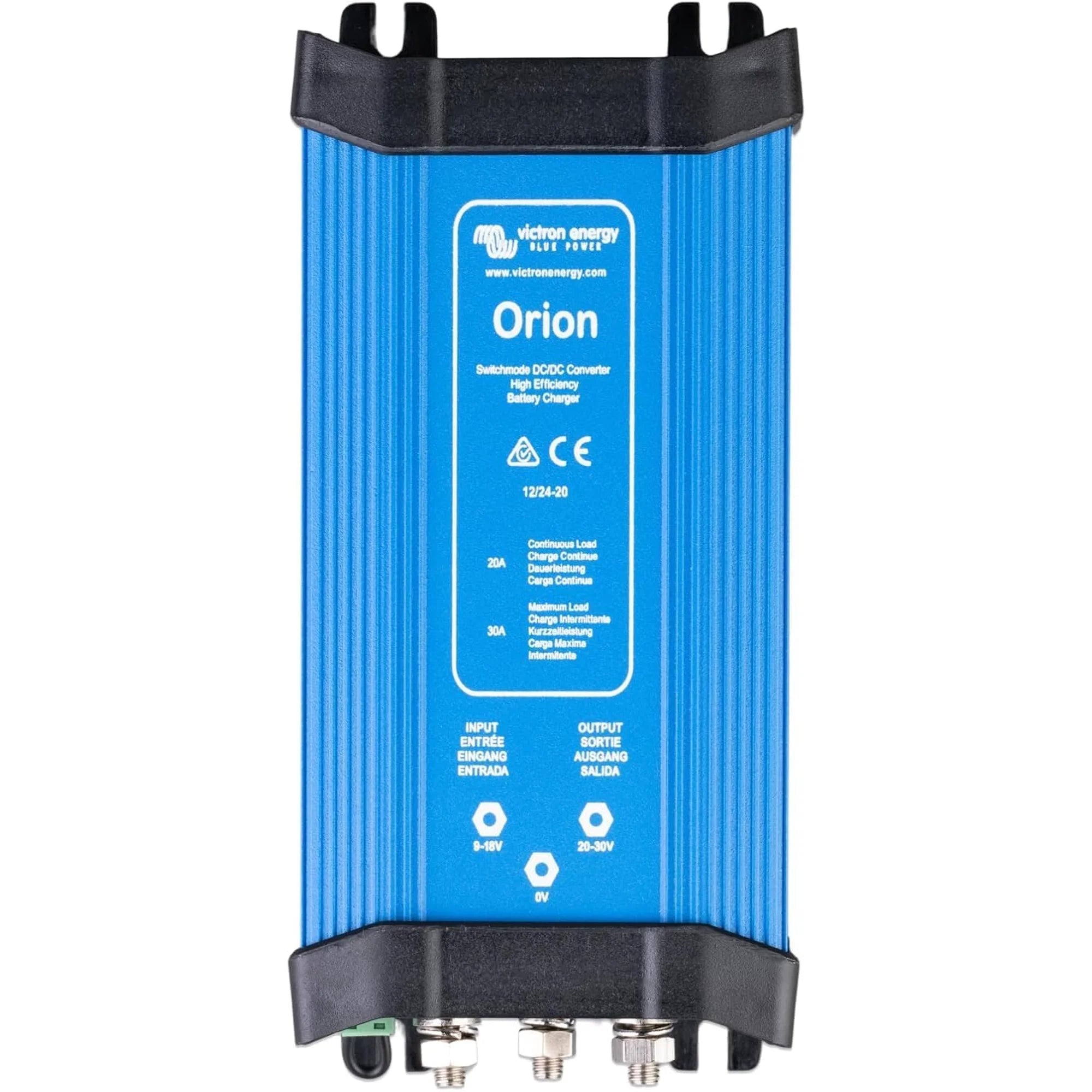

xVictron Orion 12/24-20 DC-DC Converter IP20
The Victron Orion 12/24-20 is a non-isolated DC-DC converter that steps up a 12V supply to a 24V output at up to 20A. It is designed for professional installations where a 24V load or battery bank must be powered from a 12V source, without the need for galvanic isolation between input and output.
Key Features
- Converts 12V DC input to 24V DC output at a continuous 20A output current.
- Non-isolated topology: input and output share a common ground, which simplifies wiring in single-ground vehicle and marine installations.
- IP20 protection rating: suitable for installation in enclosed, dry environments such as cabinets, panels and equipment bays.
- Compact and lightweight at 0.926 kg, making it practical for space-constrained installations.
- Fixed output voltage: no adjustment required, providing a stable 24V supply directly from a 12V source.
- Part of the Victron Orion range, compatible with Victron system design conventions and wiring standards.
Product Overview
The Orion 12/24-20 addresses a common challenge in mixed-voltage systems: powering 24V equipment or charging a 24V battery bank from a 12V source. The non-isolated design means the converter does not provide electrical separation between input and output. This is acceptable in most vehicle, caravan and marine installations where both circuits share the same chassis or hull ground, but it must be taken into account during system design.
At 20A continuous output, the converter can deliver up to 480W at 24V. This makes it suitable for running 24V loads such as inverters, winches, lighting circuits or auxiliary battery charging from a primary 12V bank. The IP20 rating means the unit is protected against solid objects greater than 12mm but is not water or dust resistant, so it must be installed in a dry, enclosed location away from moisture and direct contamination.
Specifications
- SKU: ORI122420020
- Input voltage: 12V DC
- Output voltage: 24V DC
- Output current: 20A continuous
- Maximum output power: 480W
- Isolation: Non-isolated
- Protection rating: IP20
- Weight: 0.926 kg
- GTIN: 8719076022763
Applications
- Powering 24V auxiliary circuits from a 12V vehicle or vessel battery bank.
- Charging a 24V battery bank from a 12V alternator or solar system.
- Running 24V inverters or equipment from a 12V primary supply in caravans, motorhomes and boats.
- Panel and cabinet installations where a stable 24V rail is required from a 12V source.
- Off-grid and mobile systems with mixed 12V and 24V voltage requirements.
What Is Included
- 1x Victron Orion 12/24-20 DC-DC Converter
Installation Notes
The Orion 12/24-20 is a non-isolated converter: the input and output grounds are connected internally. Verify that your system design is compatible with a shared ground before installation. The IP20 rating requires the unit to be mounted inside a dry, enclosed enclosure, away from moisture, condensation and direct contact. Correct fusing on both the input and output sides is essential. Installation should be carried out by a qualified electrician or experienced system integrator familiar with DC power systems.
