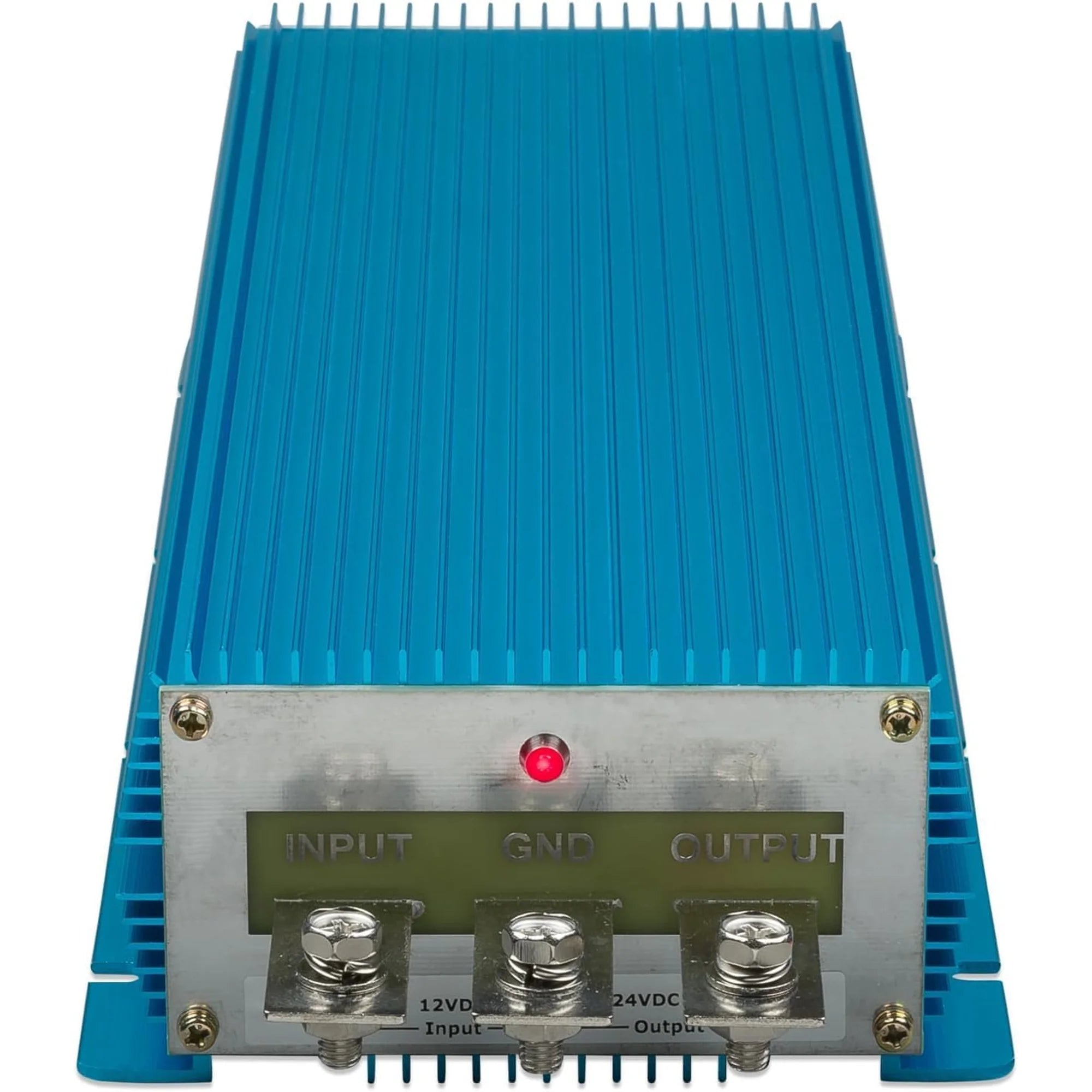

xVictron Orion IP67 12/24-50A (1200W) Non-Isolated DC-DC Converter
The Victron Orion IP67 12/24-50A is a non-isolated DC-DC converter that steps a 12V input up to a 24V output at up to 50A continuous current, delivering 1200W of conversion power. It is designed for professional vehicle, marine and off-grid installations where a sealed, weatherproof unit is required alongside reliable voltage conversion between two DC systems.
Key Features
- Converts 12V DC input to 24V DC output at up to 50A continuous, providing 1200W of conversion capacity.
- IP67-rated enclosure provides full dust protection and temporary water immersion resistance, suitable for demanding installation environments.
- Non-isolated topology delivers high efficiency conversion between two DC bus voltages sharing a common ground.
- Compact and robust aluminium housing with a weight of 2.25kg, suitable for fixed mounting in confined spaces.
- Designed for use in dual-voltage vehicle electrical systems, marine applications and off-grid DC distribution boards.
- Victron Orion range is widely supported across the Victron ecosystem, compatible with monitoring and system integration where applicable.
Product Overview
The Orion IP67 12/24-50A operates as a non-isolated step-up DC-DC converter. Non-isolated means the input and output share a common ground reference, which is standard practice in many vehicle and marine dual-voltage systems. This topology allows for high efficiency and a compact form factor compared to fully isolated designs, but it does require that both the source and load systems share the same ground. Installers should confirm ground architecture before specifying this unit.
The IP67 rating is a practical advantage in installations where the converter cannot be located in a fully protected enclosure. It can withstand dust ingress completely and temporary immersion in water up to 1 metre for 30 minutes, making it suitable for under-bonnet, bilge-adjacent or exposed panel installations. At 1200W continuous output, this unit is capable of supplying substantial 24V loads from a 12V source battery bank or alternator feed.
Specifications
- SKU: ORI122421226
- Input voltage: 12V DC
- Output voltage: 24V DC
- Output current: 50A continuous
- Output power: 1200W
- Topology: Non-isolated
- IP rating: IP67
- Weight: 2.25kg
- GTIN: 8719076048534
Applications
- Dual-voltage vehicle electrical systems where a 24V load must be powered from a 12V vehicle battery or alternator.
- Marine installations requiring a sealed 24V supply derived from a 12V house bank.
- Off-grid DC distribution systems with mixed 12V and 24V equipment.
- Commercial vehicle conversions, including ambulances, emergency vehicles and specialist transport, where 24V ancillary equipment is powered from a 12V chassis supply.
- Motorhome and campervan builds requiring a stepped-up voltage rail for specific appliances or inverters.
What Is Included
- 1x Victron Orion IP67 12/24-50A (1200W) DC-DC Converter
Installation Notes
This unit should be installed by a qualified 12V or marine electrician familiar with DC power systems. As a non-isolated converter, both the source and output circuits share a common ground; confirm system grounding arrangements before installation to avoid ground loop issues or equipment damage. Ensure input cabling is rated for the full input current draw, which will exceed 50A at 12V input. The IP67 rating permits exposure to moisture but the unit should still be mounted to allow adequate heat dissipation. Follow Victron's wiring guidelines and local electrical regulations throughout.
