Description

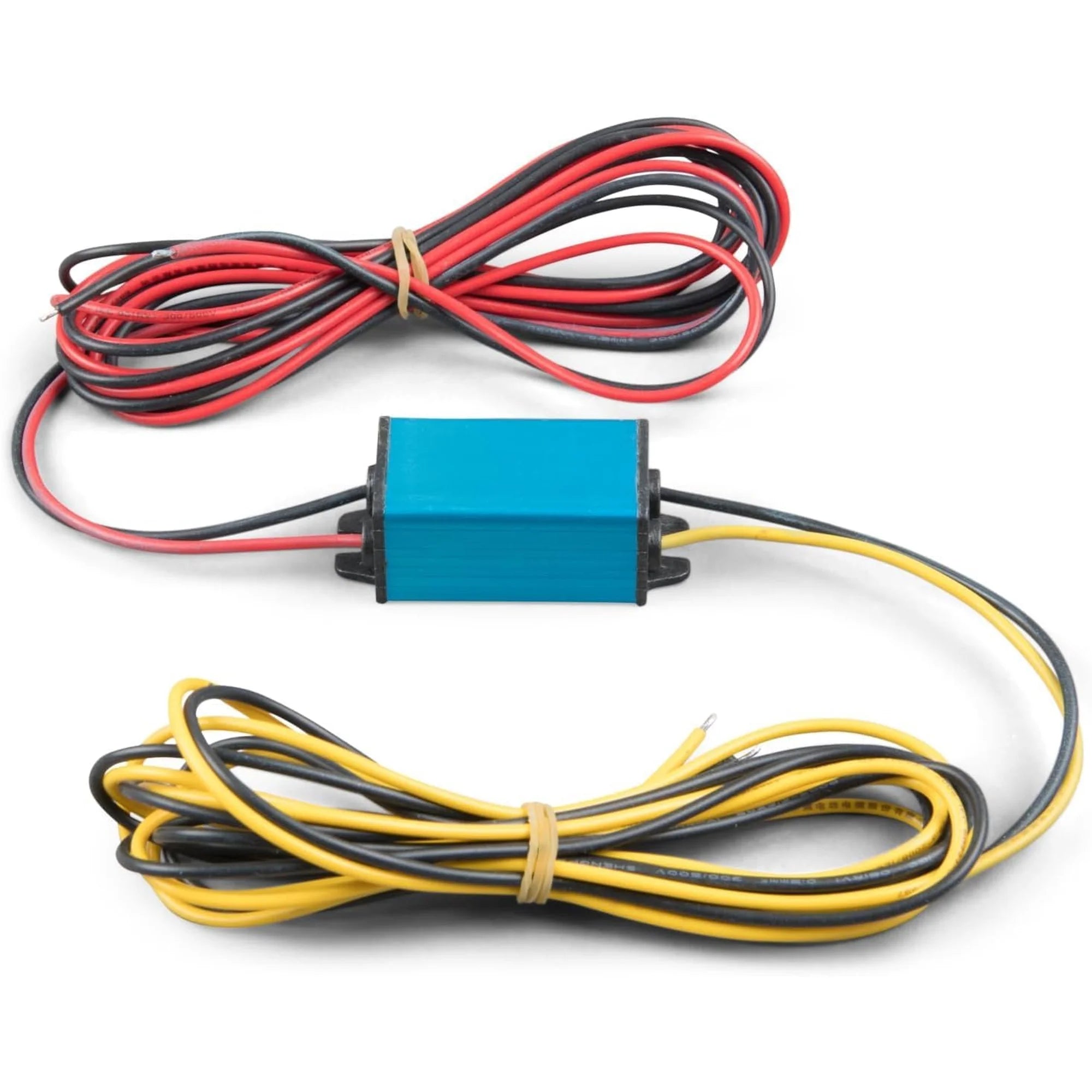

xVictron Orion IP67 24/12-5A (60W) Non-Isolated DC-DC Converter
The Victron Orion IP67 24/12-5A is a non-isolated DC-DC converter that steps a 24V DC input down to a 12V DC output at up to 5A (60W). It is designed for mobile, marine and off-grid installations where a stable 12V supply is needed from a 24V system, and where exposure to moisture or dust is a real concern.
Key Features
- Input voltage: 24V nominal, with a wide input range suitable for real-world battery systems.
- Output: 12V DC at up to 5A continuous, providing 60W of regulated power.
- IP67 rated enclosure: fully dust-tight and protected against temporary immersion in water, making it suitable for exposed or damp locations.
- Non-isolated design: compact and efficient, appropriate for applications where input and output share a common ground.
- Lightweight at 0.1kg: easy to mount in tight spaces without adding significant load.
- No moving parts and no fan: silent operation with no maintenance requirements.
Product Overview
The Orion IP67 range from Victron Energy is built for environments where a standard open-frame or plastic-encased converter would not survive. The IP67 rating means the unit is fully sealed against dust ingress and can withstand submersion in up to 1 metre of water for 30 minutes. This makes it a practical choice for under-bonnet vehicle installations, boat bilge areas, caravans, and any outdoor enclosure subject to condensation or rain.
The non-isolated topology keeps the design simple and efficient. Because the input and output share a common ground reference, this converter is well suited to powering 12V accessories, lighting, or control electronics from a 24V vehicle or battery bank. It is not appropriate for applications that require galvanic isolation between the two voltage rails. At 60W output, it covers a useful range of auxiliary loads without requiring a larger, more expensive unit.
Specifications
- SKU: ORI241205260
- Input voltage: 24V DC (nominal)
- Output voltage: 12V DC
- Output current: 5A continuous
- Output power: 60W
- Isolation: Non-isolated
- IP rating: IP67
- Weight: 0.1kg
- GTIN: 8719076048428
Applications
- Powering 12V accessories from a 24V vehicle or truck electrical system.
- Supplying 12V control electronics or instrumentation from a 24V off-grid battery bank.
- Marine installations where a 24V house bank needs to feed 12V equipment in damp or exposed locations.
- Caravan and motorhome auxiliary circuits where a 24V chassis system is present.
- Outdoor enclosures and industrial mobile equipment subject to water ingress risk.
What Is Included
- 1x Victron Orion IP67 24/12-5A (60W) DC-DC converter
Installation Notes
This unit should be installed by a competent electrician or qualified auto-electrician familiar with DC systems. Ensure correct polarity and that the input supply is fused appropriately close to the source. The non-isolated design means input and output grounds are common: verify this is compatible with your system before installation. Although the enclosure is IP67 rated, the cable entry points must be properly sealed to maintain that protection in service.
